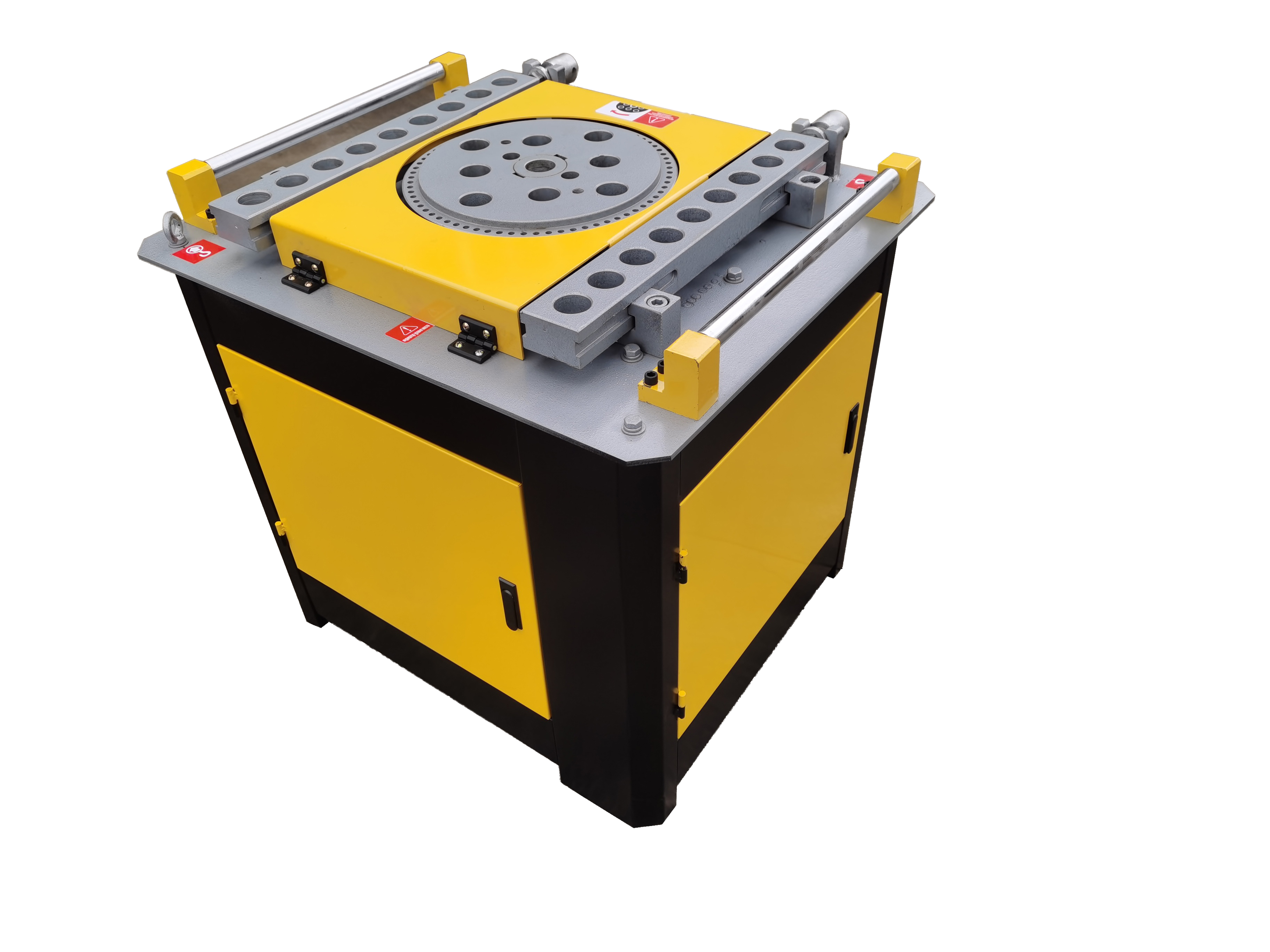

This rebar bender cutter, model GW42E, is designed with a fully enclosed gearbox to prevent oil leakage and ensure a longer service life.
This Steel bar bending machine is made of high-quality 45 # steel and features a 3mm thick shell, which makes it heavy-duty and durable. The dustproof brake motor ensures safety and the limit switch provides additional protection.
The machine also has a movable saddle and pin type disc, which makes it easy to operate and bend steel bars accurately.
Overall, ACEASOK steel bar bending machine is a great reber bending tool. As a professional bending machine manufacturer, ASOK ensures the quality of the product
•GW42E rebar Bender Cutter adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
•GW42E Steel Bar Bending Machine's Gears,gear shafts,working disk,stop gauge,saddles,pile heads and pile head bushes made of high-quality 45# steel with proper heat treatment(quenching/tempering/high frequency)and 3mm thick external case to ensure high performances also under heavy loads and long working life.
•Dust proof brake motor and two limit switch to reber bending tool ensure the accuracy of the bending angle also after stopping and restarting.
•Insert pin type disk and movable saddles for GW42E bar bending machine 32mm a precise adjusting of the bending angle.
| MODEL/OPERATION | GW42E | Automatic (Brake motor) |
| TENSILE STRENGTH | Kg/mm2 45 | Kg/mm2 65 |
| STEEL BAR DIAMETER | 6-（32-40）mm | |
| MOTOR POWER | 3 KW-4.0HP | 3-Phase 380V /50Hz |
| SPEED OF WORKING DISK | 5-15 R/min | |
| WEIGHT | 290 Kg | |
| DIMENSIONS (L*W*H) | 950*850*990 mm | |
| CERTIFICATION | CE | |

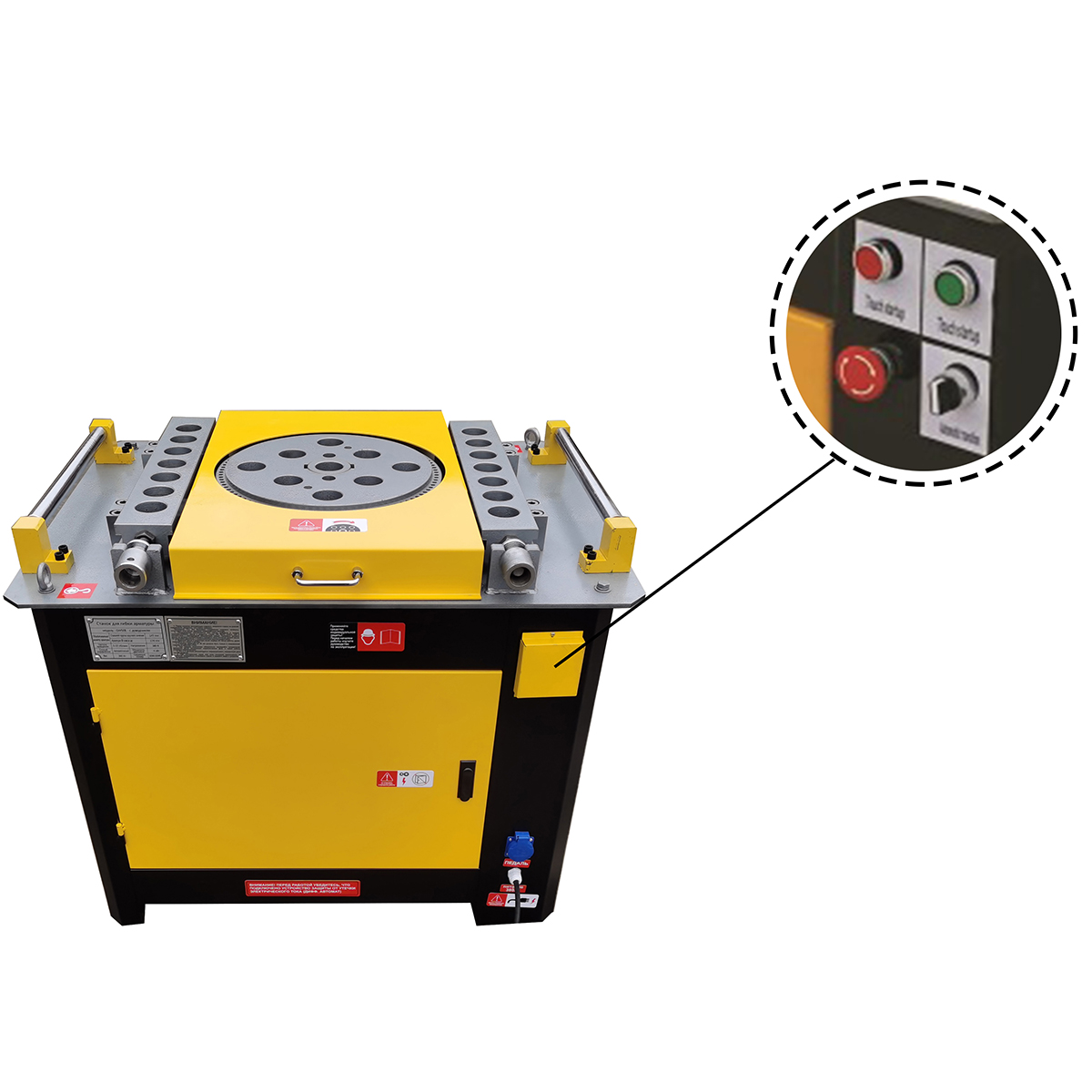

Introduction to GW42E Steel Bar Bending Machine

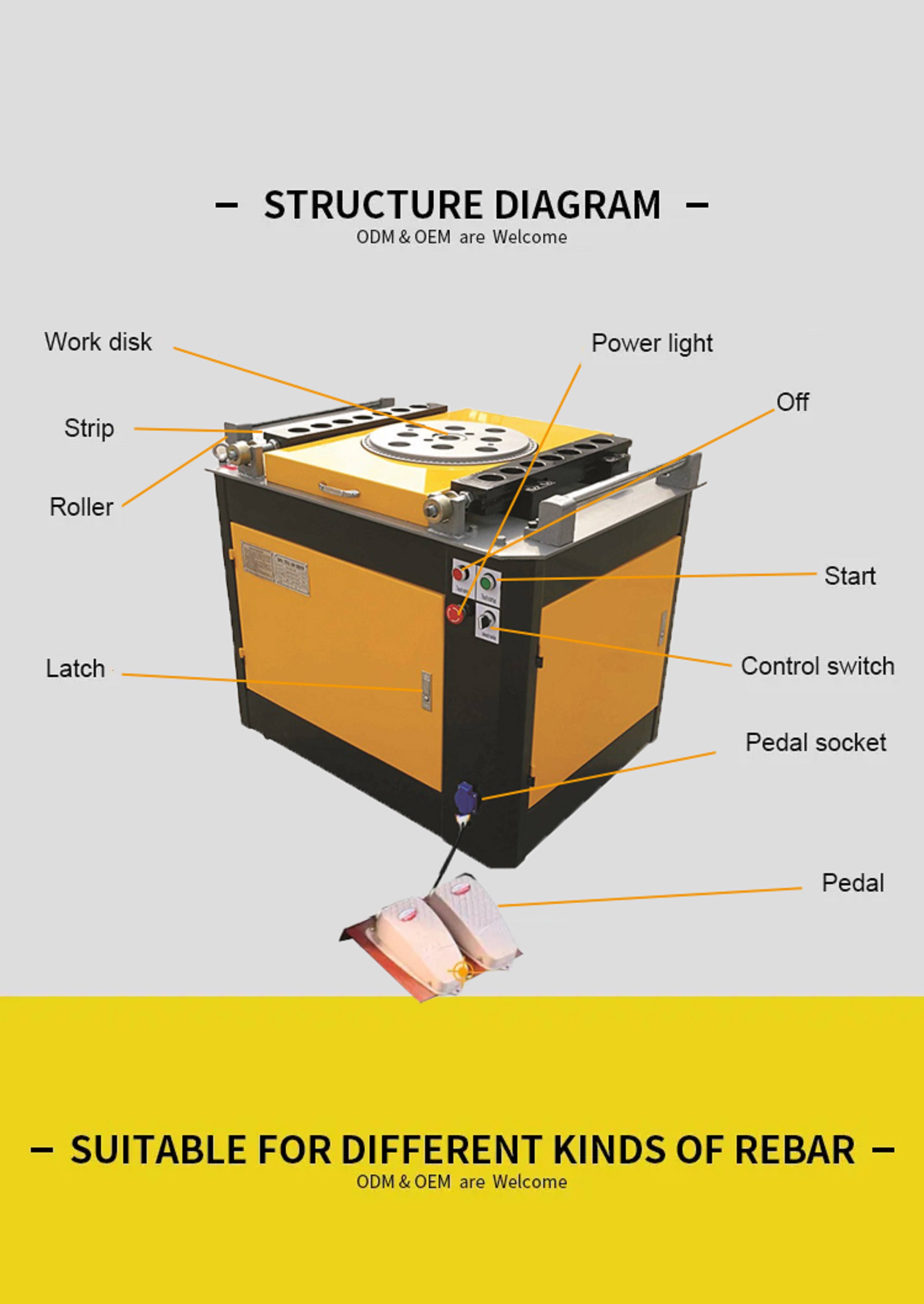

The position and overall layout of various parts

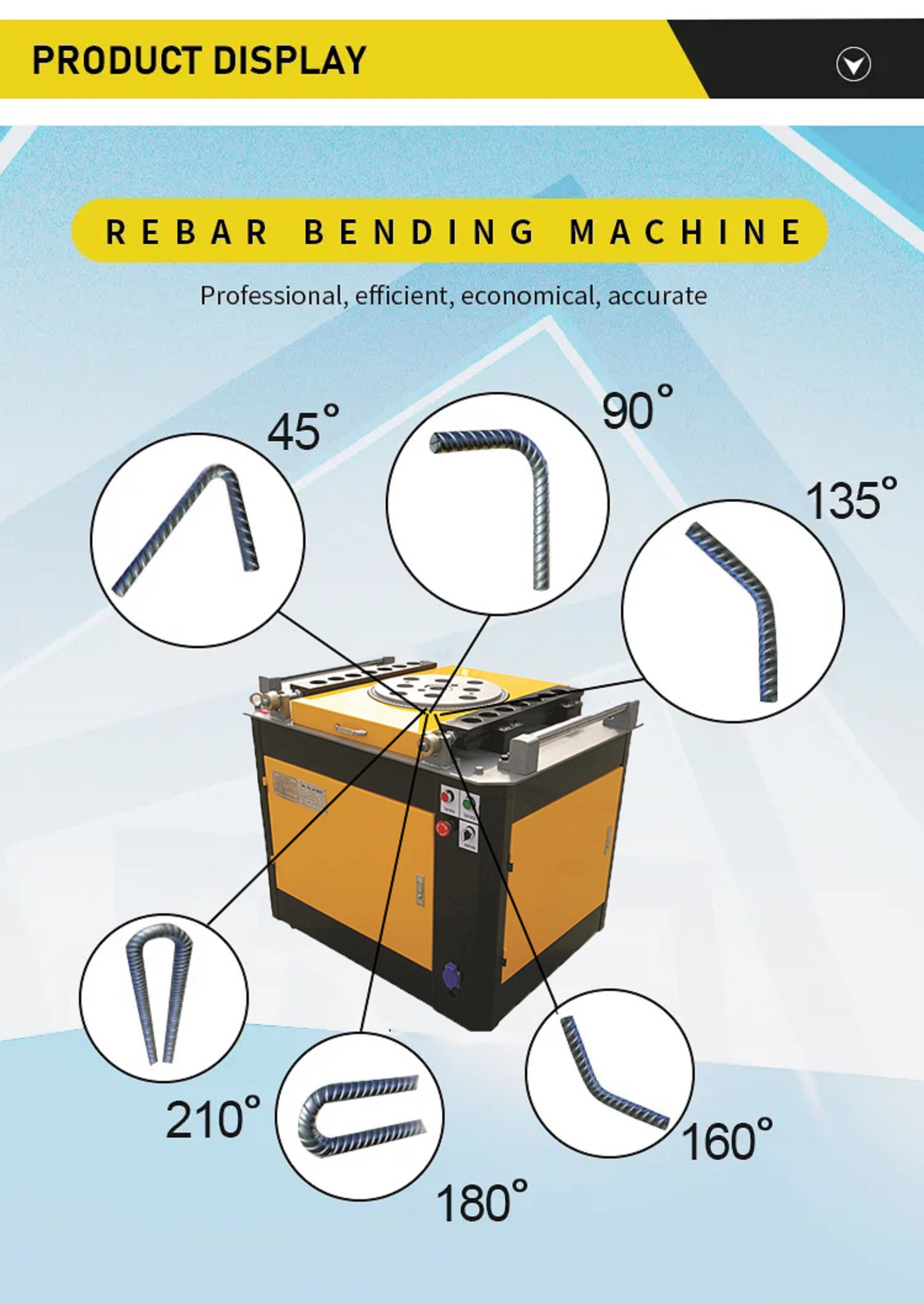

Introduction to GW42E Bending Angle

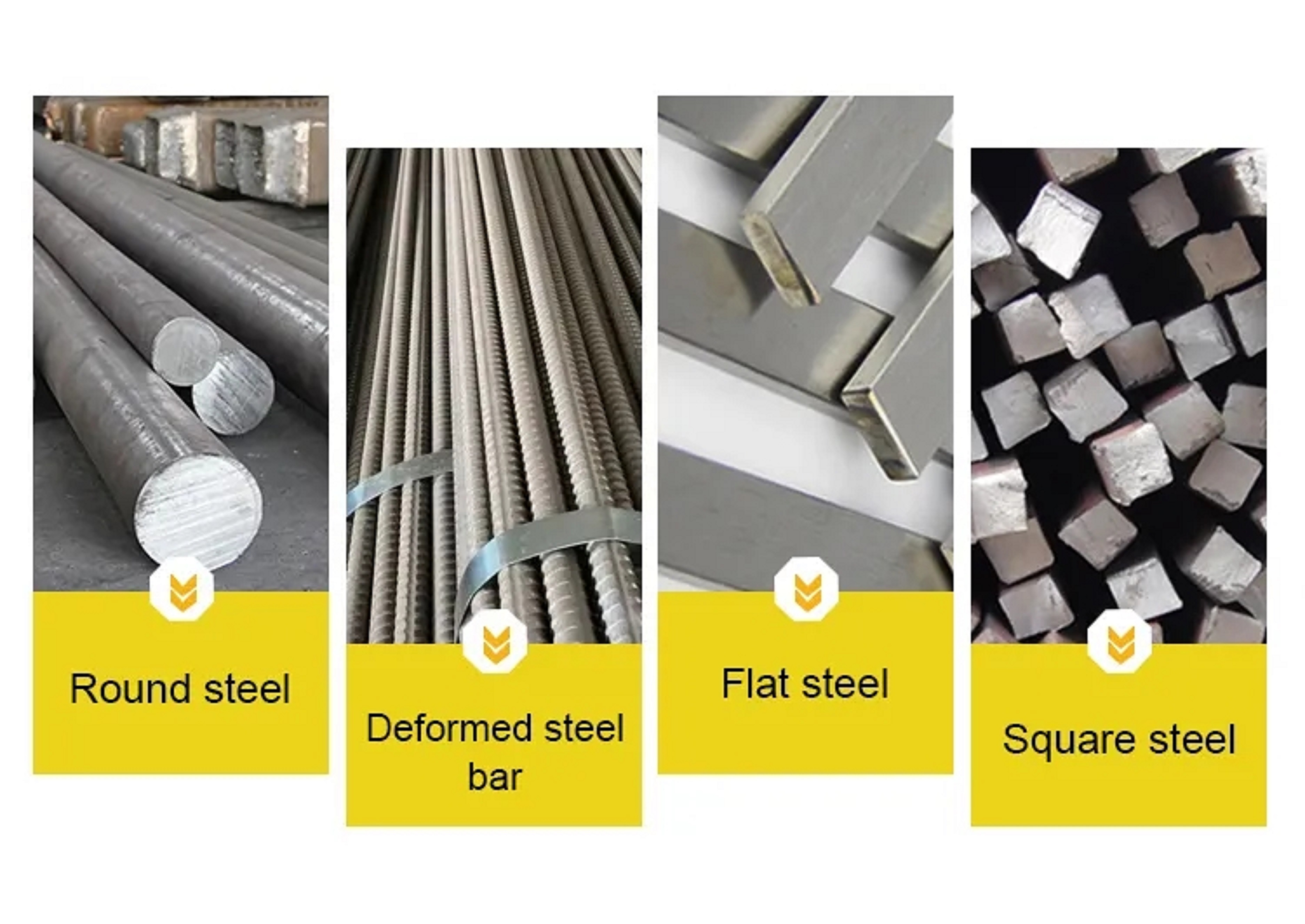

Suitable for various types of bending angles
