1
production process
Strictly control and pay attention to every detail
2
Package
Carton packaging, neat and uniform
3

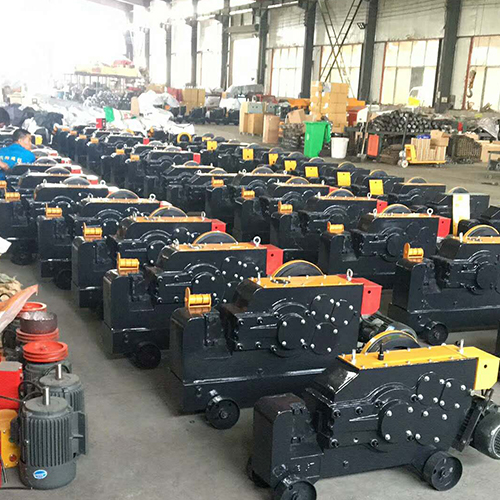

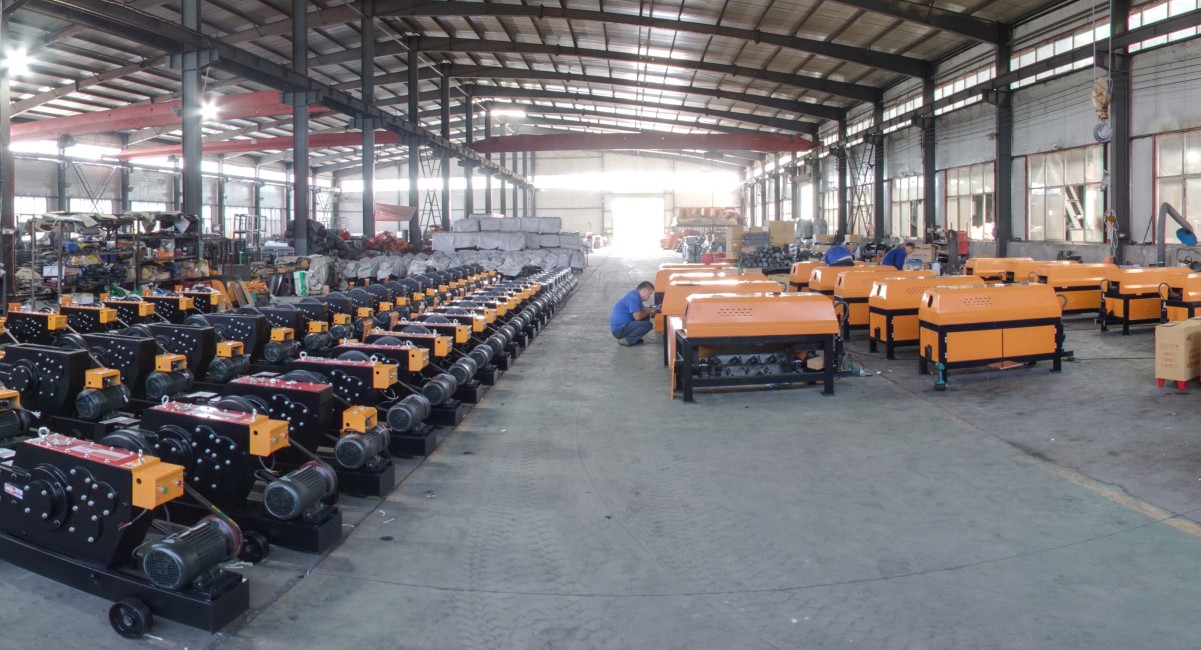

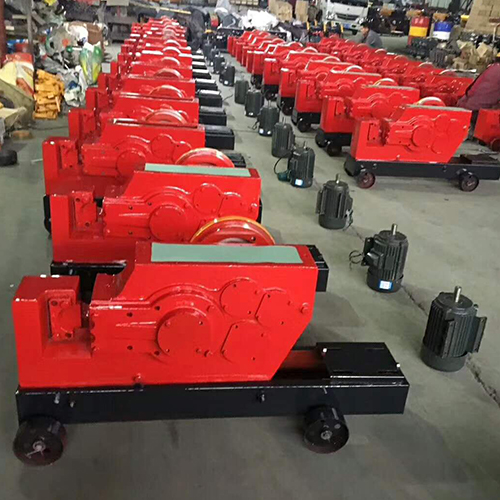

Factory area
2000㎡ super large area, mass production
High quality crankshaft
++
Steel bar cutter / steel cutting machine
|
Model
| GQ40A
| GQ40B
| GQ40E
|
Cutting rebar Dia (Plain Carbon Steel)
| Ф6-30mm
| Ф6-40mm
| Ф6-40mm
|
Ⅱgrade screw thread rebar Dia:
| Ф6-22mm
| Ф6-32mm
| Ф6-32mm
|
Flat steel max. diameter:
| 60×10mm
| 70×15mm
| 70×15mm
|
Cutting square steel max. spec(Q235A)
| 22×22mm
| 32×32mm
| 32×32mm
|
Angle steel max. spec :
| 40×40mm
| 50×50mm
| 50×50mm
|
Cutting quantity:
| 32t/min
| 32t/min
| 32t/min
|
Motor spec: model:
| Y90L-2 2.2KW
| Y100L-2 3KW
| Y100L-2 3KW
|
Voltage / speed
| 380V 2800rpm
| 380V 2800rpm
| 380V 2800rpm
|
Net weight:
| 290kgs
| 320kgs
| 340kgs
|
Gross weight:
| 315kgs
| 345kgs
| 360kgs
|
Packing size:
| 1280*500*860mm
| 1280*500*860mm
| 1280*500*860mm
|
（Please feel free to contact us if you need detailed consultation on parameters and professional questions.）
Product details (text introduction)

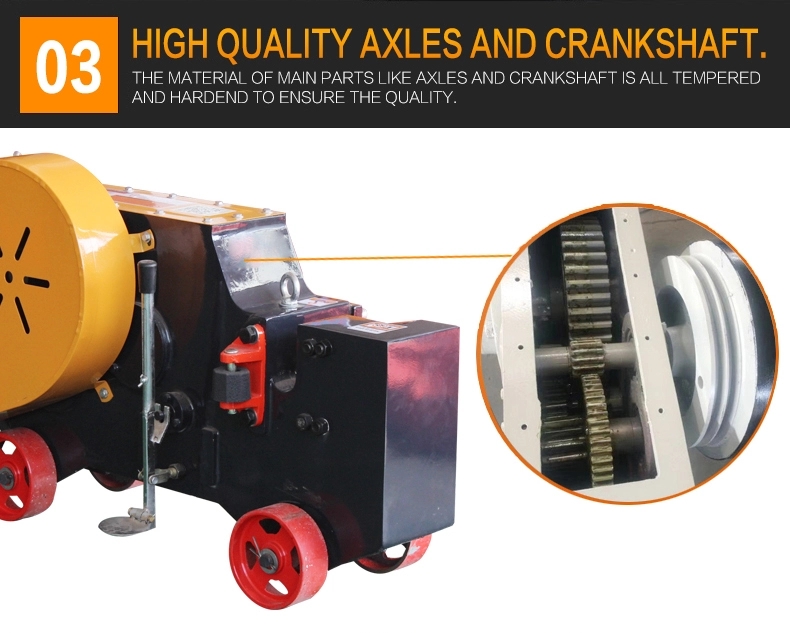

High-Quality Construction: The gears, center gear, connecting rod, crankshaft, shafts 1, 2, 3, and blades are all constructed from premium structural or alloy steel. These components have undergone meticulous heat treatment processes such as quenching, tempering, or high frequency treatment, ensuring durability and resilience in the face of heavy-duty operations.
Precision in Cutting Operations: The thread pattern and adjustable limiter contribute to the machine's accuracy and stability during cutting operations. You can trust this machine to deliver precise cuts consistently.
Heavy-Load Capacity: The connecting rod is ingeniously separated from the gear, providing the machine with the ability to withstand heavy-load work effortlessly. This design feature ensures durability and longevity even under challenging working conditions.

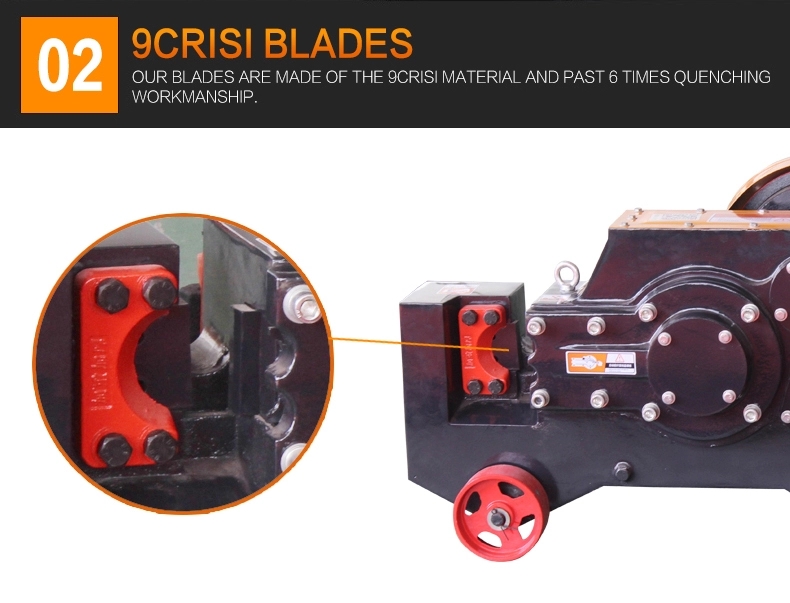

Efficient Blade Usage: High-strength blades are employed, guaranteeing high efficiency without the need for frequent replacements of various standard steel bars. This not only enhances productivity but also minimizes downtime.
Enhanced Speed and Service Life: The utilization of large gears not only improves driving speed but also extends the overall service life of the machine. This ensures sustained performance over an extended period.
Worry-Free Maintenance:The GQ40E/B Steel Bar Cutting Machine is designed with user convenience in mind. The main components boast a lifespan of 3 years, and wearing parts have a lifespan of 1 year. With nearly zero maintenance costs, you can focus on your operations without the hassle of frequent upkeep.
Labor-Saving Design:Equipped to cut steel bars of different sizes without the need for blade changes, this machine is a labor-saving powerhouse. It streamlines your cutting processes, improving efficiency and reducing the need for manual adjustments.
