Professional GQ50E Rebar cutting machine manufacturers
The ACE Rebar cutting machine have different models of steel bar cutting machine, Rebar cutter machine GQ40A,GQ40B, GQ42E, GQ50,GQ50E, which can cutting round steel bar with diameter 6-30mm, 6-40mm, 6-42mm, 6-45mm and deformed steel bar 6-22mm, 6-32mm,6-36mm. This machine can be applied to cut the normal carbon steel rod, hot rolled steel, deformed bar, flat steel, square steel and angle steel in machine processing and construction projects.
COMPONENTS :

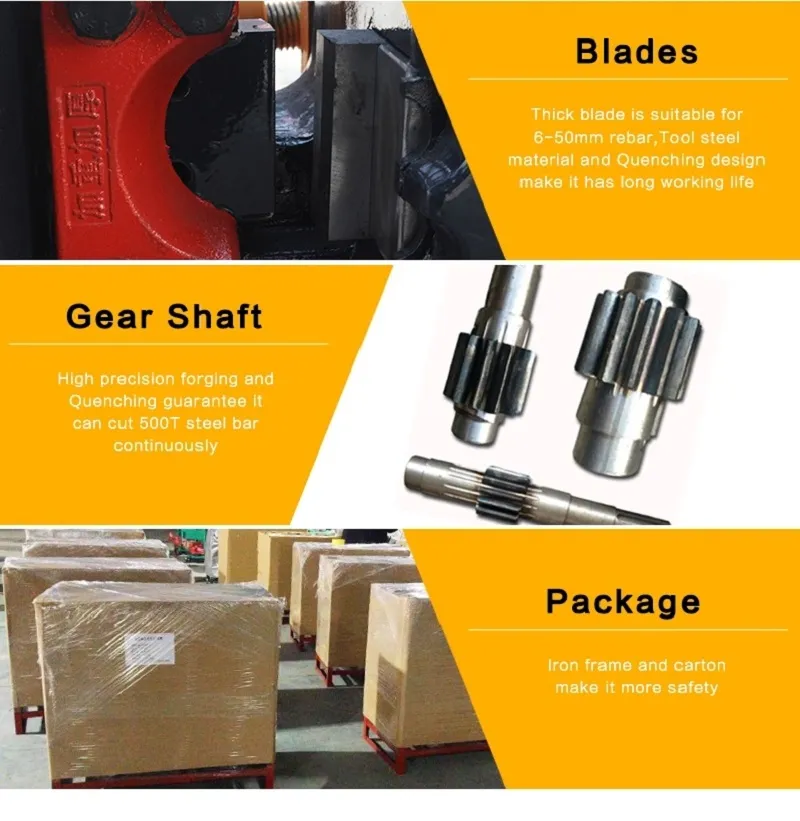

GEAR: cast steel

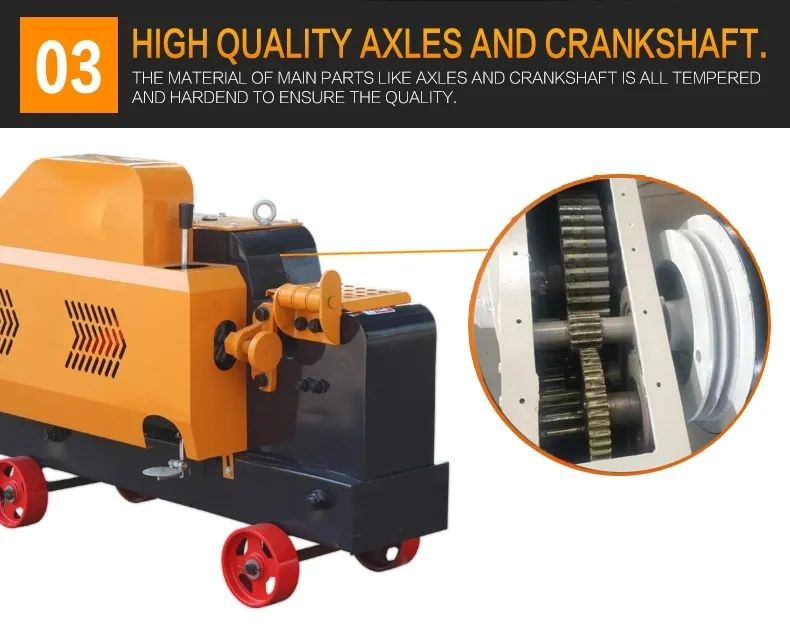

CRANKSHAFT: cast steel
SHAFT 1, SHAFT 2 and SHAFT 3: C45 steel
CONNECTION ROD: cast steel

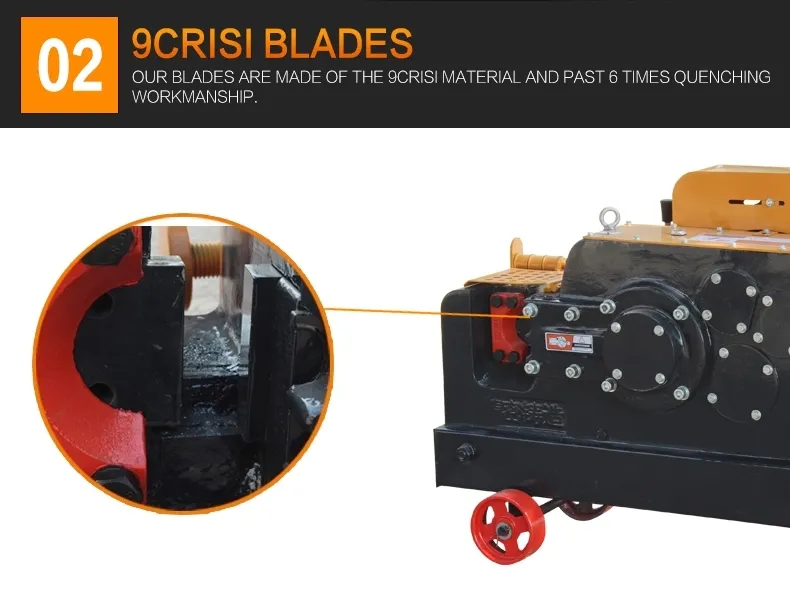

BLADE: cast steel

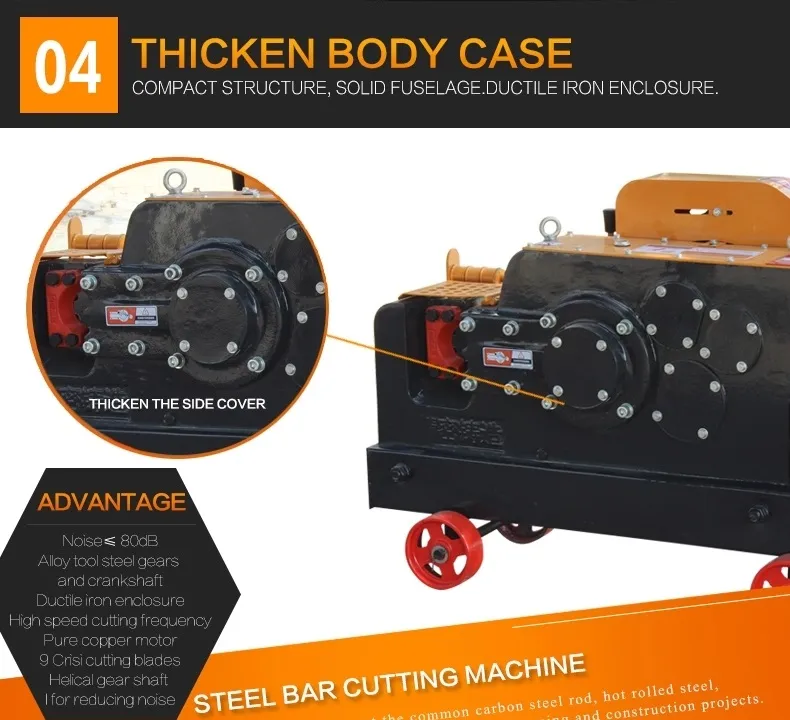

EXTERNAL CASE: Ductile Iron
*All the main components undergone the required heat treatment (quenching, tempering or high frequency).
Professional GQ50E Rebar cutting machine/Rebar cutter/steel bar cutter manufacturers
1. Rebar cutting machine of GEAR, CENTRAL GEAR, CONNECTION ROD,CRANKSHAFT, SHAFTS 1,2,3 and BLADES are made of high quality STRUCTURAL STEEL or ALLOY STEEL which undergone the required heat treatment (quenching, tempering or high frequency).
2. The thread type and ADJUSTABLE STOP GAUGE ensure the ACCURACY and STABILITY of cutting operations.
3. The separation of the connecting rod from the gear enable the machine to UNDER TAKE HEAVY-DUTY WORKS.
4. Adopted HIGH and RESISTENT BLADES in order to ensure high efficency with all standards of steel bars without need to change them.
5. The adoption of the LARGE GEAR improve the driving speed as well as the working life.
Worry-saving: The main components last for 3 years, and the wear parts can last for 1 years, so it wil cost you almost nothing for maintenance.
Labor-saving: One machine to cut different sizes of steel bar without changing the blade
Rebar cutter / Steel bar cutter | ||

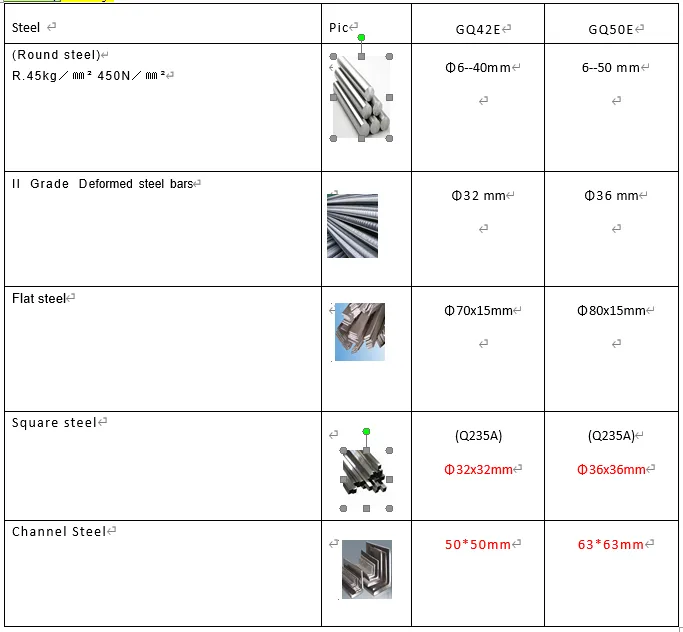

Model | GQ42E | GQ50E |
Cutting rebar Dia (Plain Carbon Steel) | Ф6-40mm | Ф6-42mm |
Ⅱgrade screw thread rebar Dia: | Ф6-32mm | Ф6-32mm |
Flat steel max. diameter: | 70×15mm | 80×18mm |
Cutting square steel max. spec(Q235A) | 32×32mm | 40×40mm |
Angle steel max. spec : | 50×50mm | 63x63mm |
Cutting quantity: | 32t/min | 28t/min |

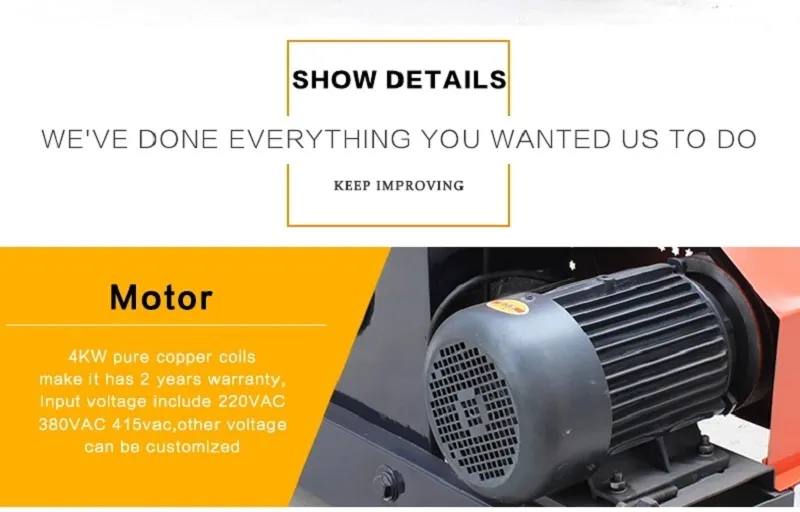

Motor spec: model: | Y100L-2 3KW | Y112M-2 4KW |
Voltage / speed | 380V 2800rpm | 380V 2800rpm |
Net weight: | 420kgs | 485kgs |
Gross weight: | 435kgs | 500kgs |
Packing size: | 1370*540*940mm | 1450*600*1020mm |
