Steel Bar Cutter Bender
VR

Best Quality GQ40A steel bar cutting machine Factory /iron rod cutting machine /rebar bending and cutting machine

Main Feature:

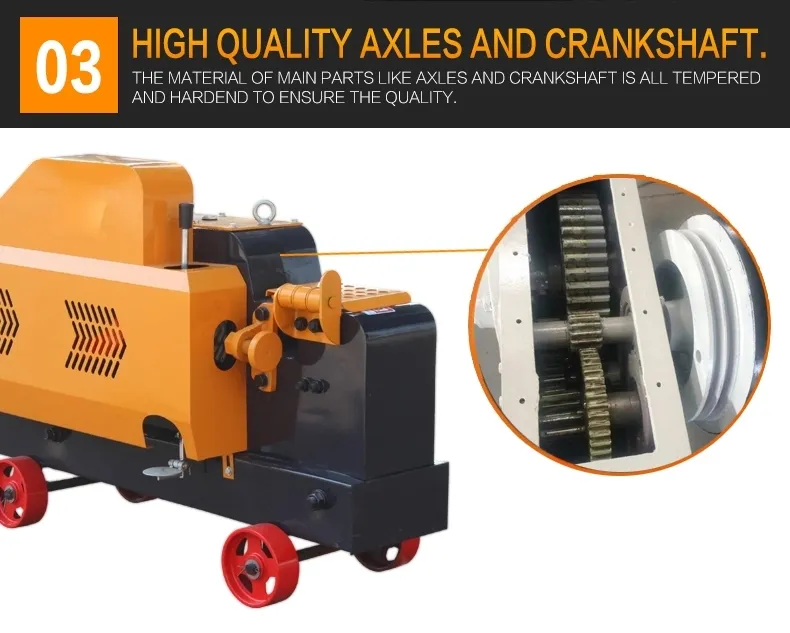

1. Steel bar cutting machine of GEAR, CENTRAL GEAR, CONNECTION ROD,CRANKSHAFT, SHAFTS 1,2,3 and BLADES are made of high quality STRUCTURAL STEEL or ALLOY STEEL which undergone the required heat treatment (quenching, tempering or high     frequency).

2. The thread type and ADJUSTABLE STOP GAUGE ensure the ACCURACY and STABILITY of cutting operations.

3. The separation of the connecting rod from the gear enable the machine to UNDER TAKE HEAVY-DUTY WORKS.

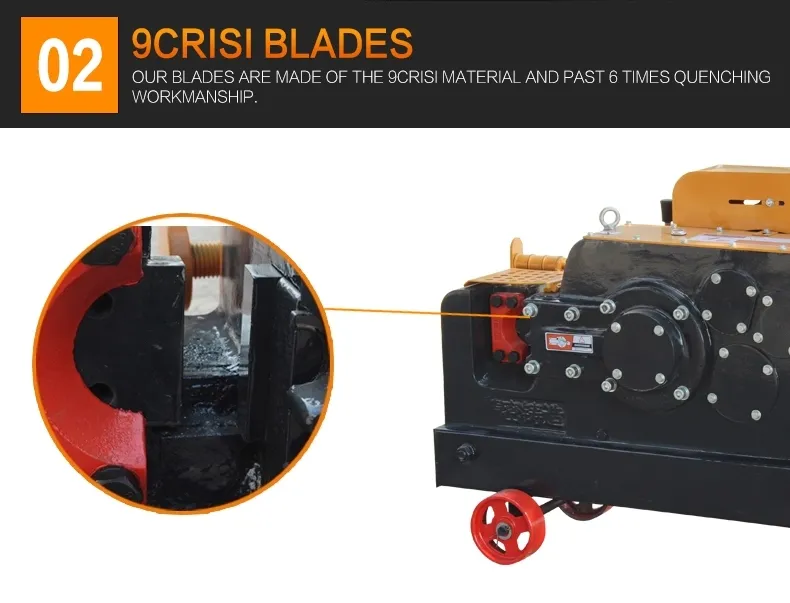

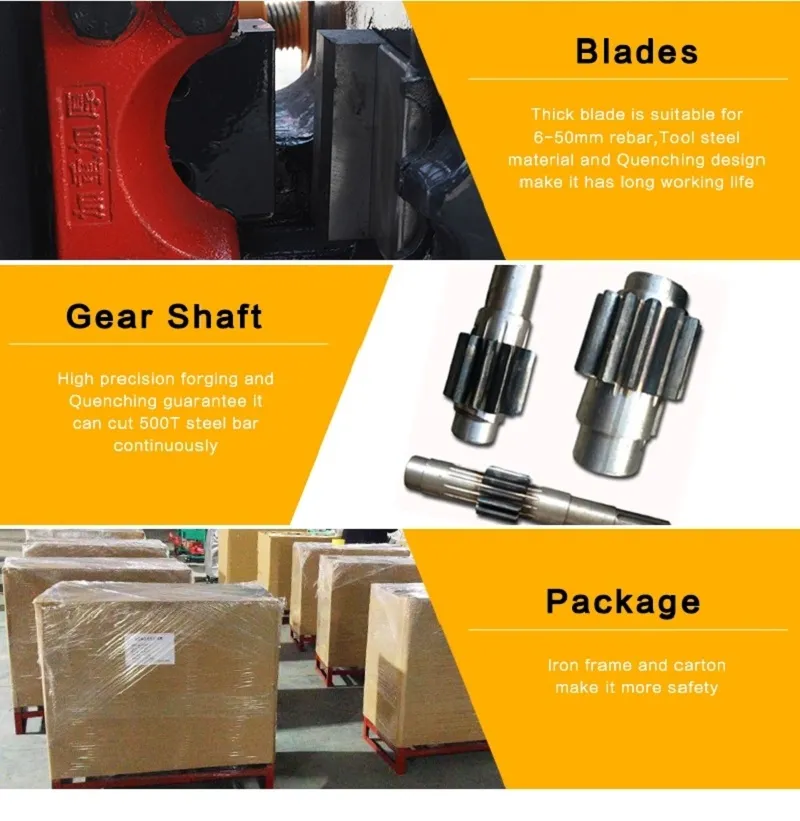

4. Adopted HIGH and RESISTENT BLADES in order to ensure high efficency with all standards of steel bars without need to change them.

5. The adoption of the LARGE GEAR improve the driving speed as well as the working life.


Worry-saving: The main components last for 3 years, and the wear parts can last for 1 years, so it wil cost you almost nothing for maintenance.

Labor-saving: One machine to cut different sizes of steel bar without changing the blade


Specification Date :

Steel bar cutter   / steel cutting machine

Model

GQ40A

GQ40B

GQ40E

Cutting   rebar Dia (Plain Carbon Steel)

Ф6-30mm

Ф6-40mm

Ф6-40mm

grade screw    thread  rebar Dia:

Ф6-25mm

Ф6-32mm

Ф6-32mm

Flat   steel max. diameter:

60×10mm

70×15mm

70×15mm

Cutting   square steel max. spec(Q235A)

22×22mm

32×32mm

32×32mm

Angle   steel max. spec :

40×40mm

50×50mm

50×50mm

Cutting   quantity:

32t/min

32t/min

32t/min

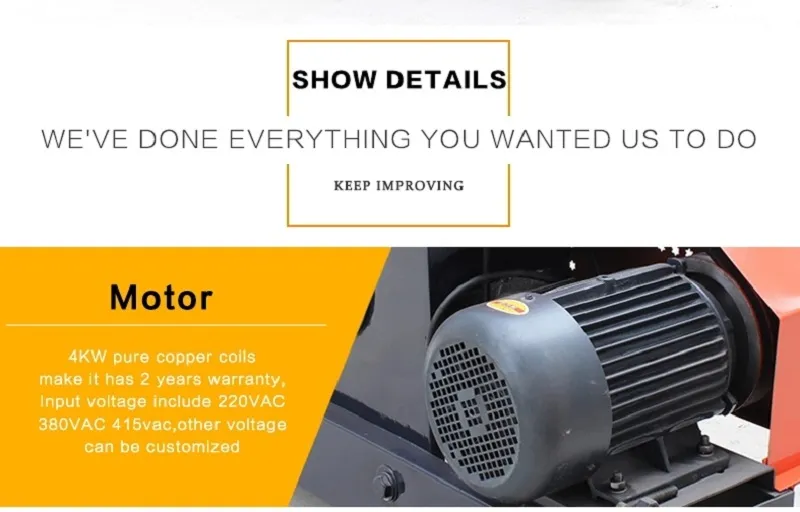

Motor   spec: model:

Y90L-2   2.2KW

Y100L-2   3KW

Y100L-2   3KW

Voltage   / speed

380V   2800rpm

380V   2800rpm

380V   2800rpm

Net   weight:

290kgs

320kgs

340kgs

Gross weight:

315kgs

345kgs

360kgs

Packing size:

1280*500*860mm

1280*500*860mm

1280*500*860mm

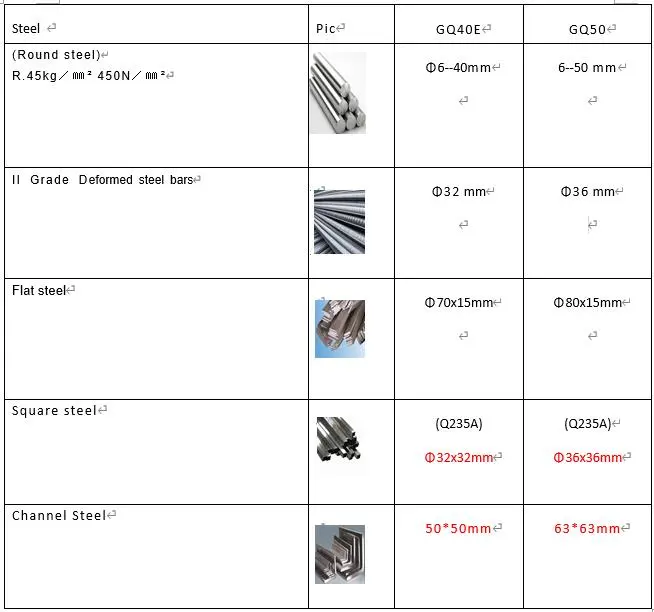

Cutting Capacity :


 Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than φ22mm


Diameter   of steel bar (mm)

48

1013

1418

1922

More than 22

Cutting   off piece number each time

6

5

3

2

1

GQ40

6

5

3

2

1

GQ50

8

5

4

3

2


Product Detail :
