plate compactor
A construction equipment supplier of construction machinery solutions for 25 years.
Language
A construction equipment supplier of construction machinery solutions for 25 years.
ASOK is a professional manufacturer of concrete vibrating diesel plate compactors. The compactor is available in a 120kg weight and is powered by either petrol or diesel engines. It is designed with ACE High-Technology and is CE certified.
Some key features of the compactor include easy handling, high performance, durability, easy operation, user-friendly design, and low maintenance. It also has an adjustable handle for easier operation and built-in wheels for easy transportation. The sealed belt cover prevents sand and soil from getting inside.
The compactor is suitable for compacting sand, gravel, grit, and other granular materials in various construction, civil, road engineering, and gardening projects. It offers a centrifugal force of 20kn. The compactor also comes with optional engines such as HONDA GX160 5.5HP, Diesel Engine 170F 4.0HP, ROBIN EY20 5.0HP, and Loncin GF200 6.5HP.

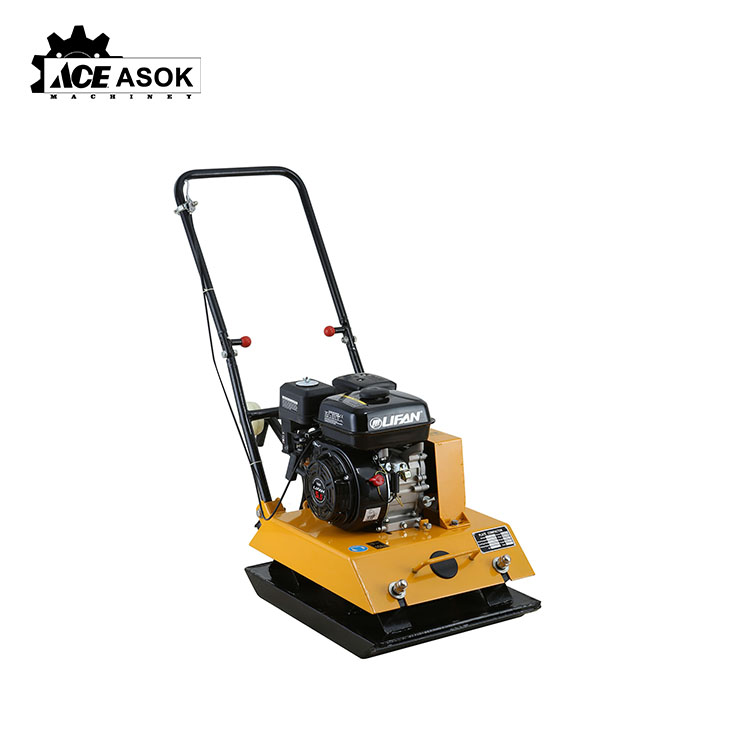

120kgs Concrete Vibrating Diesel Plate Compactor
ACE High-Technology Designed CE certificated Petrol or diesel-powered. It is easy to handle ,have high performance, highly durable, easy operation, user friendly low maintenance design.
110KGS Plate compactor with 20kn centrifugal force
Adjustable handle makes operation easiler.
Bilt-in wheel for easy transport
Sealed belt cover to prevent sand and soil in
Application:Compact and last design in plate compactors, suitable for sand, gravel, grit, granular materials in the areas of construction, civil or road engineering gardening….etc most of compaction work .
Optional Engine:

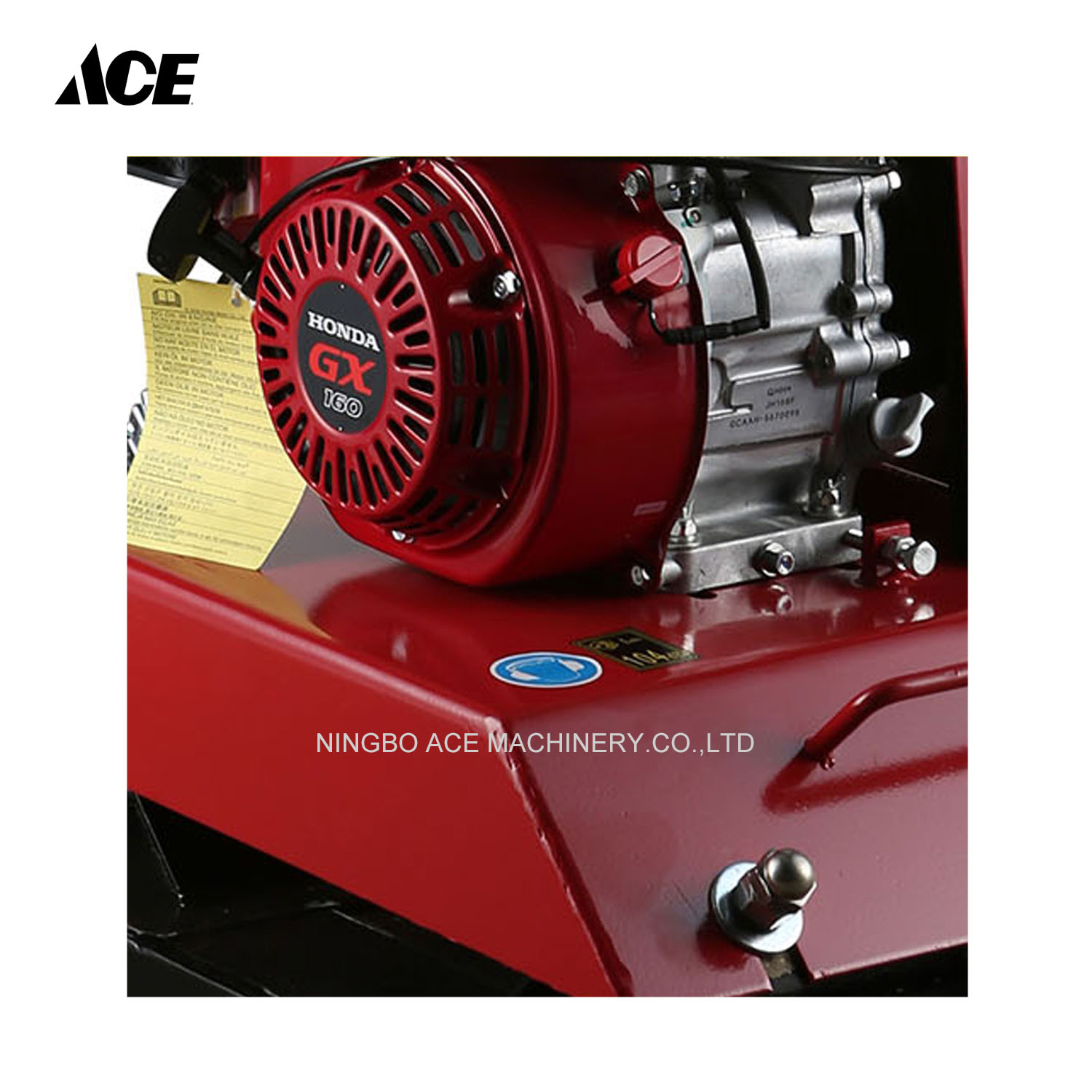

HONDA GX160 5.5HP

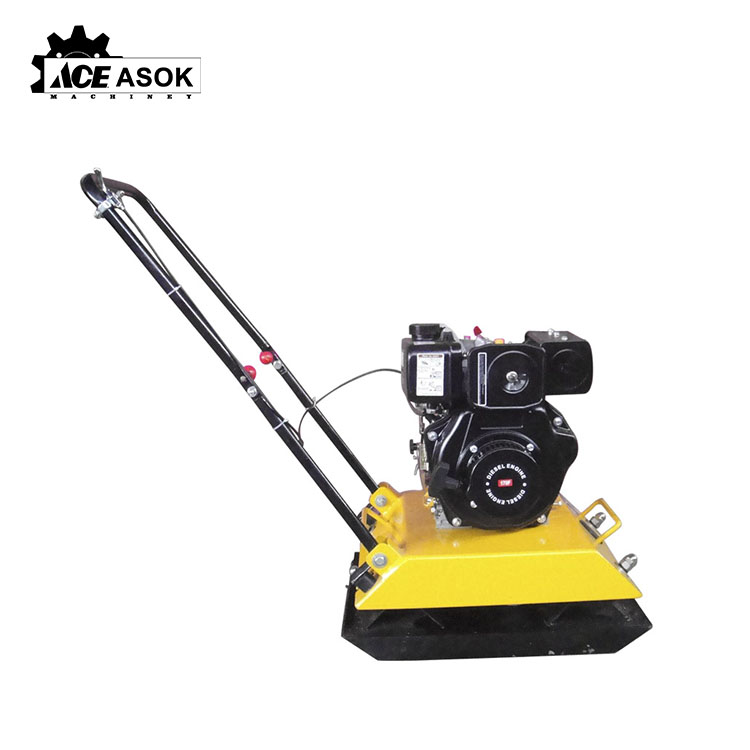

Diesel Engine 170F 4.0HP
ROBIN EY20 5.0HP
Loncin GF200 6.5HP
More Products Specification | |||||
Model | C-120HD | C-120RB | C-120SB | C-120BS | C-120LC |
Engine type | Air-cooled.4-cycle,single cylinder | ||||
Model | Honda GX160 | Robin EY20 | Subaru EX17 | Briggs& Stratton 1062 | LOCIN GF200 |
power of engine | 5.5HP | 5.0HP | 5.5HP | 5.0HP | 6.5HP |
Frequency | 5800 | ||||
Centrifugal Force | 20.0KN | ||||
Working of speed | 20 m/min (16 in/s) | ||||
Plate size | 660*510 mm | ||||
N.W/G.W.: | 110KGS/ 125KGS | ||||
Packing size | 720*560*710mm | ||||
The machine is capable of handling various materials such as sand, gravel, and granular materials, making it applicable to a wide range of projects.
The vibration isolation reversible handle reduces operator fatigue, making it comfortable to use even during long working hours. The handle can be conveniently placed to suit the operator's preference, further enhancing comfort and reducing strain.
To ensure consistent and even compression force on the entire substrate, the machine features a fully enclosed exciter installed on the ceiling. This design helps distribute the force evenly and ensures smooth and uniform troweling.
Furthermore, the heavy-duty shock absorption support of the machine effectively reduces upper engine vibration, enhancing stability and control during operation.
