plate compactor
VR
DESCRIPTION

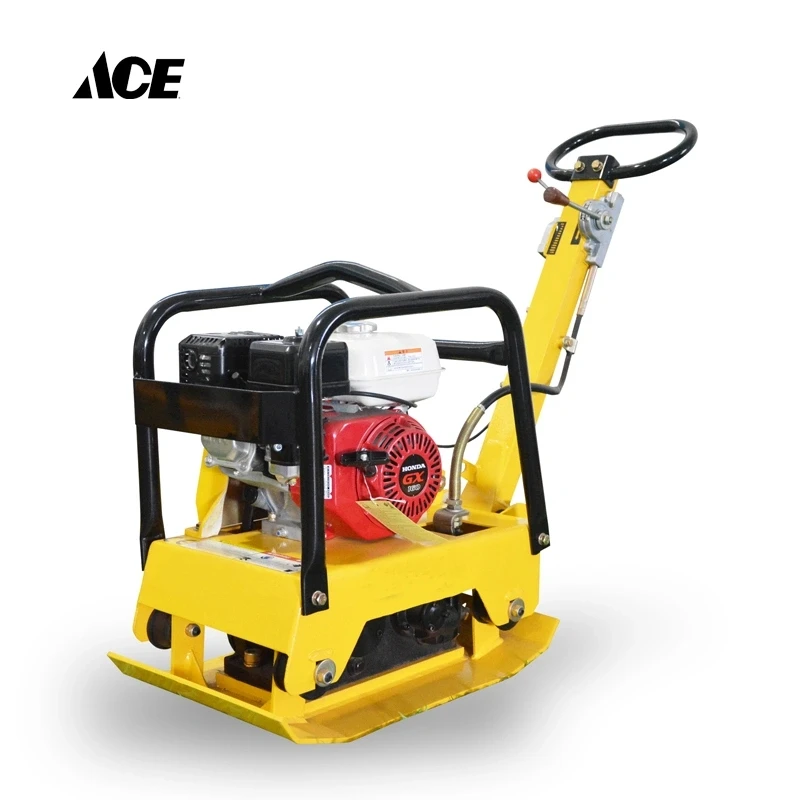

125kg with 25.0kn Reversible plate compactor


Plate compactor increases productivity because it provide most optional performance.  ACE has many plate compactor models for different construction jobs, which differ in size, power and operating mechanism.


125KGS Plate compactor with 25.0kn centrifugal force


Easy-to-reach located controls


Large shock mounts reduce vibration to the handle and the upper deck


Wear-resistant base plate extends life,open design reduces dirt building


Reversible plate compactor is suitable for compacting at the adges of road,abutment channel,groove in narrow trenches.


Optional Engine:

HONDA   GX160 5.5HP

Loncin GF200 6.5HP



Product Parameters


Model

C-125HD

C-125CH

C-125D

Engine

Air-cooled.4-storke,single cylinder

Engine Type

Petrol,Honda GX160

Chinese Petrol Engine

Chinese Diesel 178F

Power kw(hp)

4.0(5.5 )

4.8(6.5)

4.4(6.0)

Weight kg(lbs)

126(278)

126(278)

137(300)

Frequency vpm

4300

Centrifugal Force kN

25

Compaction Depth cm(in)

30(12)

Travel Speed cm/s(in/s)

25(10)

Efficiency m 2 /hr(fr 2 /hr)

500(5400)

Plate Size cm(in)

63*40(25*16)

Package cm(in)

75*40*93

Product Features




Easy-to-reach controls

The controls are conveniently located, allowing for easy operation and adjustment as needed



Vibration reduction

The compactor is equipped with large shock mounts that help reduce vibration to both the handle and the upper deck.



Wear-resistant base plate

The base plate is designed to be wear-resistant, extending the life of the compactor.



Product Uses

The machine is capable of handling various materials such as sand, gravel, and granular materials, making it applicable to a wide range of projects.


The vibration isolation reversible handle reduces operator fatigue, making it comfortable to use even during long working hours. The handle can be conveniently placed to suit the operator's preference, further enhancing comfort and reducing strain.


To ensure consistent and even compression force on the entire substrate, the machine features a fully enclosed exciter installed on the ceiling. This design helps distribute the force evenly and ensures smooth and uniform troweling.


Furthermore, the heavy-duty shock absorption support of the machine effectively reduces upper engine vibration, enhancing stability and control during operation.


Product Comparison


Smooth operation and multi-channel use
VS
Wider scope and multi-channel use

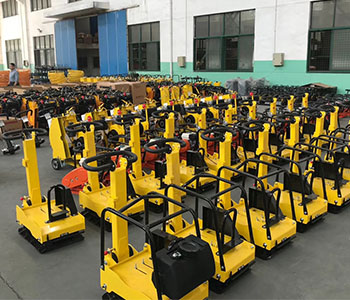

Factory Image



Arranged neatly

++

strong packing

++

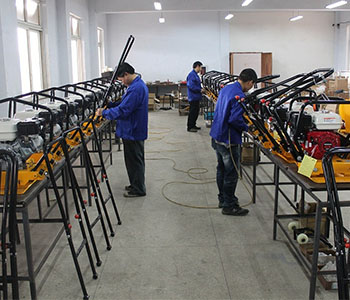

Professional labor

++


Customer Feedback



Their product is very good, I like it after learning about the details on site    - John from South Africa

++


QUESTIONS



FAQ
  • What is the average lead time?
    For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
  • Can you supply the relevant documentation?
    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
  • Do you have a minimum order quantity?
    As usually ,the mini order is base on 1~50pcs .Different product will be different .
