plate compactor
A construction equipment supplier of construction machinery solutions for 25 years.
Language
A construction equipment supplier of construction machinery solutions for 25 years.
ASOK is a professional manufacturer of flat compactors with 29 years of business experience
Reversible heavy plate compactors is well suited for use in sewer trench,general road,building,and bridge construction projects , where it is employed to compact foundations, backfills,sands,gravels,mixed soils,and do other jobs that require heavy-duty service .Using our reversible plate compactor is quite economical ,since it requires little maintenance.
Optional accessories:
1. Trolley wheel provides ease with which the plate compactor can be transported
2.Rubber mat for brick paving compaction is available
3. Q235 Cast Iron plate or A3 steel plate

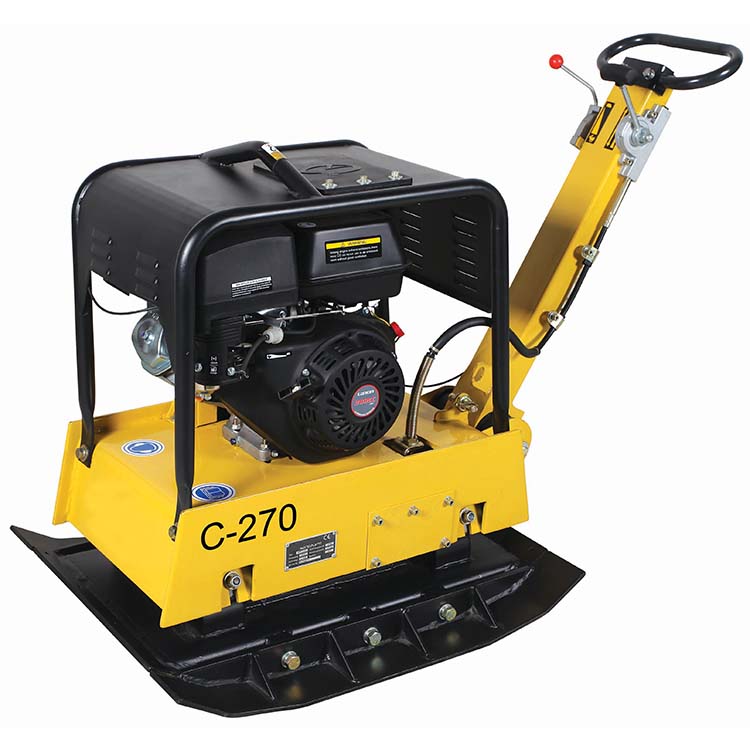

270kg with 36.0kn Reversible plate compactor
Mechanical control system reflects a reliability, economy machine and low maintenance design, compaction depths up to 90cm. Sewer trenches, general road-building projects, compacting foundations and backfills are all standard jobs for our heavy-duty plate compactors.
Large shock mounts reduce vibration to the handle and the upper deck
Centrally located lifting bar allows easy transportation in and out of trenches.
Heavy duty industrial throttle control is available as standard
FORWARD and REVERSE for your choose.Sewer trenches, general road-building projects, compacting foundations and backfills are all standard jobs for our heavy-duty compactors.
Optional Engine:
HONDA GX390 13.0HP
Chinese Petrol engine 13.0HP
Kama Diesel 186FE 9.0hp,Electric start
Model | C-270HD | C-270CH | C-270D | C-270KH | C-270BS |
Engine | Air-cooled.4-storke,single cylinder | ||||
Engine Type | Honda GX390 | Chinese Petrol Engine | Chinese Diesel 186F | Kohler CH440 | Briggs&Stratton |
Power kw(hp) | 9.5(13.0) | 9.5(13.0) | 6.6(9.0) | 10 (14) | 9.9(13.5) |
Weight kg(lbs) | 270(596) | 270(596) | 293(646) | 270(596) | 270(596) |
Frequency vpm | 3750 | ||||
Centrifugal Force kN | 36 | ||||
Compaction Depth cm(in) | 90(34) | ||||
Travel Speed cm/s(in/s) | 35(14) | ||||
Efficiency m 2 /hr(fr 2 /hr) | 650(6950) | ||||
Plate Size cm(in) | 89*67(35*26) | ||||
Package cm(in) | 98*70*114 | ||||
The machine is capable of handling various materials such as sand, gravel, and granular materials, making it applicable to a wide range of projects.
The vibration isolation reversible handle reduces operator fatigue, making it comfortable to use even during long working hours. The handle can be conveniently placed to suit the operator's preference, further enhancing comfort and reducing strain.
To ensure consistent and even compression force on the entire substrate, the machine features a fully enclosed exciter installed on the ceiling. This design helps distribute the force evenly and ensures smooth and uniform troweling.
Furthermore, the heavy-duty shock absorption support of the machine effectively reduces upper engine vibration, enhancing stability and control during operation.
