PRODUCTS
VR
PRODUCT DESCRIPTION

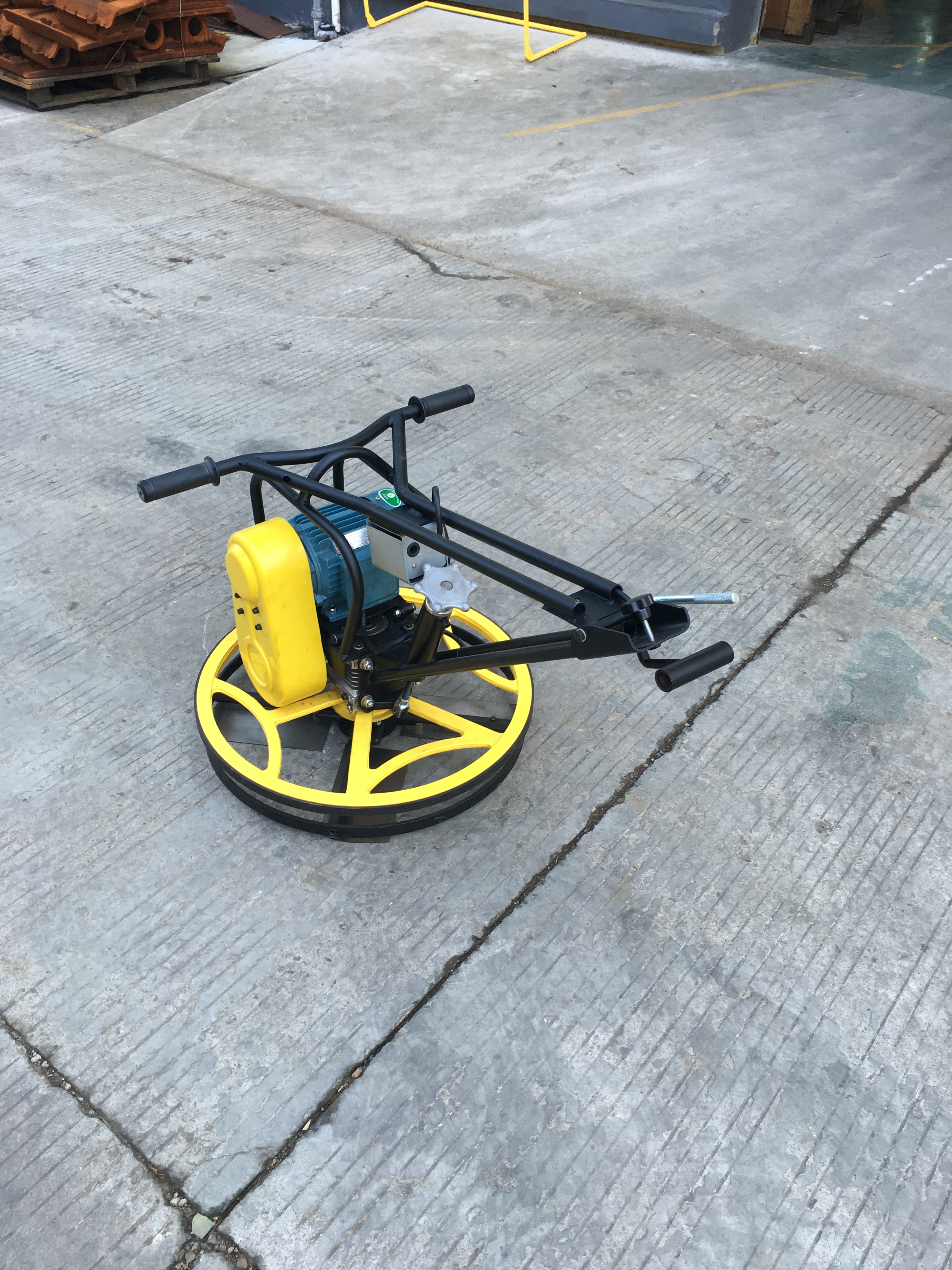

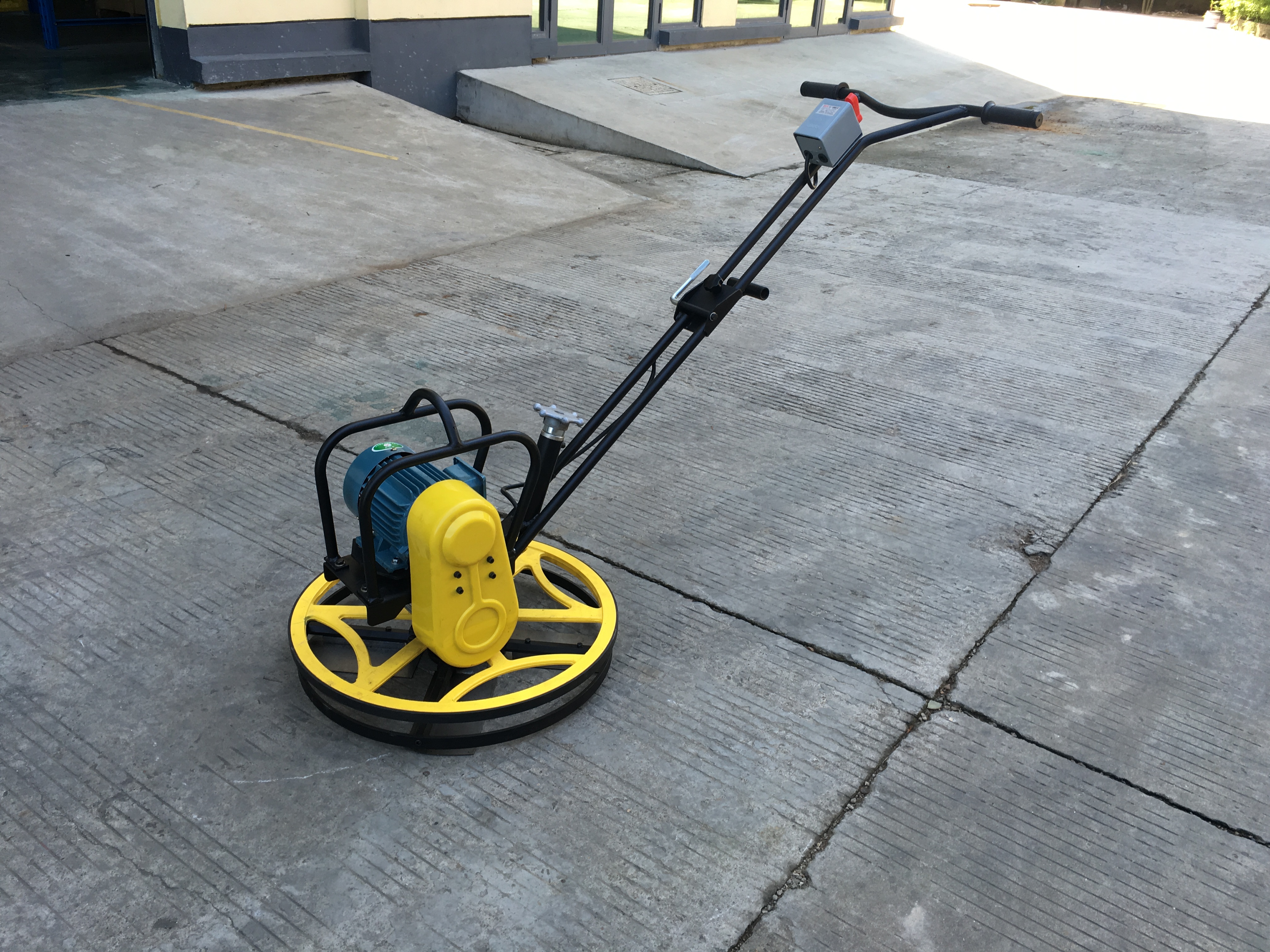

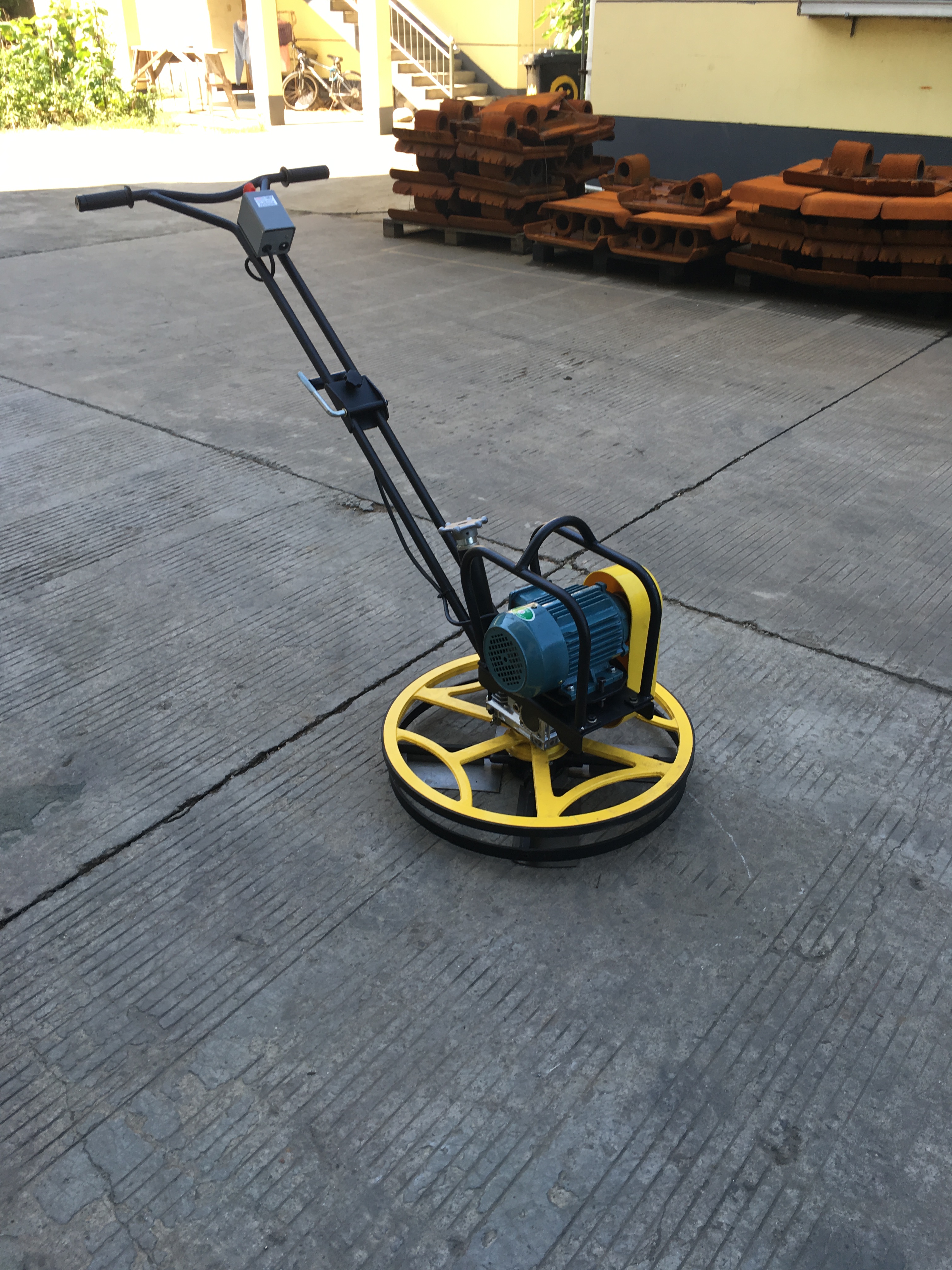

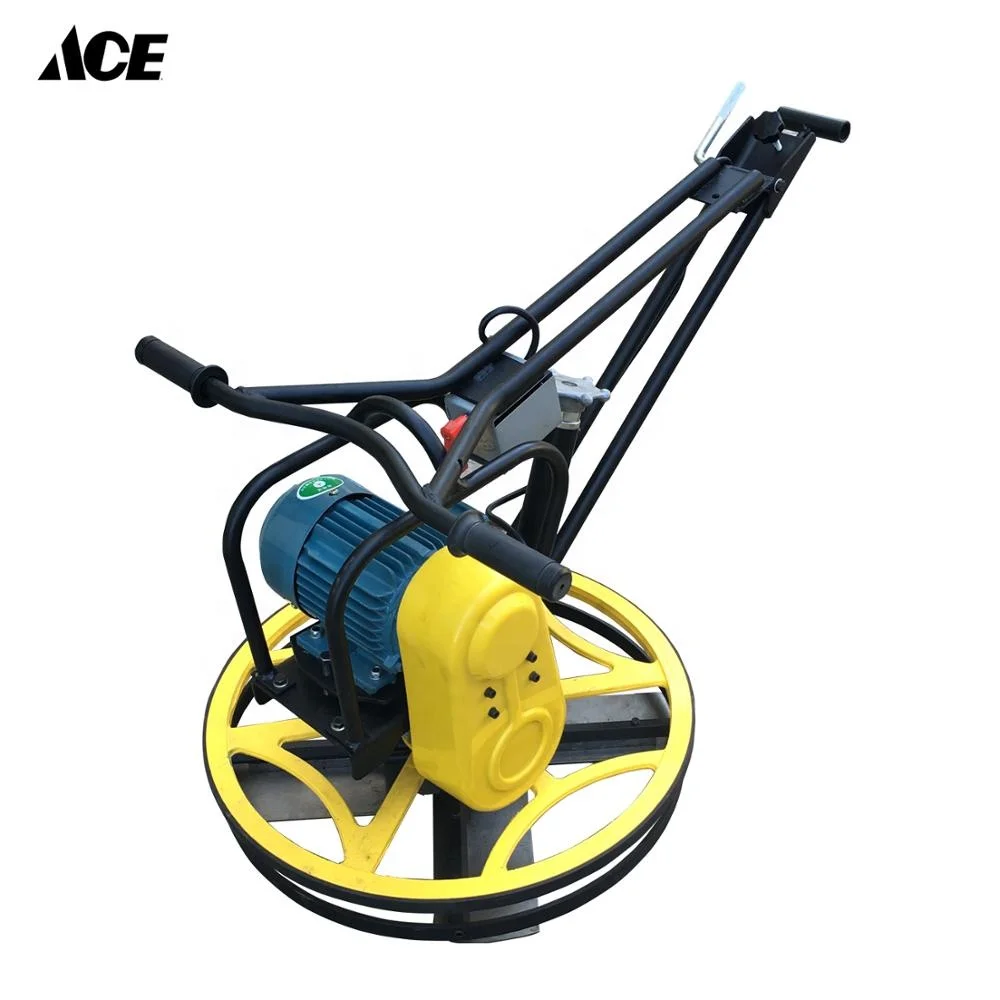

They drive by  380v or 220v electric motor . The Blades measure from 24 to 46 inches .They can work with floating blades, finish blades and combined blades


Different size of blade and underpan for your choice .


The balde could be adjusted with the help of screw control.


Height operator handle helps to handle.


It is more safe to operate by centrifugal safety switch.


Quality is our life,we have many safety certificates,such as EMC,CE,GS UL


They use single or multiple blades that rotate in a safety cage. used to create a level, smooth finish on a large or flat area of concrete, such as Building road ,repair road


house ,high way road


Product Parameters



ModelHMR-60
Weight    kg(lb)54(119)
Dimension  mm(in)L1460(57)*W660(26)*H980(38)
Plate Size    mm(in)L660(24)*W660(24)
Speed             rpm100
Motor380V, 50HZ; 220V, 50HZ
Motor Power               kw1.1
Motor speed              rpm2800
Blade quantity4 pcs


Product Accessories





ACCESSORIE 1:
Thickness: 1.2mm
Size: 228*20mm
Suit for other TROWEL brand:
1. OX 24 inch
2. Bartell 24 inch
3. Whiteman 24 inch
4. Wacker 24 inch
5. Allen 24 inch


ACCESSORIE 2:
Float pan: Plate 06
Thickness: 2.5mm
Suit for other TROWEL brand
1. OX 24 inch
2. Bartell 24 inch
3. Whiteman 24 inch
4. Wacker 24 inch
5. Allen 24 inch

Product Advantages



1) Over-built gearbox assures long service life

2) Heavy-weight design to assure a superior finish

3) Height adjustable handle, assures operator comfort & easy control

4) Lifting tube as standard feature allows trowel to be transported on the job-site with only two people

5) Centri-safety switch, shuts the engine down in the event of the operator loosing control of the unit

6) Screw control ensures precise blade adjustment

7) Lifting hook (weight 2.5kg) is available as optional

8) Throttle control is available as optional

9) Detachable type of guard ring is available.



Product Features



Centri-safety switch

shuts the engine down in the event of the operator loosing control of the unit


Screw control

ensures precise blade adjustment


Throttle control

Throttle control is available as optional



Product Comparison


electric
Energy saving
gasoline

long ueage time



Product Display



Small size

++

Fast speed

++

electric

++


QUESTION


FAQ
  • Can you supply the relevant documentation?
    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
  • Do you have a minimum order quantity?
    As usually ,the mini order is base on 1~50pcs .Different product will be different .
  • What are your prices?
    Our price is calculated based on the cost of the product, labor costs, and additional expenses. Our product price is not the lowest, but the quality is very good.
