Compactor Machinery
VR

Concrete Power Trowel machine factory with 28 years
Technical Specifications


ModelHMR100
Engine ModelHONDA GX160Lonxin GF200Robin EY20
Engine type4-stroke 25°Single-cylinder with Air-cooled
power5.5HP6.5HP5.0HP
Working speed70~130 RPM
Pan Diameter1000mm
Working Width980mm
Blade size350*150mm (14*6”)
Cluth typeAutomatic centrifugal clutch
N.W   / G.W90KGS / 103KGS
Packing size101 X 101 X 75 CM101 X 101 X 75 CM101 X 101 X 80 CM
Product Features


1. Over-built gearbox assures long service life.
2. Heavy-weight design to assure a service finish.
3. Height adjustable handle, dead-man switch available, assures operator comfort & easy control.
4. Lifting tube as standard feature allows trowel to be transported on the jo-site with only twopeople.
5. Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit.
6. Screw control ensues precise blade adjustment.
7. Safety designed gtuard ring.
8. Lifting hook is available as optional.
9. Throttle control is available as optional.

Accessory Drawing

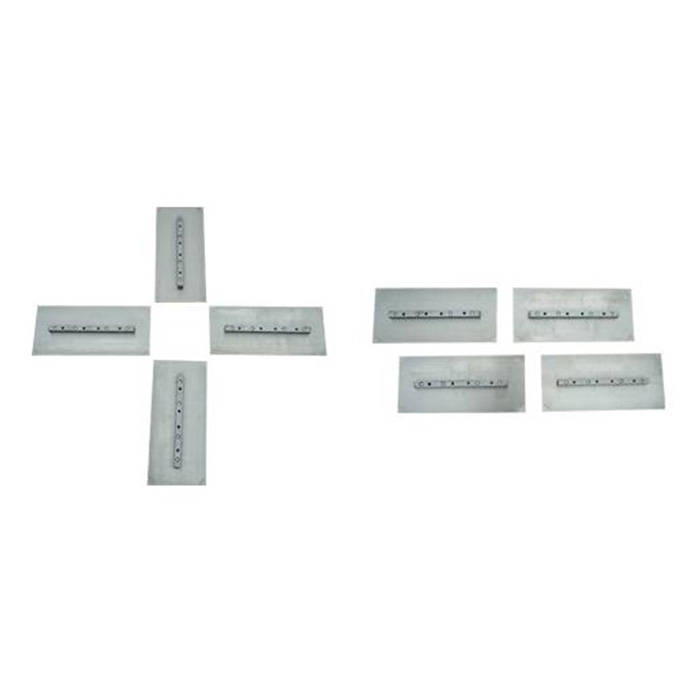

 Combination Blade 350*150mm (14*6in)

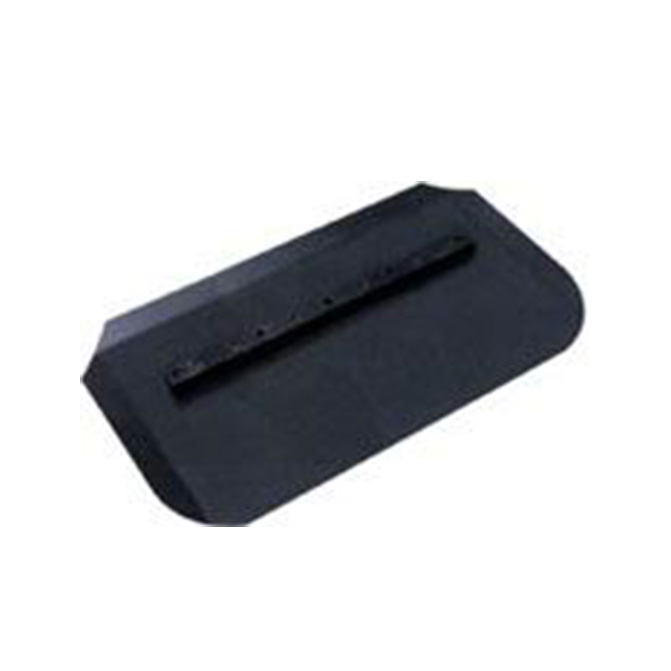

Finishing Blade 350*150mm (14*6in)

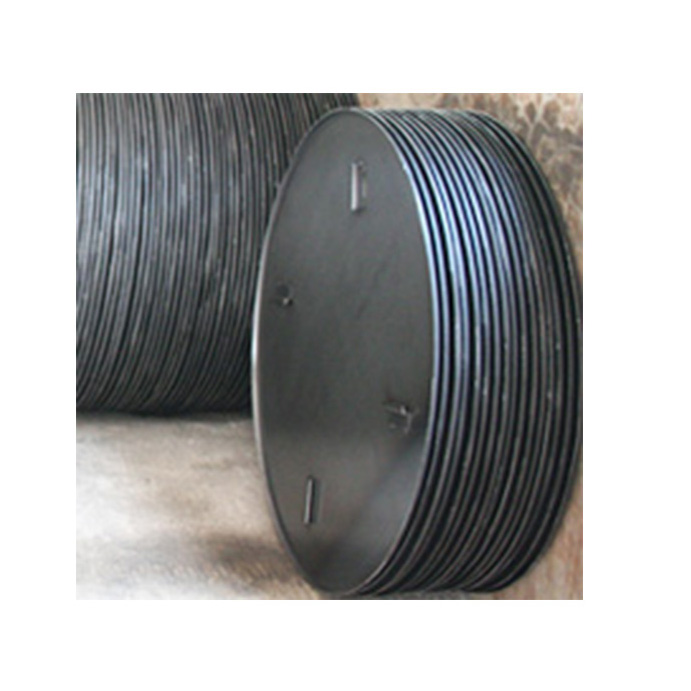

Float pan: 100cm (40in)

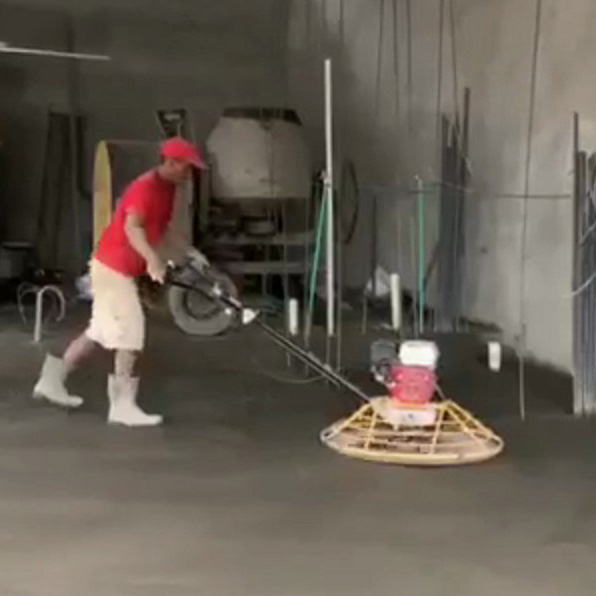

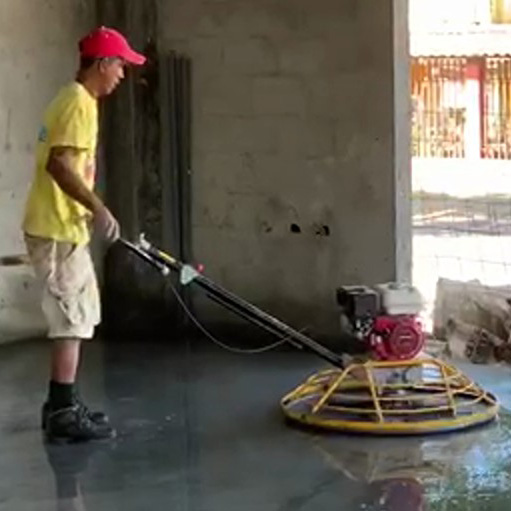

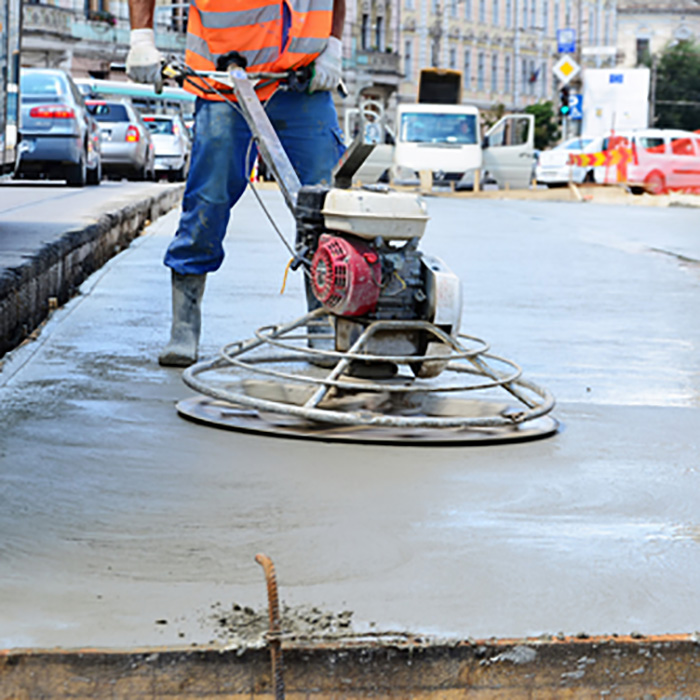

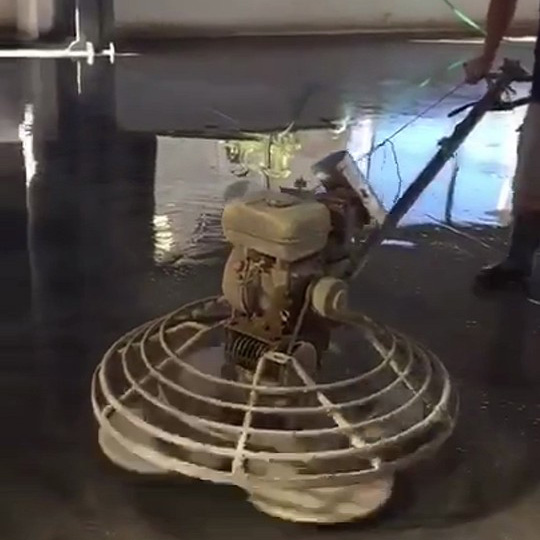

Application Scenario



concrete power trowel from ACE Machinery


concrete-road-screeding-machine


mini power trowel


power trowel from ACE Machinery
