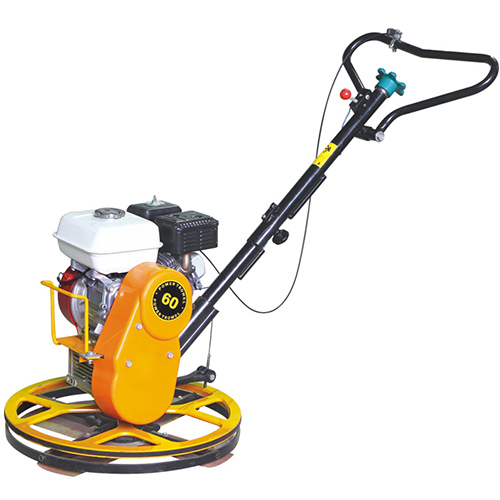

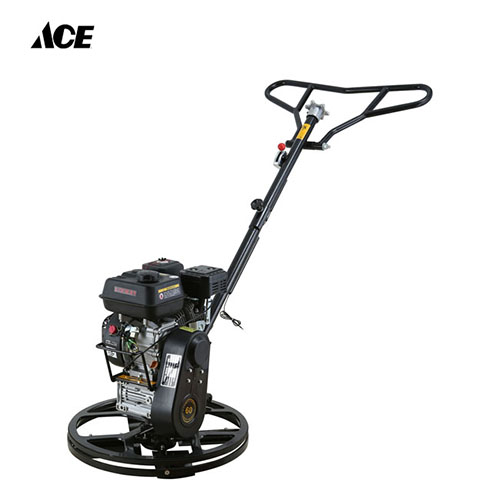

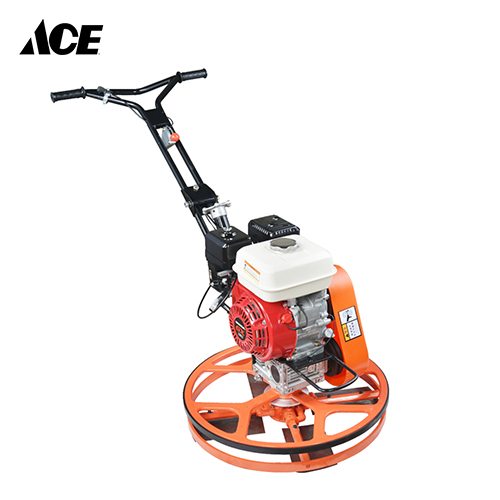

Walk Behind Power Trowel HMR60E
Feature:
1) Over-built gearbox assures long service life
2) Heavy-weight design to assure a superior finish
3) Height adjustable handle, assures operator comfort & easy control
4) Lifting tube as standard feature allows trowel to be transported on the job-site with only two people
5) Centri-safety switch, shuts the engine down in the event of the operator loosing control of the unit

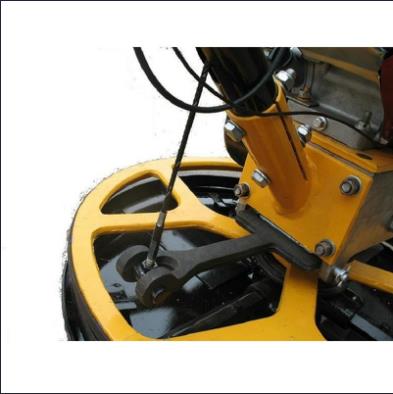

6) Screw control ensures precise blade adjustment
7) Lifting hook (weight 2.5kg) is available as optional
8) Detachable type of guard ring is available.
The HMR Walk Behind Power Trowel enables the professionaly finisher to achieve greater productivity.We carry a wide range of walk behind power trowels working diameter form 600mm to 1200mm .
With the widespread acceptance of the adjusting system that rates flatness,the large gearbox provides torque needed for floating and high speeds need for finishing .
When choosing a walk behind power trowel you must consider how big of an area you are trying to cover,the type of concrete mix,weather conditions,and if there are any obstructions and narrow doorways.
Available with Honda power gives this unit reliability and durability at the jobsite.
Upgraded specifications for top performance levels allow these trowels give the operator quick response to increase productivity and improved slab quality.
Our series of trowel HMR have opening guard rings to allow for quick and simple removal/replacement of trowel blades, which helps to facilitate increased production schedules.
| Model | HMR-60E | ||
| Engine Model | HONDA GX160 | LONXIN GF200 | ROBIN EY20 |
| Engine type | 4-stroke 25°Single-cylinder with Air-cooled | ||
| Power | 5.5HP | 6.5HP | 5.0HP |
| Working speed | 70-130RPM | ||
| Pan Diameter | 60CM | ||
| Working width | 60CM | ||
| Blade size | 23*15CM | ||
| Cluth type | Automatic centrifugal clutch | ||
| N.W/ G.W | 68KGS /78KGS | ||

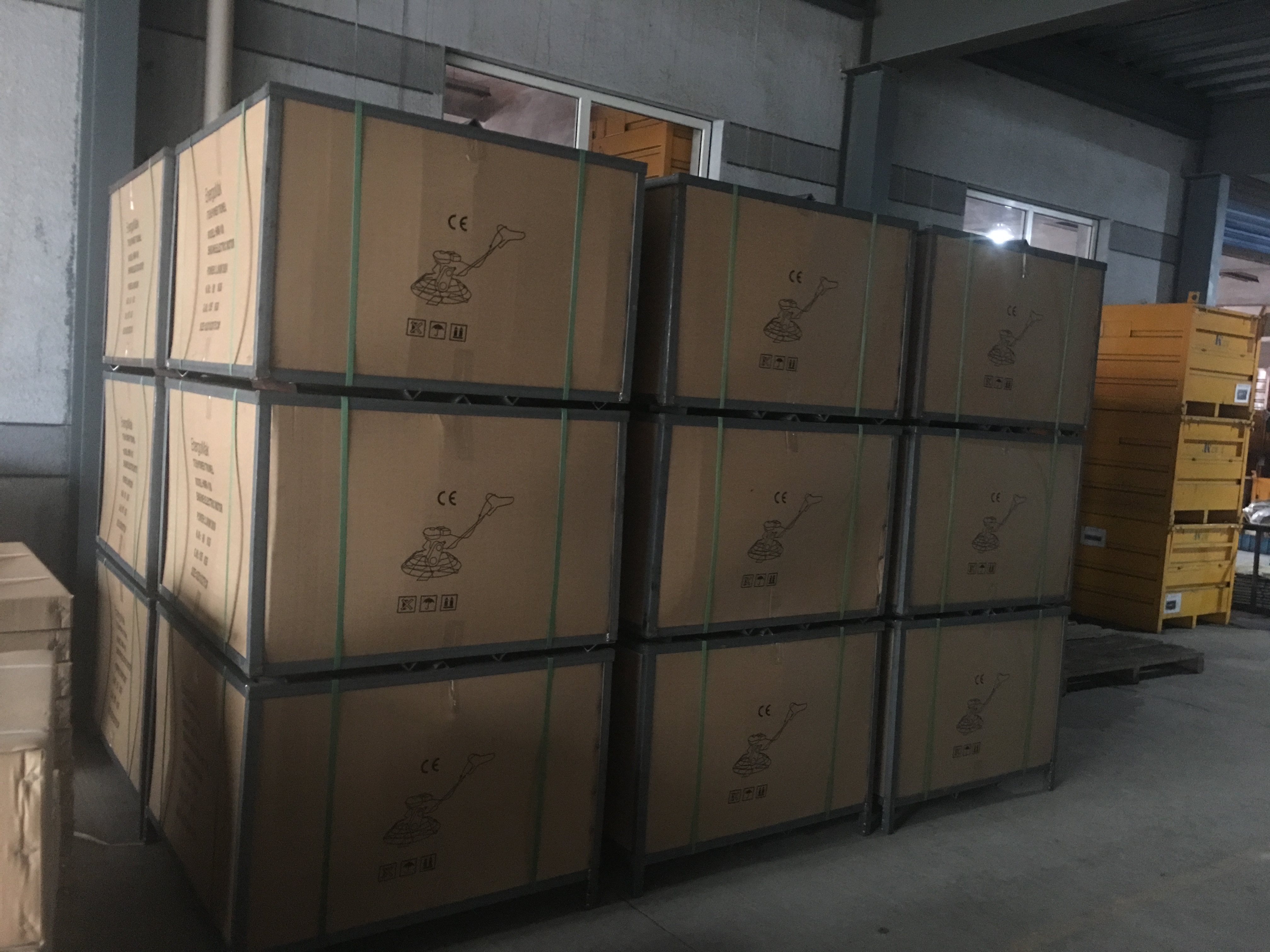

| Packing size | 67* 67 * 75 CM | 67* 67 * 75 CM | 67* 67 * 80 CM |
Over-built gearbox assures long service life
assures operator comfort & easy control
shuts the engine down in the event of the operator loosing control of the unit
User For
IMPORTANT
A power trowel is used to create a level, smooth finish on a large, flat area of concrete, such as an interior floor, or a poured patio slab for a deck. They use single or multiple blades that rotate in a safety cage. Use a pushable concrete power trowel or riding model based on the size of your job. Blades measure from 24 to 46 inches long and come in three types: floating, finish and combined.
Low maintenace&Long-life design.
An economical solution for troweling small surface, edges and corners.
