A construction equipment supplier of construction machinery solutions for 25 years.
the steel rod cutting machine is an essential tool for any construction or road-building project that requires bending steel bars to various shapes and angles accurately. ACE's steel bar bending machine is designed to function seamlessly and reduce work time, with a high capacity to bend different types of steel bars in a wide range of diameters.
One of the unique features of ACE's Manual steel bar Cutting machine is its advanced hydraulic system, which provides precise control and accuracy in the bending process. The machine also has a compact design, reducing the amount of space needed to operate it while still allowing for maximum performance.
As an added advantage, ACE offers discounted prices and short logistics times, with original packaging to ensure safe delivery. ACE is a professional cutting machine supplier in china
Steel bar cutter GQ50

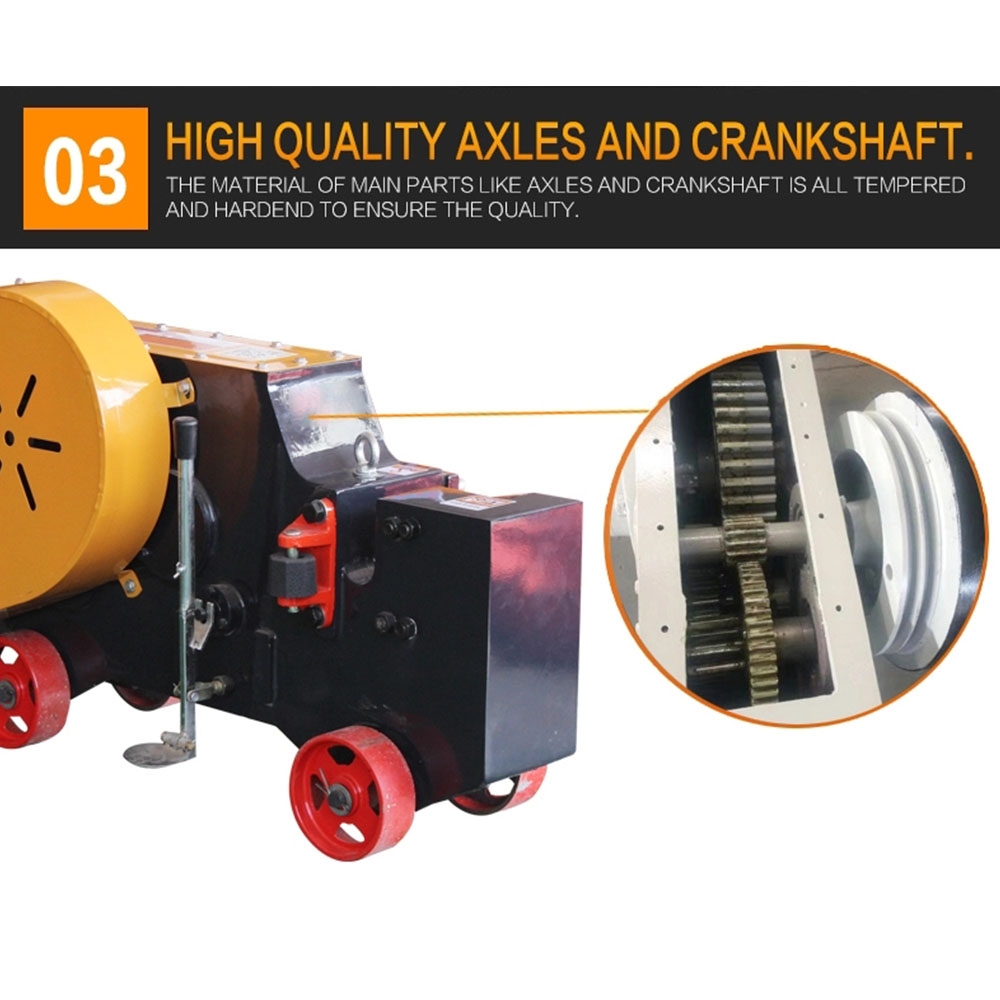

Gear, Crankshaft, Connection Rod, Shafts 1, 2, 3, and Blades:Crafted from high-quality structural steel or alloy steel, these components undergo essential heat treatments such as quenching, tempering, or high frequency treatments, ensuring resilience and longevity in demanding construction environments.
External Case:Constructed from ductile iron, the external case adds an extra layer of durability and strength to the machine.
Product Description:
Premium Material Construction:All critical components, including gear, crankshaft, connection rod, shafts 1, 2, 3, and blades, are made from high-quality structural steel or alloy steel, ensuring superior performance and longevity. The required heat treatment further enhances their durability.
Precision Cutting with Thread Type and Adjustable Stop Gauge:The machine features a thread type and adjustable stop gauge system, ensuring unparalleled accuracy and stability in cutting operations. This precision control mechanism guarantees high-quality and consistent cuts across various steel bar standards.
Heavy-Duty Capability:The separation of the connecting rod from the gear allows the machine to undertake heavy-duty tasks, showcasing its robust construction and capability to handle challenging cutting operations without compromising performance.

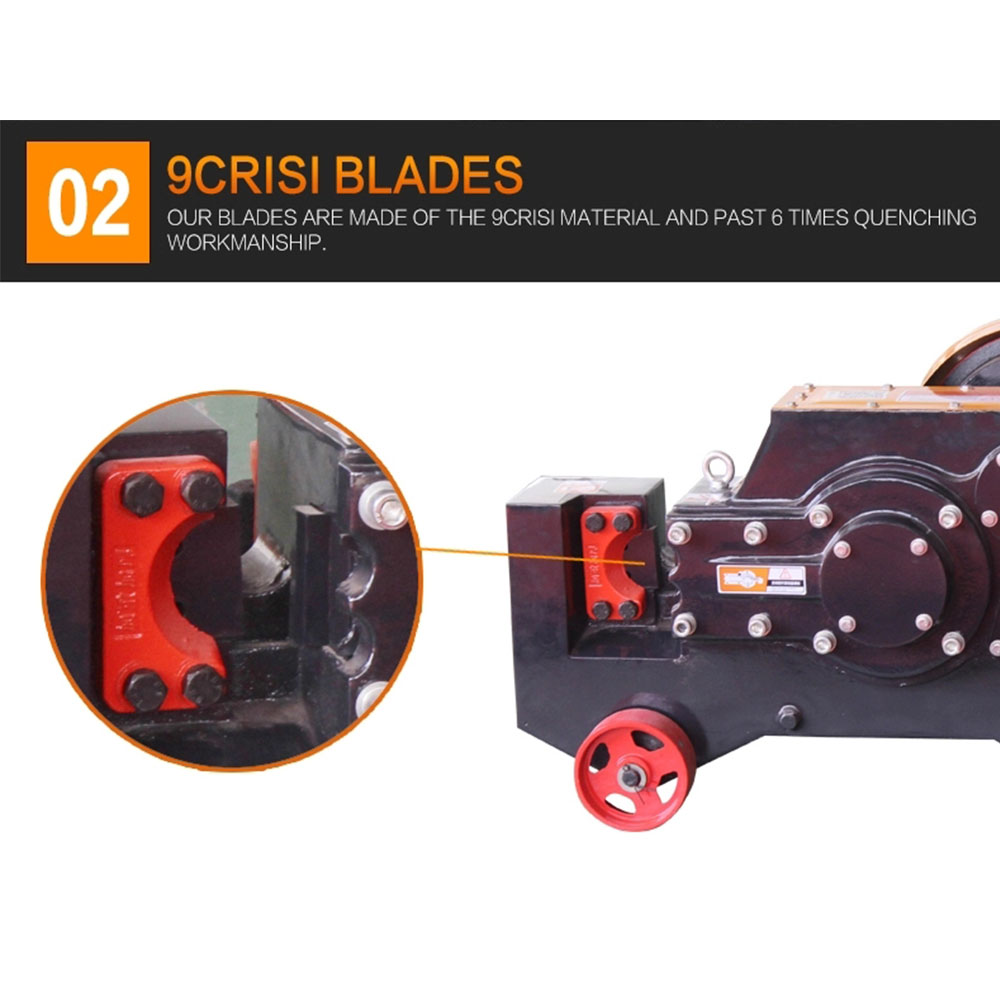

Highly Efficient Blades:The adoption of high-resistant blades ensures efficiency in cutting steel bars of all standards without the need for frequent blade changes. This design choice enhances productivity and minimizes downtime.
Large Gear for Improved Performance:The inclusion of a large gear not only improves driving speed but also enhances the overall working life of the machine, contributing to consistent and reliable performance over an extended period.
Steel bar cutter / steel cutting machine | |||

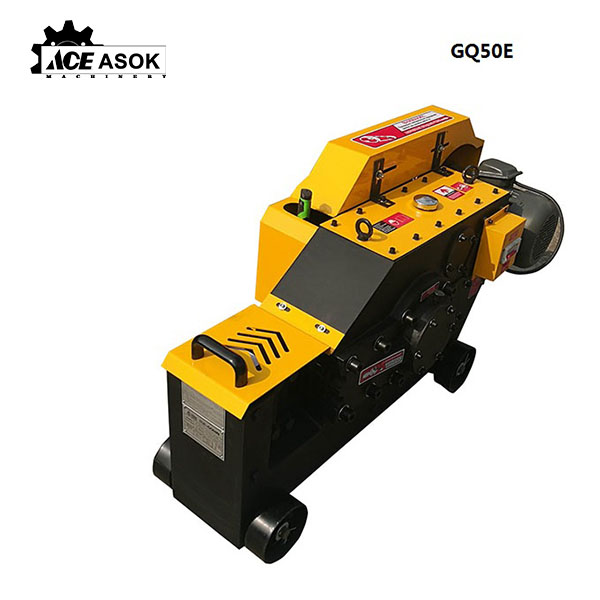

Model | GQ50E | GQ50A | GQ50D |
Cutting rebar Dia (Plain Carbon Steel) | Ф6-42mm | Ф6-45mm | Ф6-42mm |
Ⅱgrade screw thread rebar Dia: | Ф6-32mm | Ф6-36mm | Ф6-32mm |
Flat steel max. diameter: | 80×18mm | 80×18mm | 80×18mm |
Cutting square steel max. spec(Q235A) | 40×40mm | 40×40mm | 40×40mm |
Angle steel max. spec : | 63x63mm | 63x63mm | 63x63mm |
Cutting quantity: | 28t/min | 28t/min | 28t/min |
Motor spec: model: | Y112M-2 4KW | Y112M-2 4KW | 12.5HP Diesel Engine |
Voltage / speed | 380V 2800rpm | 380V 2800rpm | Diesel Engine |
Net weight: | 485kgs | 509kgs | 619kgs |
Gross weight: | 515kgs | 534kgs | 660kgs |
Packing size: | 1450*600*1020mm | 1500*600*1020mm | |

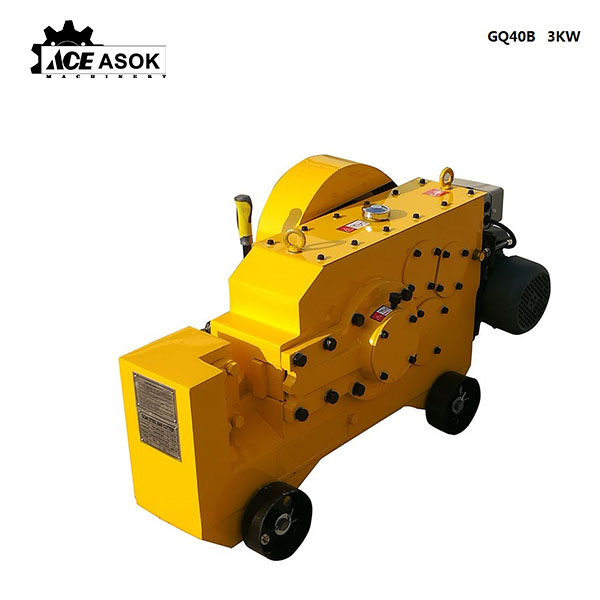

GQ40 steel bar cutting machine
