ACE manual monorail GTWY2-6/16 elevator, emergency stop button and emergency descent are safety guarantees compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.ACE ASOK Machinery summarizes the defects of past products, and continuously improves them. The specifications of ACE manual monorail GTWY1-8/12 elevator, emergency stop button and emergency descent are safety guarantees can be customized according to your needs.
| GTWY2 | ||||||
| Push Around Vertical Lift-Dual Masts | ||||||
| Model | GTWY2-6 | GTWY2-8 | GTWY2-10 | GTWY2-12 | GTWY2-14 | GTWY2-16 |
| Platform | ||||||
| Max. Working Height | 8m | 10m | 12m | 14m | 16m | 18m |
| Max. Platform Height | 6m | 8m | 10m | 12m | 14m | 16m |
| Loading Capacity | 250kg | 250kg | 250kg | 200kg | 200kg | 150kg |
| Occupants | 2 | 2 | 2 | 2 | 2 | 1 |
| Platform Dimension | 1.45m x 0.7m | 1.45m x 0.7m | 1.45m x 0.7m | 1.45m x 0.7m | 1.8m x 0.7m | 1.8m x 0.7m |
| Overall Dimension | ||||||
| Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | 2.68m | 2.68m |
| Overall Width | 0.76m | 0.76m | 0.76m | 0.76m | 0.88m | 0.88m |
| Overall Length | 1.48m | 1.48m | 1.48m | 1.48m | 1.88m | 1.88m |
| Outrigger coverage | 2.2m x 1.7m | 2.2m x 1.7m | 2.5m x 2.1m | 2.8m x 2.5m | 3.2m x2.5m | 3.2m x2.5m |
| Weight | ||||||
| AC | 610kg | 645kg | 715kg | 750kg | 892kg | 996kg |
| DC | 660kg | 695kg | 765kg | 800kg | 942kg | 1046kg |
| Power | ||||||
| AC | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V |
| AC Motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| DC | 2x12V | 2x12V | 2x12V | 2x12V | 2x12V | 2x12V |
| DC motor | 1.6KW | 1.6KW | 1.6KW | 1.6KW | 1.6KW | 1.6KW |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
Product selling points
Walking and lifting (walking and lifting can be completed through the upper control handle operation to improve work efficiency)
Extension platform (capable of crossing obstacles and quickly paving to the working point.)
Turning radius (minimum turning radius and compact design facilitate working in narrow spaces)

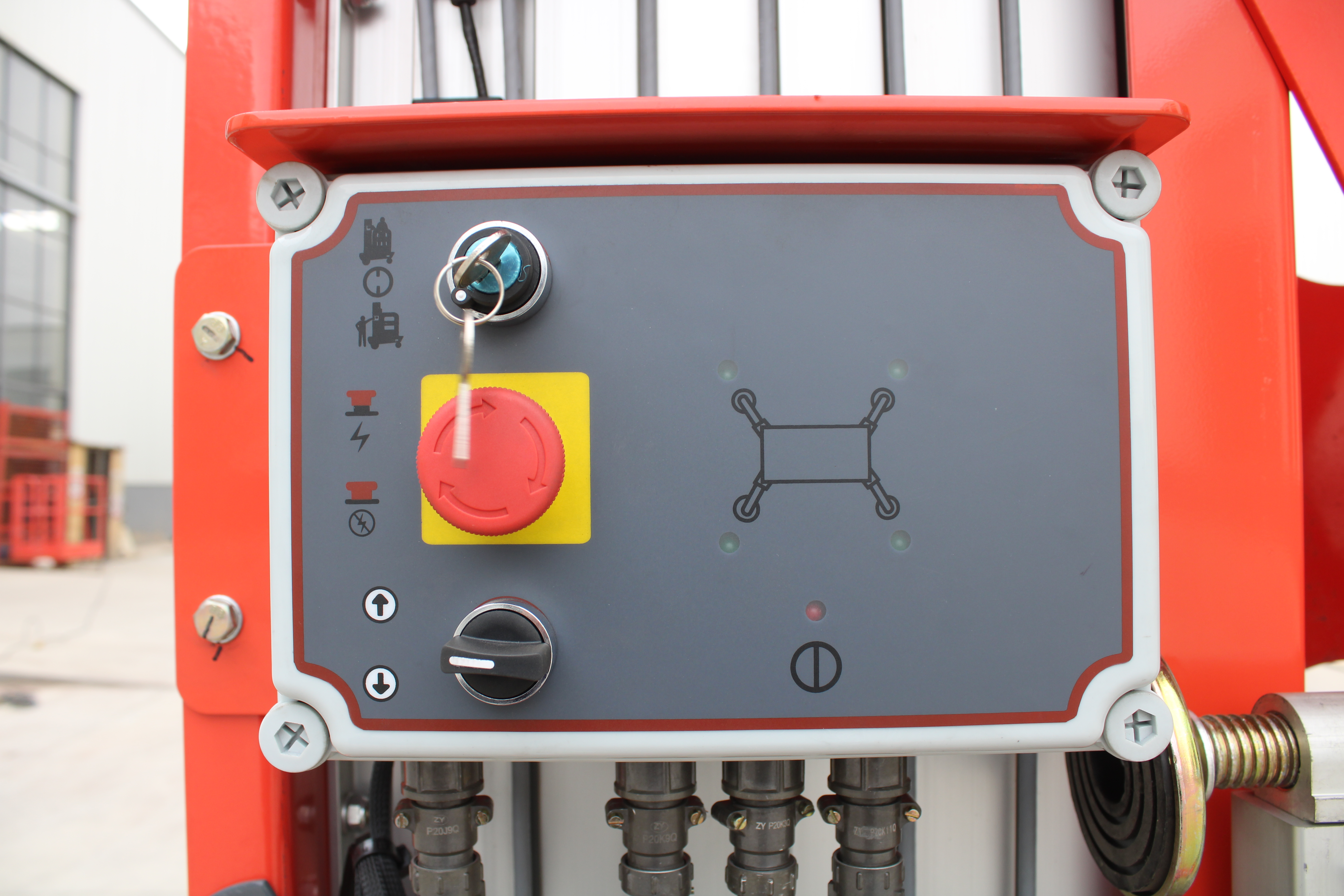

Emergency descent (equipment can be manually lowered in case of power failure or emergency)
Explosion-proof oil cylinder (once the oil pipe breaks, the explosion-proof valve automatically opens, and the platform stops in the air, waiting for rescue)
Climbing ability (25% climbing ability, able to smoothly climb the slope)
Convenient maintenance (automatic display of fault codes for easy maintenance)
Sealing ring (NOK sealing ring, no oil leakage when the equipment is parked for a long time)
Safety testing
Mechanical strength (more than ten times the test requirement)
Hydraulic load carrying capacity (more than eight times the test requirement)
Electrical Appliances (with European EC Declaration of Conformity)
Anti tipping test (150% full load, 4 times the maximum inclination angle, 200N horizontal force, load on the most unfavorable side, ensuring that the equipment does not tip over)
