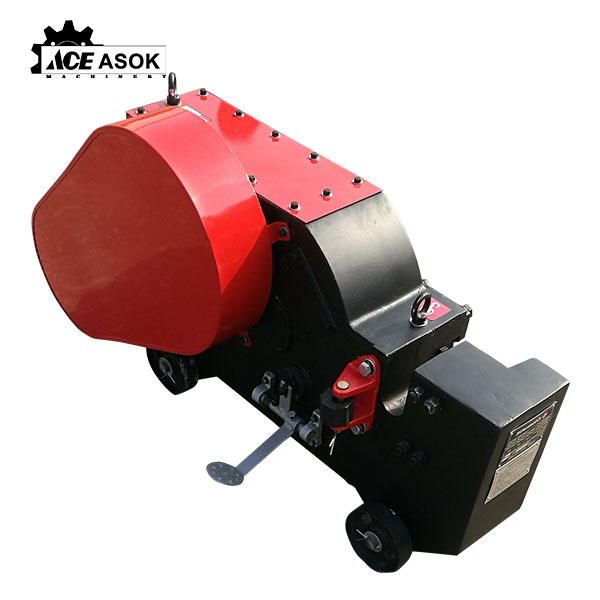

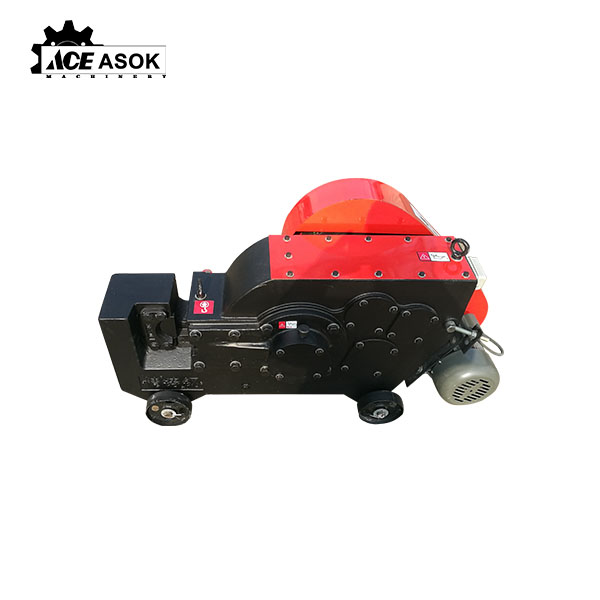

| Steel bar cutter / steel cutting machine | |||

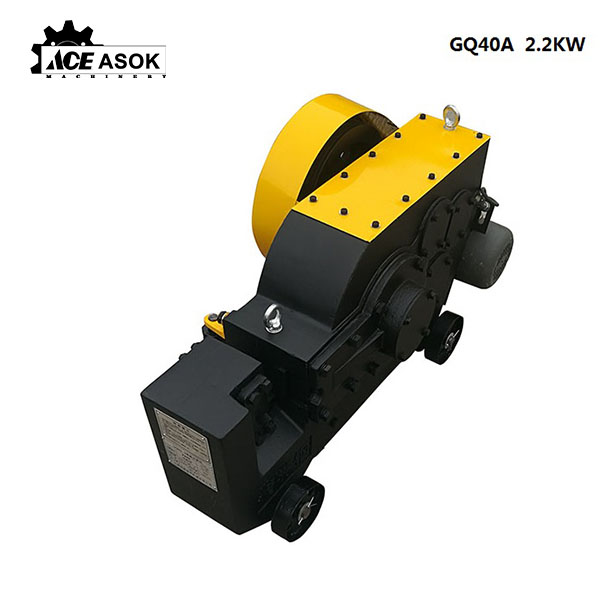

| Model | GQ40A | GQ40B | GQ40E |
| Cutting rebar Dia (Plain Carbon Steel) | Ф6-30mm | Ф6-40mm | Ф6-40mm |
| Ⅱgrade screw thread rebar Dia: | Ф6-22mm | Ф6-32mm | Ф6-32mm |
| Flat steel max. diameter: | 60×10mm | 70×15mm | 70×15mm |
| Cutting square steel max. spec(Q235A) | 22×22mm | 32×32mm | 32×32mm |
| Angle steel max. spec : | 40×40mm | 50×50mm | 50×50mm |
| Cutting quantity: | 32t/min | 32t/min | 32t/min |
| Motor spec: model: | Y90L-2 2.2KW | Y100L-2 3KW | Y100L-2 3KW |
| Voltage / speed | 380V 2800rpm | 380V 2800rpm | 380V 2800rpm |
| Net weight: | 290kgs | 320kgs | 340kgs |
| Gross weight: | 315kgs | 345kgs | 360kgs |
| Packing size: | 1280*500*860mm | 1280*500*860mm | 1280*500*860mm |
I .Cutting Ability:
| Steel | Pic | GQ40E | GQ50 |
| (Round steel)R.45kg／㎜² 450N／㎜² |  | Φ6--40mm | 6--50 mm |
| II Grade Deformed steel bars |  | Φ32 mm | Φ36 mm |
| Flat steel |  | Φ70x15mm | Φ80x15mm |
| Square steel |  | (Q235A) Φ32x32mm | (Q235A) Φ36x36mm |
| Channel Steel |  | 50*50mm | 63*63mm |
II. Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than φ22mm
| Diameter of steel bar (mm) | 4～8 | 10～13 | 14～18 | 19～22 | More than 22 |
| Cutting off piece number each time | 6 | 5 | 3 | 2 | 1 |
| GQ40 | 6 | 5 | 3 | 2 | 1 |
| GQ50 | 8 | 5 | 4 | 3 | 2 |
