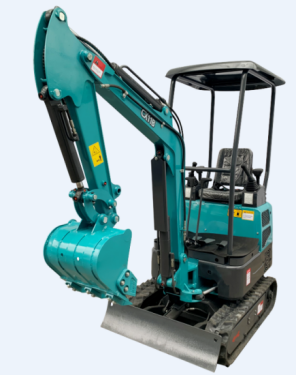

How to choose CX-10T mini excavator from ACE Machinery

March 26, 2023

Product Type

CX10T

CX11A

CX11B

Model	CX10T	CX11A	CX11B
Dimensions	Specification	Specification	Specification
Wheel Tread	1220 mm	1220 mm	1220 mm
Length of track	2664 mm	2664 mm	2664 mm
Ground clearance of upper platform	380 mm	380 mm	380 mm
Turning radius of tail	784 mm	784 mm	784 mm
Width	940 mm	940 mm	940 mm
Width of track	180 mm	180 mm	180 mm
Height of track	320 mm	320 mm	320 mm
Length	2770 mm	2770 mm	2770 mm
Height	1480 mm	1480 mm	1480 mm
Operating range	Specification	Specification	Specification
Working ranges	2850 mm	2850 mm	2850 mm
Maximum digging radius	1650 mm	1650 mm	1650 mm
Maximum digging depth	2610 mm	2610 mm	2610 mm
Maximum digging height	1850 mm	1850 mm	1850 mm
Maximun vertical digging depth	1375 mm	1375 mm	1375 mm
Minimum swing radius	1330 mm	1330 mm	1330 mm
Height of bulldozing plate	345 mm	345 mm	345 mm
Depth of bulldozing plate	255 mm	255 mm	255 mm
Engine type	1-Cylinder ,4-Stroke,Air-cooled ,Veritical Koop 192FS,Euro 5 emission	1-Cylinder ,4-Stroke,Air-cooled ,Veritical Koop 192FS,Euro 5 emission	1-Cylinder ,4-Stroke,Air-cooled ,Veritical Koop 192FS,Euro 5 emission
Engine power	8.6 KW/11.6HP	8.6 KW/11.6HP	8.6 KW/11.6HP
Operation Weight	1020 KGS	1060 KGS	1120 KGS
Bucket capacity	0.025 m³	0.025 m³	0.025 m³
Arm rotatable or not	No rotatable	Rotatable	Rotatable
Operating system	Mechanical valve operation	Mechanical valve operation	Pilot valve operation

Product Details

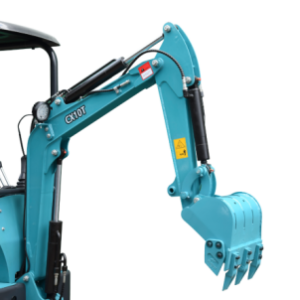

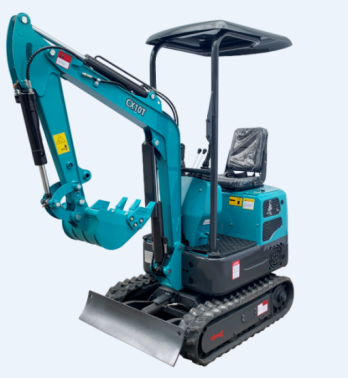

CX10T-Detail

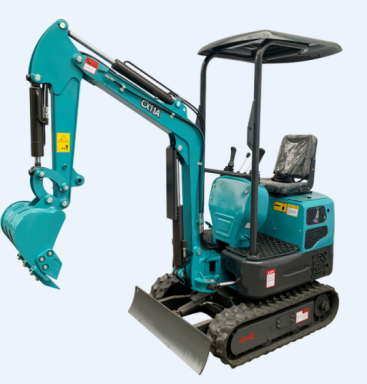

CX11A-Detail

CX11B-Detail

Accessory for Optional

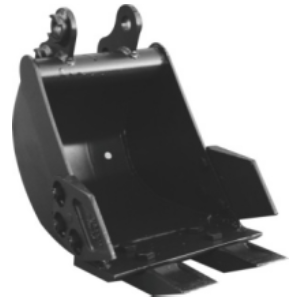

200 mm bucket (with tooth)

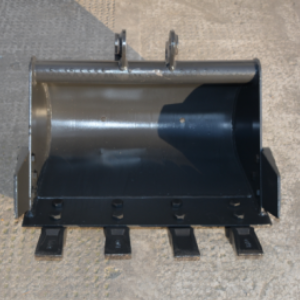

300 mm bucket (with tooth)

500 mm bucket (with tooth)

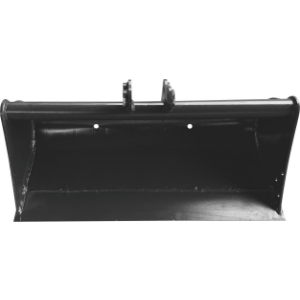

600 mm bucket (without tooth)

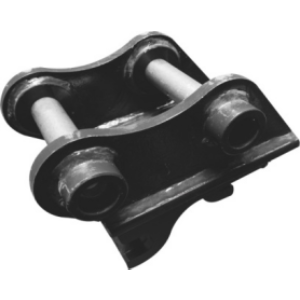

Quick hitch

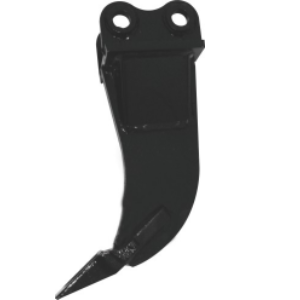

Ripper

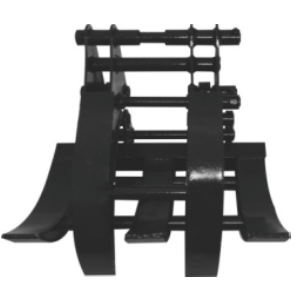

Wood Grab

800 mm bucket (without tooth)

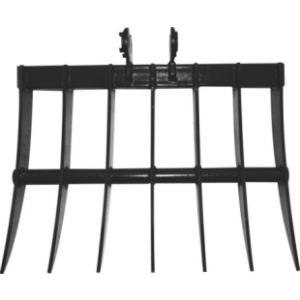

Rake

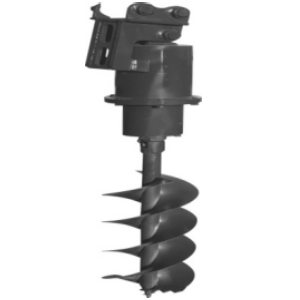

Auger

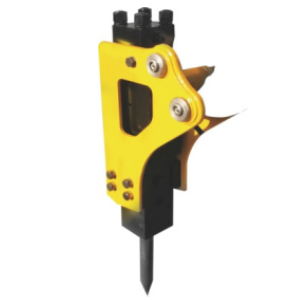

Hydraulic Breaker

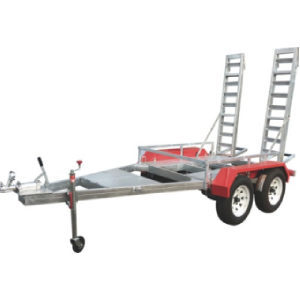

Trailer
