If you're in construction, landscaping, or any field that requires solid ground preparation, a reliable tamping rammer—also known as a jumping jack compactor—can make all the difference. These powerful rammer compactor tools compact soil, gravel, and other materials efficiently, creating stable surfaces for foundations, trenches, and roads. In this guide, we'll dive into the WH series from a trusted manufacturer, focusing on the WH-RM80L, WH-RM80, and WH-RM85 models. We'll break down their specs, features, and uses in simple terms to help you pick the best soil compactor or vibratory rammer for your needs.
A tamping rammer is a handheld vibratory rammer designed for soil compaction in tight spaces where larger equipment can't reach. It works by using a piston to deliver rapid, high-impact blows to the ground, forcing particles together for better density and stability. Think of it as a soil compactor on steroids—perfect for preventing settling or shifting in your projects.
These machines are especially useful for:
Foundation work: Ensuring even compaction under buildings or slabs.
Trench backfilling: Securing pipes and cables in utilities like water or electrical lines.
Road and pavement repairs: Patching holes or preparing sub-bases for asphalt.

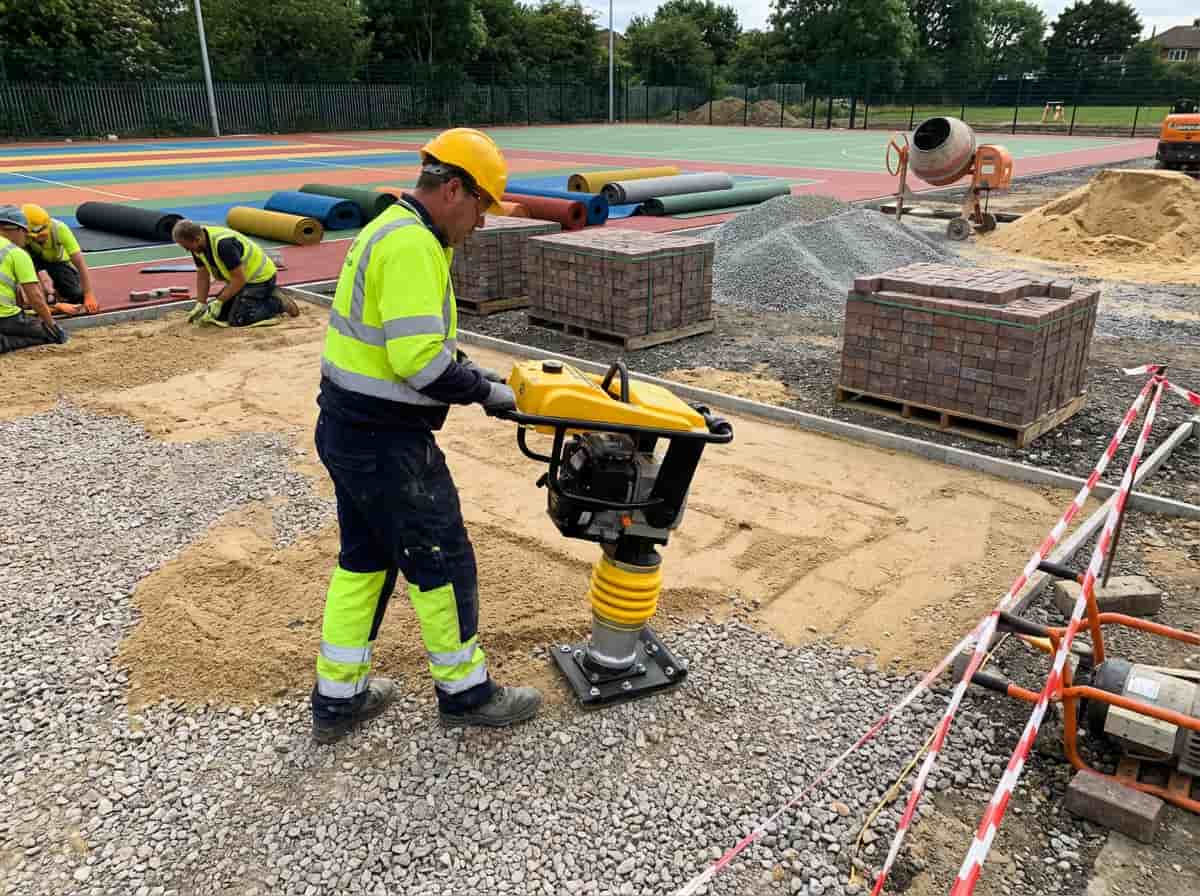

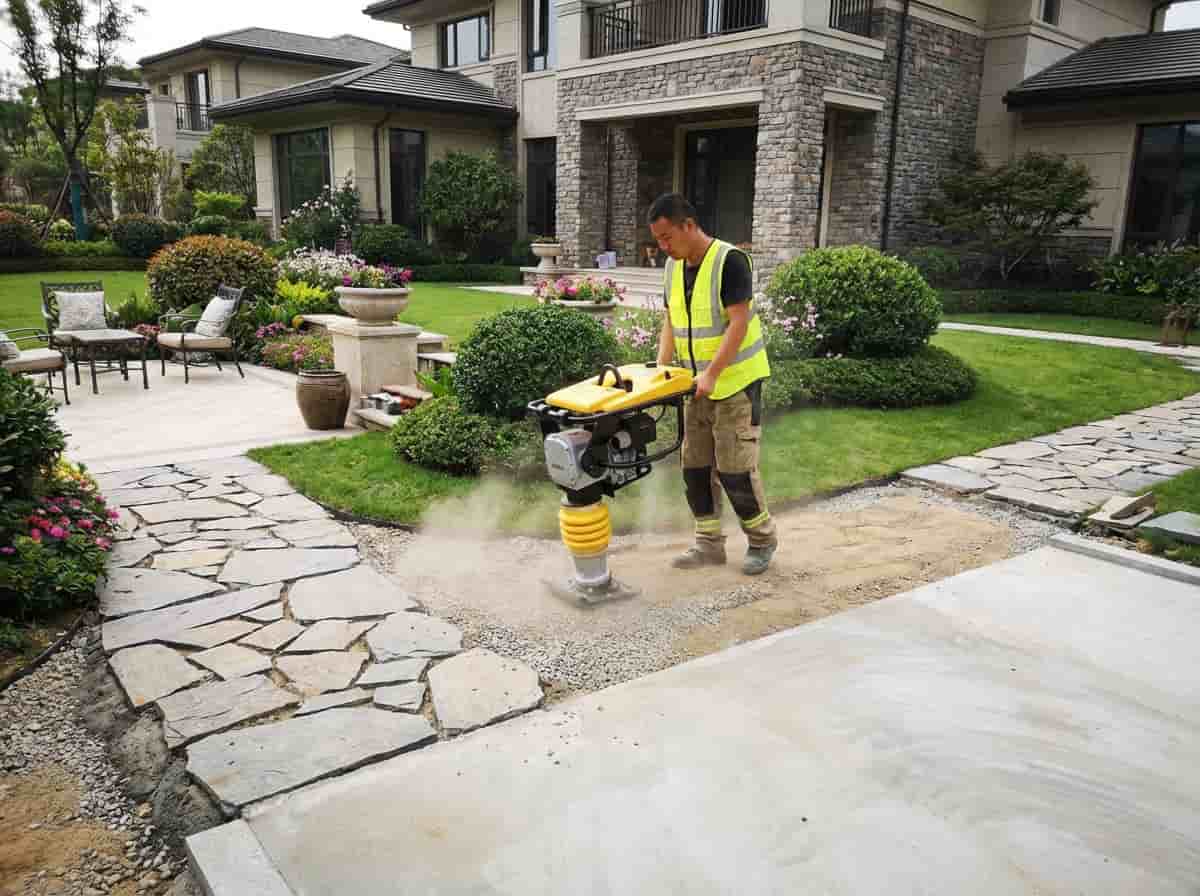

Landscaping: Compacting soil for patios, walkways, or garden beds.
Mining and small-scale excavation: Handling backfill in confined areas.
With options like diesel tamping rammer variants, they're versatile for both gasoline and diesel preferences, offering fuel efficiency and power where needed.
The WH series stands out for its air-cooled, single-cylinder 4 stroke rammer compactor engines, which provide reliable performance with low maintenance. All models share core traits like a 34 x 28.5 cm plate size, 2.8 L fuel tank, and 450-660 impacts per minute, but they differ in power, weight, and impact force.
To make it easy, here's a side-by-side look at the key differences:
| Feature | WH-RM80L | WH-RM80 | WH-RM85 |
|---|---|---|---|
| Impact Force (KN) | 10 | 10 | 12 |
| Engine Options | Robin/Honda/Loncin | Robin/Honda/Diesel | RATO/Loncin/Diesel |
| Power (kW/HP) | 4-6.5 | 4-5.5 (gas), 4 (diesel) | 3.6-6.5 (gas), 4 (diesel) |
| Weight (kg) | 78 | 73-89 | 68-81 |
| Impacts/Min | 450-660 | 450-660 | 450-660 |
| Advancing Speed (m/min) | 10-13 | 10-13 | 10-13 |
What ties these rammer compactor models together? Top-notch build quality and user-focused design:
Vibration Reduction: Heavy-duty rubber damping blocks cut down on handle shake, so you can work longer without fatigue.
Durability Boost: Corrosion-resistant HDPE fuel tanks stand up to weather and rough handling.
Tough Base: Iron-reinforced plywood ram boards handle high pressure and impacts, reducing wear over time.
Safety Add-Ons: Emergency stop switches and time counters (on select models) keep operations safe and trackable.
These features make the WH series a go-to soil compactor for pros in San Jose and beyond, where quick, reliable compaction is key to project success.
In practice, choose based on your workload:
For lighter, frequent use like home landscaping, go with the RM80L's balanced 78 kg tamping rammer.
Need diesel for remote sites? The RM80 or RM85 diesel tamping rammer options save on fuel.
Handling sticky clays or deeper layers? The RM85's extra 12 KN force as a vibratory rammer gets the job done faster.
Pro tip: Always check soil moisture before compacting—too dry or wet can affect results. Regular maintenance, like cleaning the air filter, keeps your jumping jack compactor running smoothly.
Picking the right tamping rammer depends on your job type, soil conditions, and site needs. Here's a quick guide to help you decide among the WH-RM80L, WH-RM80, and WH-RM85 models:
Choose the WH-RM80L (78 kg, 10 KN impact force) if you're handling everyday construction tasks like foundation prep, general backfilling, or landscaping in San Jose. With reliable Honda, Robin, or Loncin engines (4–6.5 HP), it's a balanced jumping jack compactor — not too heavy to move around, yet strong enough for most semi-cohesive soils and trenches up to medium depth. Great for contractors who want versatility without overkill.
Go for the WH-RM80 series (73–89 kg, 10 KN impact force) when you need more flexibility, especially diesel options for remote sites or longer runtime. The lighter gasoline models (73–76 kg) are easy to transport and ideal for urban repair work or tight spots. The diesel tamping rammer version (89 kg) suits tougher conditions where fuel efficiency matters more than ultra-light weight — perfect for utility trenches or small mining backfill.
Pick the WH-RM85 (68–81 kg, 12 KN impact force) for demanding jobs requiring deeper or faster compaction, such as heavy clay soils, deep trenches, or high-volume foundation work. Its extra 20% impact force makes it the most powerful in the lineup, while the lighter 68 kg tamping rammer gasoline versions keep it portable. Opt for the diesel model if you're in dusty or remote areas — it's a top vibratory rammer for pros who prioritize performance over everything else.
Cohesive/clay soils? → Any of these work well (tamping rammer excels here).
Granular/sandy soils or large flat areas? → Consider a plate compactor instead.
Tight trenches or confined spaces? → All three shine due to their narrow plate (34 × 28.5 cm).
Frequent transport or lifting? → Favor the lighter WH-RM85 gasoline (68 kg tamping rammer) or WH-RM80 gasoline variants.
Budget and engine preference? → Honda/Robin/Loncin for proven reliability; diesel for cost savings on fuel in long runs.
No matter which WH series tamping rammer you select, you'll get solid build quality, vibration-damping handles for comfort, and corrosion-resistant tanks for durability. If you're in California and unsure, test one locally — proper compaction saves time and prevents costly rework down the line.
In a market full of options, the WH-RM80L, WH-RM80, and WH-RM85 stand out for their power, portability, and price-to-performance ratio. Whether you're a contractor prepping a foundation or a landscaper building a patio, these 4 stroke rammer compactor machines deliver consistent results. If you're in California and need a durable rammer compactor, consider these models for your next project—they're built to last and easy to use.
Ready to upgrade your toolkit? Contact a local supplier in San Jose for demos or quotes on these top tamping rammers.
