ACE Micro Digger for sale 1250kgs Water cooling Diesel engine ready in your service, KOOP KD2V80 engine as the heart of micro digger but in same time enjoy low fuel consumption rate.
Extra connection head of oil pipe could adding more accessories like auger and breaker hammer.
Products Features:
1. Beautiful appearance with superior performance, low fuel consumption, wide operating range.
2. Koop KD2V80 engine,V-Type, 2-Cylinder ,4-Stroke, Euro 5 emission
3. Bulldozer Blade: Strong and durable, Height can be adjusted freely
4. Independent Oil Pipeline, and each tubing is connected independently
5. Liberate the workforce, improve the mechanization, low investment, high return.
Applications for: Often use for small works, small projects, in garden,orchard，farmland,vegetable greenhouse, digging trench and municipal works. designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
| Machine parameters | Dimensions | ||
| Model | CX13T | Overall Length | 2995mm |
| Operating Weight | 1280 KGS | Overall Width | 1055mm |
| Bucket Capacity | 0.025 m³ | Overall Height | 2204mm |
| Rated Power | 12 KW/3000rpm | Arm Length | 793mm |
| Max.Hydraulic System Pressure | 17 Mpa | Boom Length | 1560mm |
| Max. Grade ability | 25% | Track Length | 1290mm |
| Max Walking Speed | 2.6 km/h | Track Width | 1055mm |
| Max Digging Force | 9.6 KN | Platform Width | 905mm |
| Platform Rotary Speed | 10 rmp | Platform Ground Clearance | 405mm |
| Boom swing function | No | Bucket Width | 380mm |
| Working range | Machine configure | ||
| Max. Digging Height | 2740mm | Engine Model | KOOP 2V80 |
| Max Digging Depth | 1650mm | Main valve | Beifang |
| Max. Digging Radius | 3225mm | Main Pump | Jinxing |
| Max Dumping Height | 1970mm | ||
| Radius of Tail Gyration | 850mm | Hydraulic Hose | Germany Contitech |
| Max. Sinking Depth of Bulldozer | 220mm | ||
| Max. Lifting Depth of Bulldozer | 170mm | ||

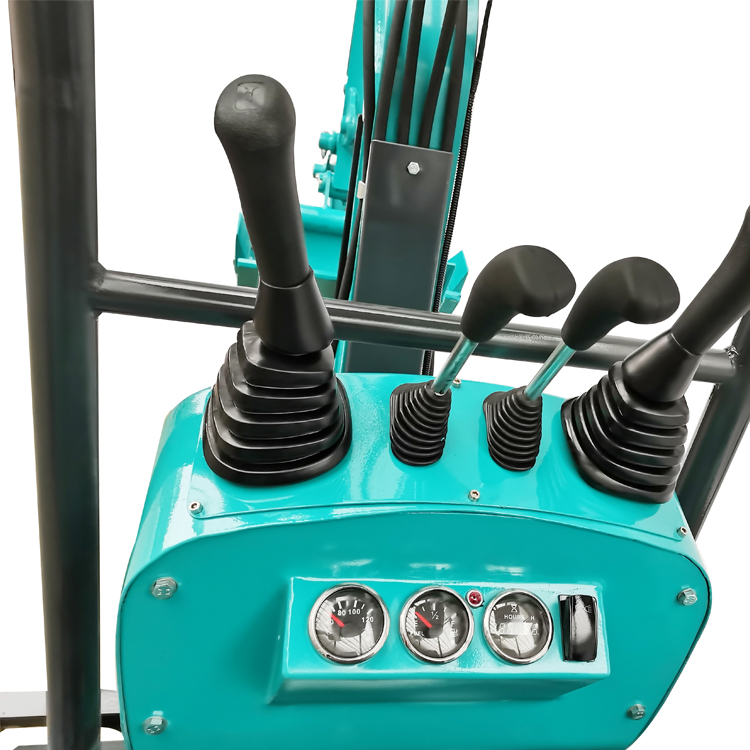

Simple & safe operation

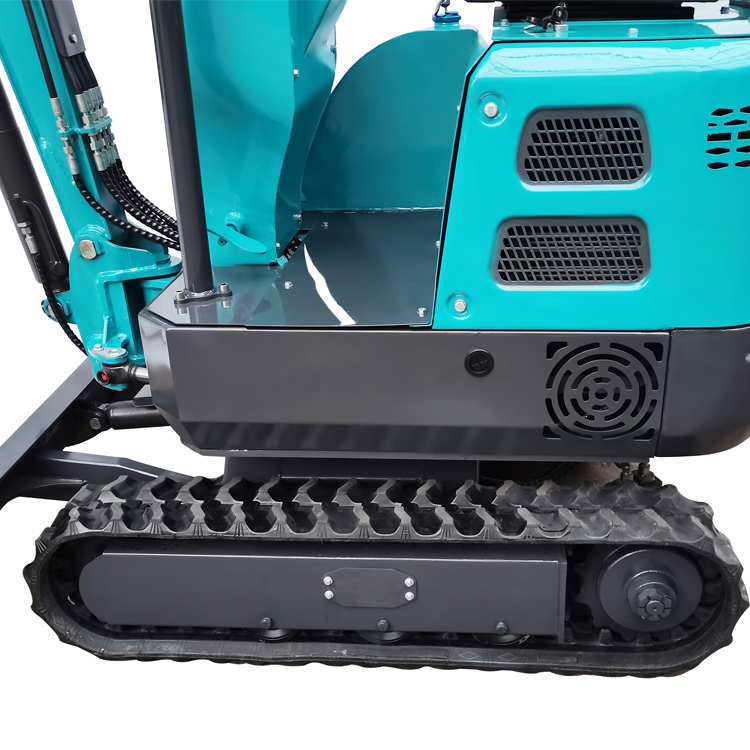

Durable Travel Rubber Crawler

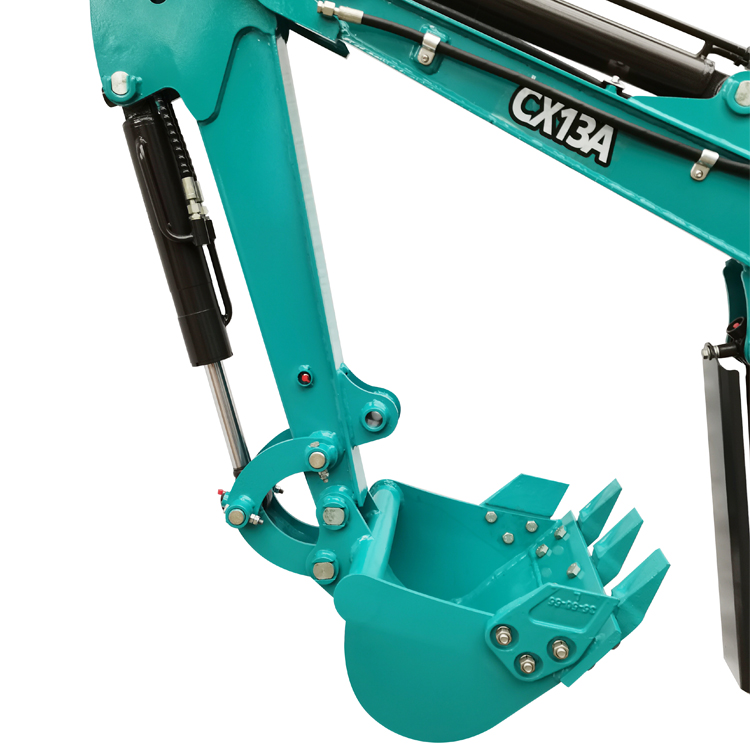

Strongly standard Bucket

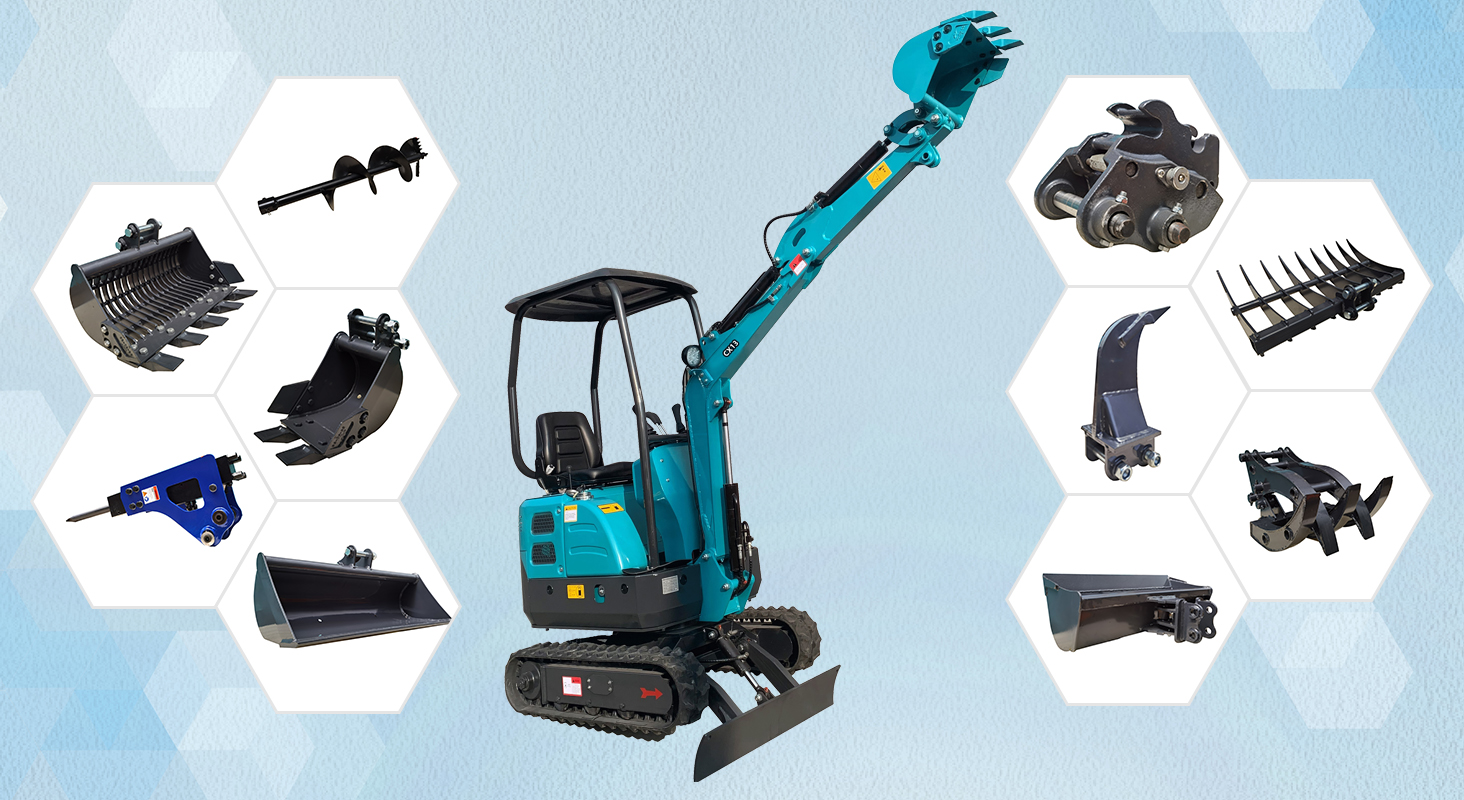

CX13T Micro Digger with accessory
“Quality is our life”, We choose all the spare parts by famous brand and test every machine for 10 minutes after assembly.
Excavator exhibitor show from Ningbo ACE Machinery
