ACE 1000kgs Mini Excavator often used for small works, small projects, in garden,orchard，farmland,vegetable greenhouse, digging trench and municipal works.
Products can adding accessories including breaker hammer, different size of buckets, auger, grapple...etc. Besides, quick hitch is avaliable for faster change.
12 months warranty video support and maintance service..
Features：
1. Original appearance patent design
2. Simple visual operating platform
3. Use single-cylinder Diesel engine that meet Euro 5 Emissions standards
4. With Fixed arm boom
5. Can match different attachment for different purposes , including different size buckets ,hammers,grapples and auger etc
6. Accept ODM&OEM special customization
Applications for: Often use for small works, small projects, in garden,orchard， farmland,vegetable greenhouse, digging trench and municipal works . designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
| Machine parameters | Dimensions | ||
| Model | CX10T | Overall Length | 2750mm |
| Operating Weight | 1020 KGS | Overall Width | 930mm |
| Bucket Capacity | 0.025 m³ | Overall Height | 2140mm |
| Rated Power | 8.6 KW/3000rpm | Arm Length | 793mm |
| Max.Hydraulic System Pressure | 17 Mpa | Boom Length | 1480mm |
| Max. Grade ability | 25% | Track Length | 1220mm |
| Max Walking Speed | 2.6 km/h | Track Width | 930mm |
| Max Digging Force | 9.6 KN | Platform Width | 840mm |
| Platform Rotary Speed | 10 rmp | Platform Ground Clearance | 360mm |
| Boom swing function | No | Bucket Width | 380mm |
| Working range | Machine configure | ||
| Max. Digging Height | 2600mm | Engine Model | KOOP KD192F |
| Max Digging Depth | 1550mm | Main valve | Beifang |
| Max. Digging Radius | 2890mm | Main Pump | Jinxing |
| Max Dumping Height | 1890mm | ||
| Radius of Tail Gyration | 780mm | Hydraulic Hose | Germany Contitech |
| Max. Sinking Depth of Bulldozer | 255mm | ||
| Max. Lifting Depth of Bulldozer | 135mm | ||

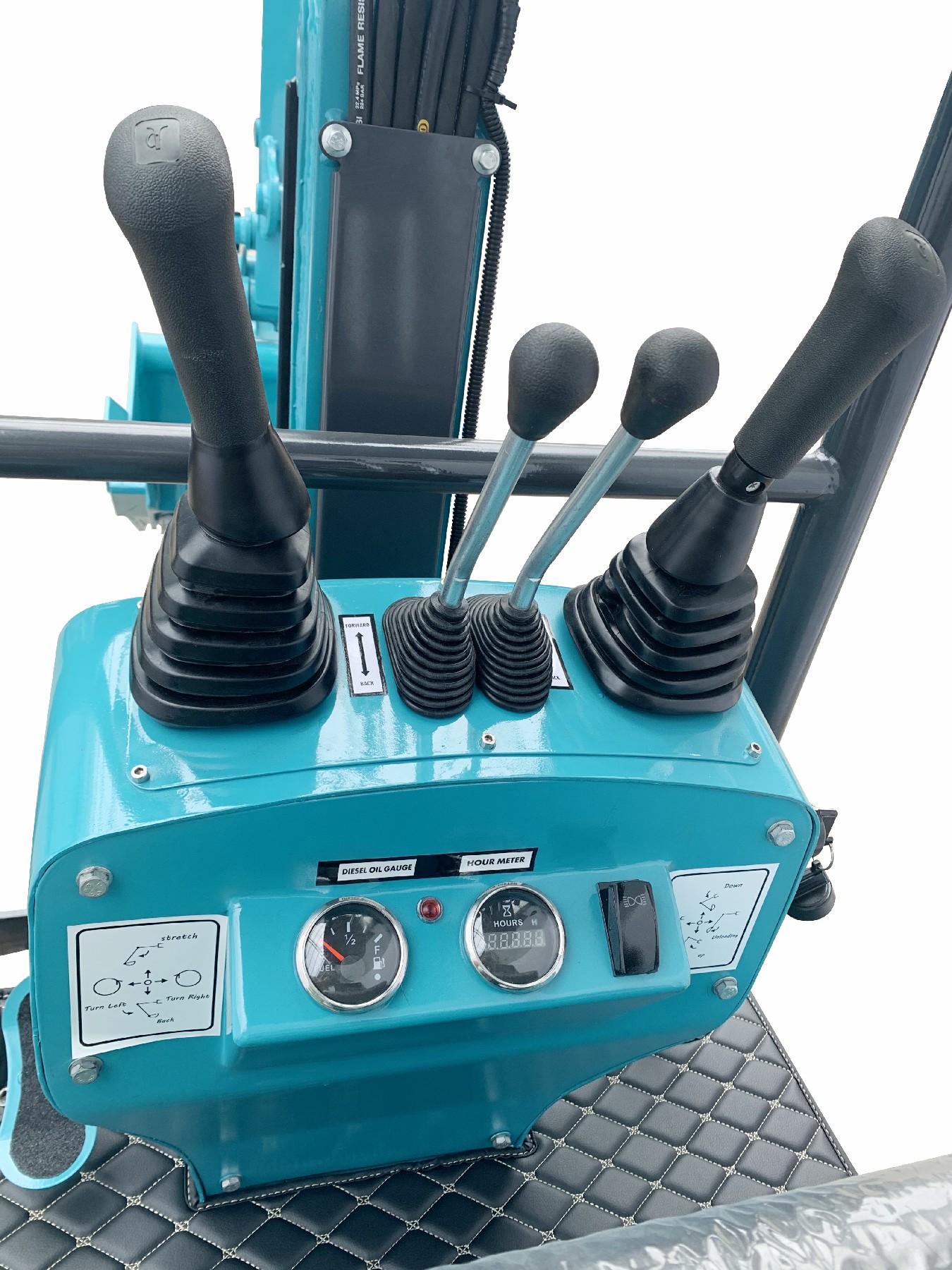

Safe & Simple operation
Strongly & Steady frame

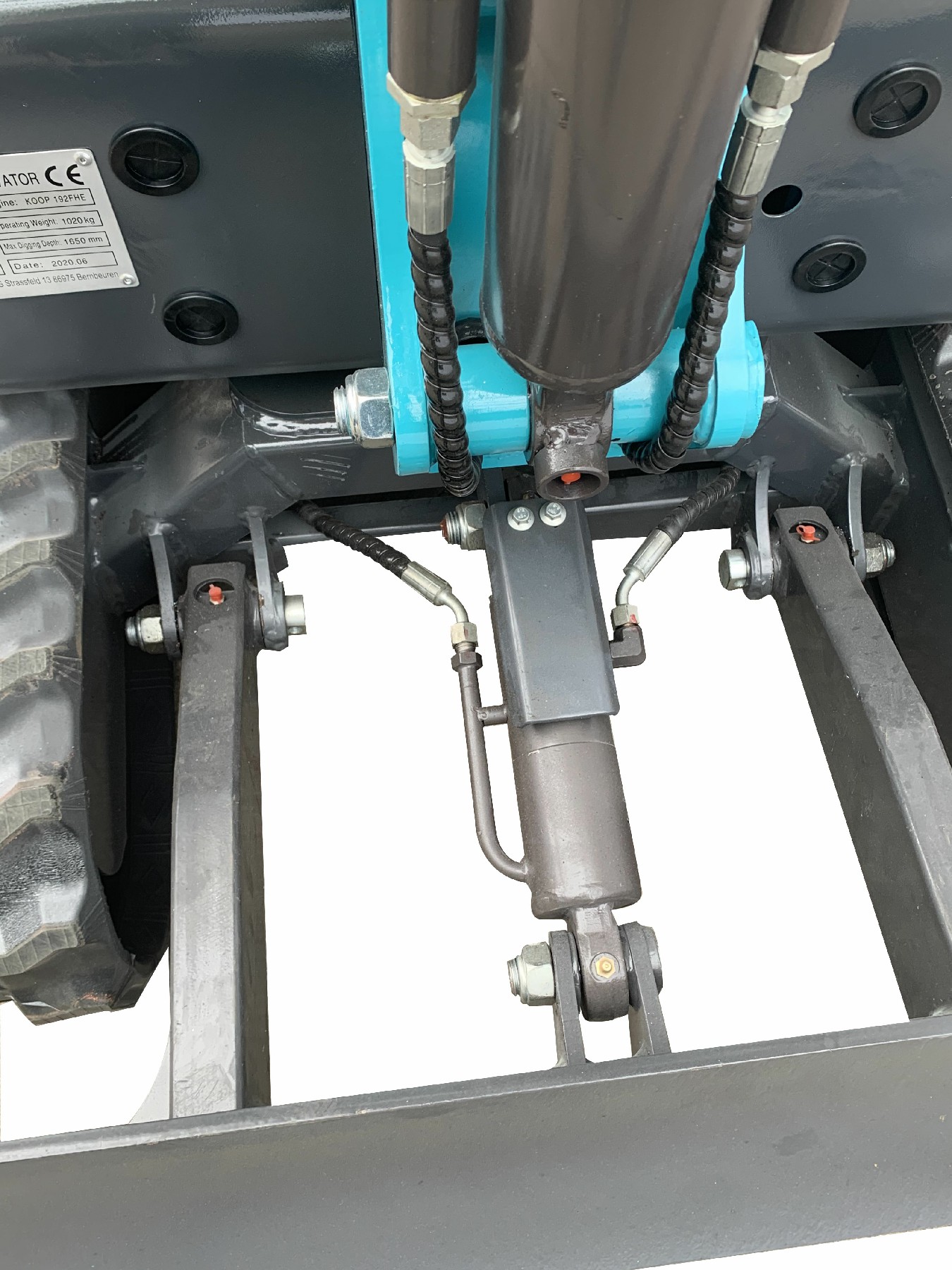

Powerful Dozer at your service

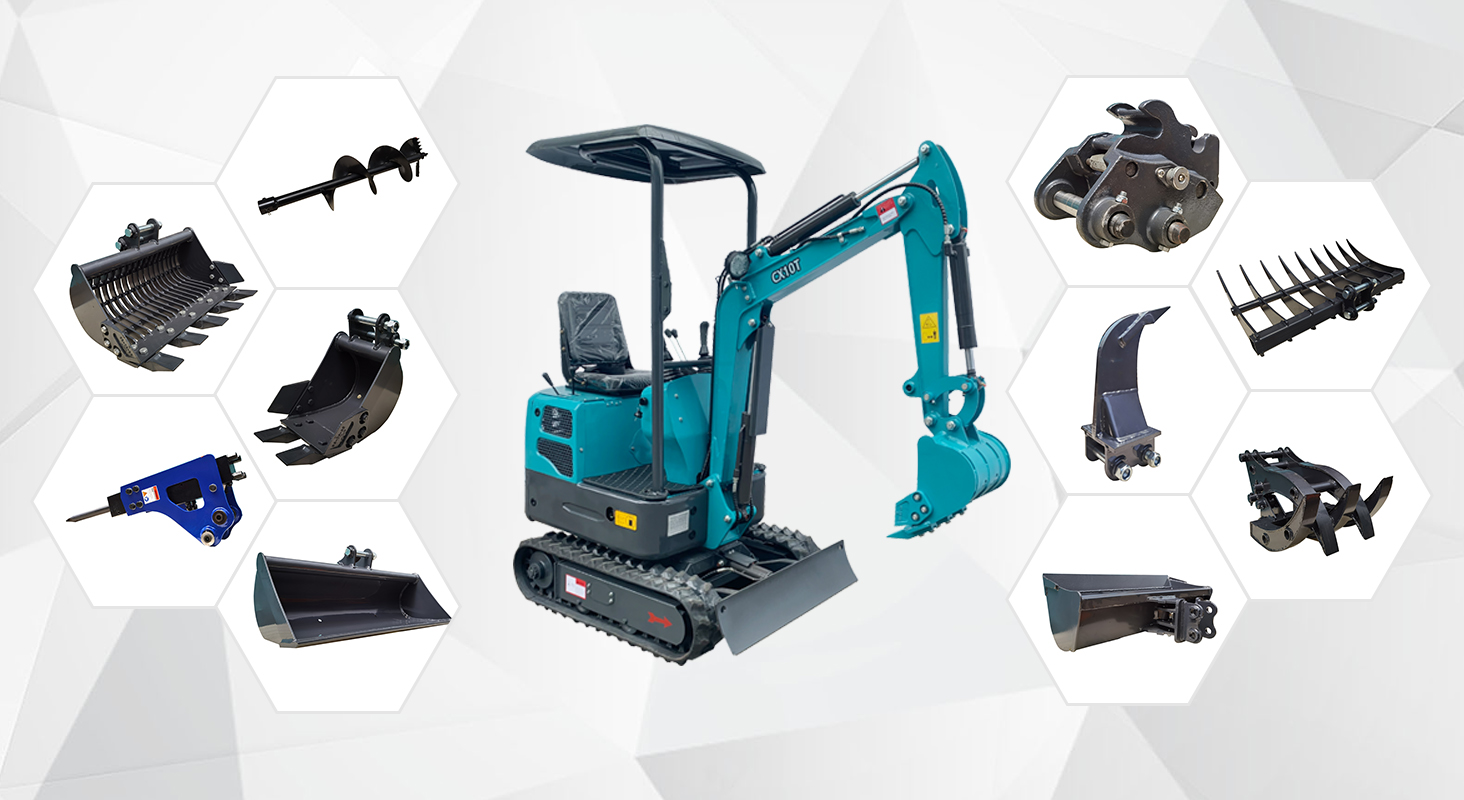

CX10T Mini excavator with different accessory
“Survive on Quality”.We always attach great importance to quality controlling from the very beginning to the very end.
We also obtain worldwide authentication , such as UL, CE, GS and China Gold supplier and so on.
Excavator exhibitor show from Ningbo ACE Machinery

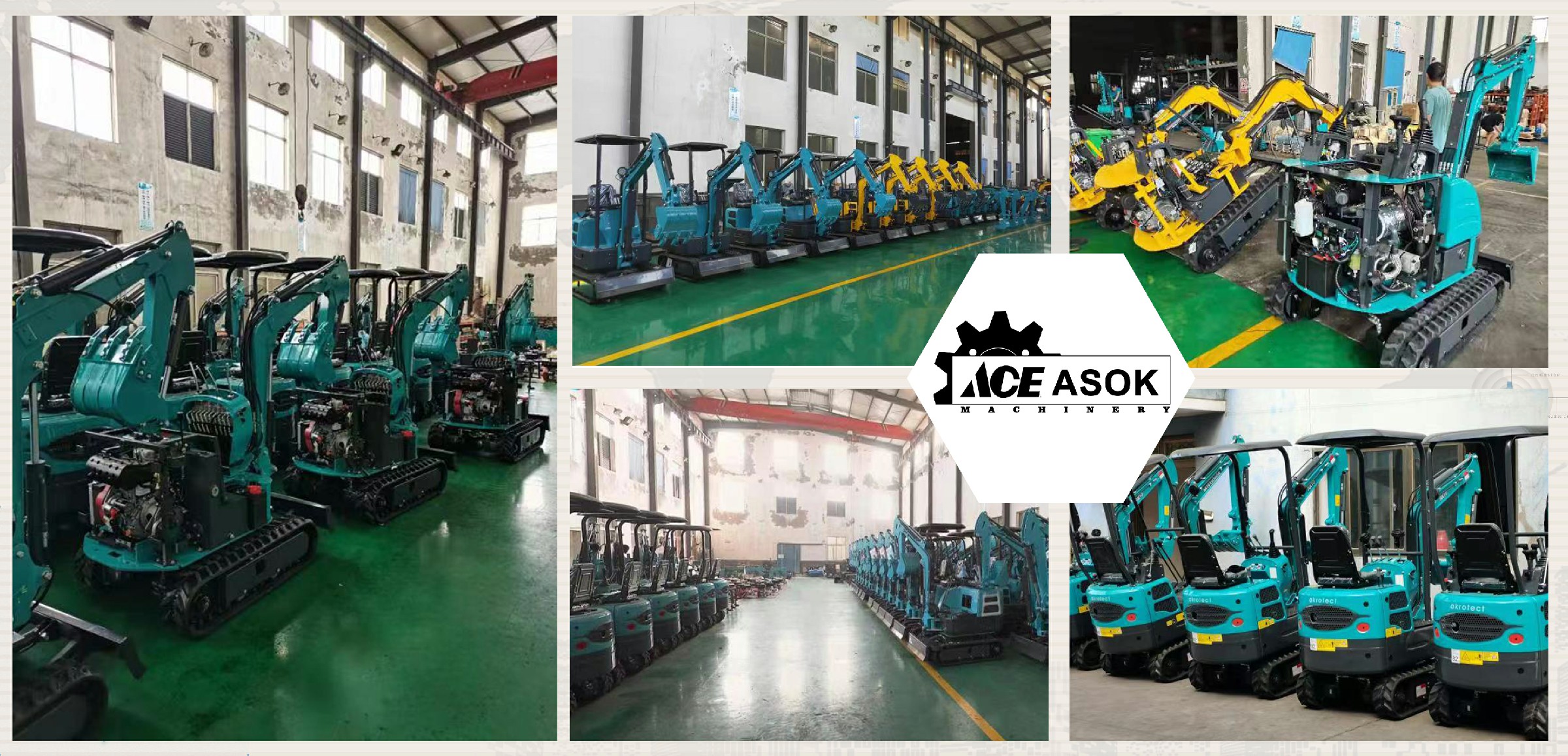

Mini excavator factory show from Ningbo ACE Machinery
