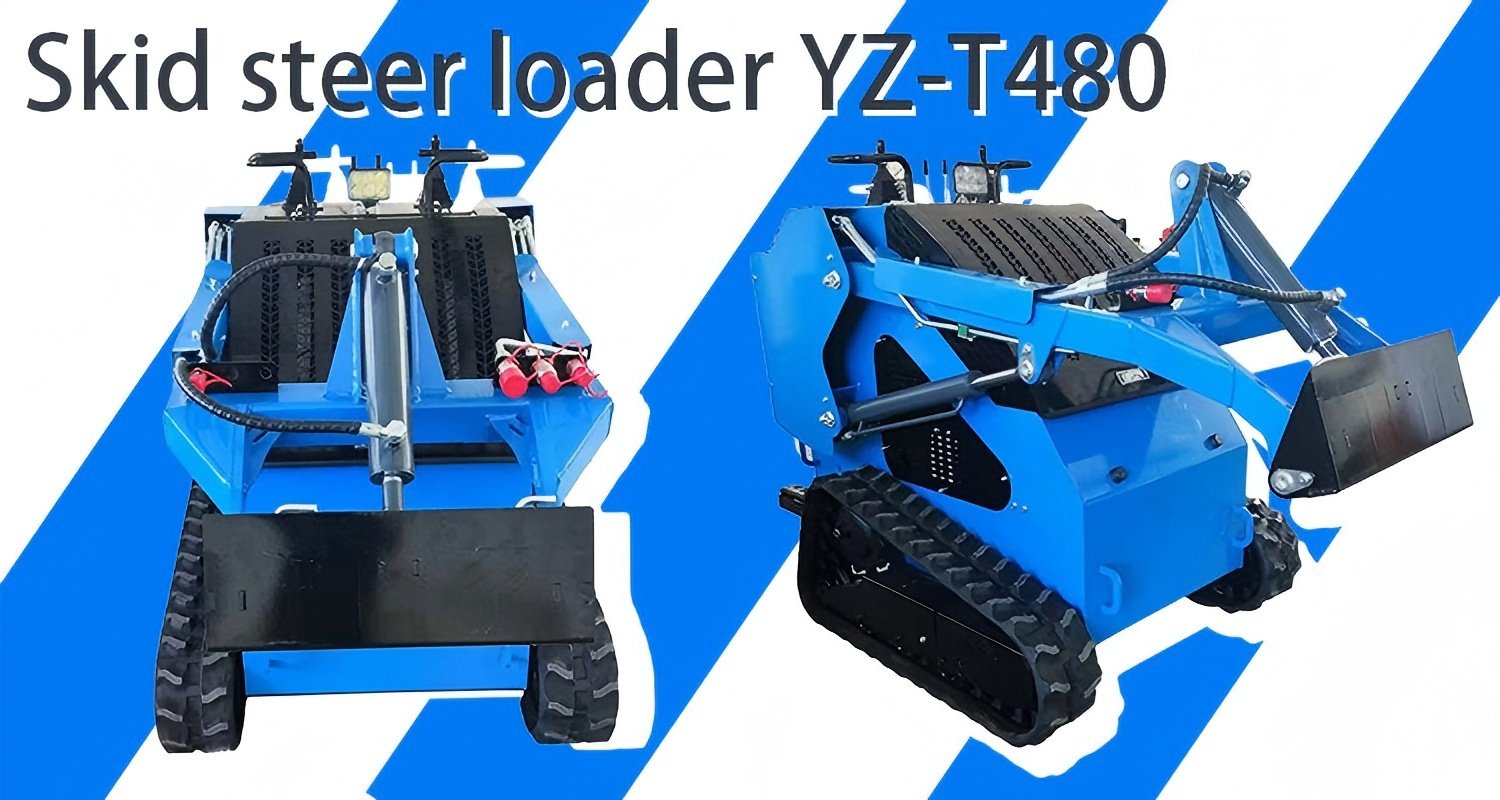

Mini skid steer loader is a kind of small multi-functional engineering machinery, which is widely used in the fields of agriculture, gardening, construction and municipal affairs with its compact body, flexible steering performance and powerful working ability. It is characterized by the adoption of skid steering technology, which can realize zero-radius turning in narrow space and adapt to complex terrain. Equipped with hydraulic quick-change device, it can quickly switch buckets, forklift frames, sweepers, drills and other attachments to meet the diversified needs of excavation, handling, crushing and sweeping.
The power system mostly adopts diesel engine or electric motor to provide stable power output; full hydraulic drive ensures efficient operation. Mini skid steer loaders are easy to operate and low maintenance, ideal for small projects and confined space operations. With high efficiency and versatility, it has become an indispensable equipment in modern small-scale construction.

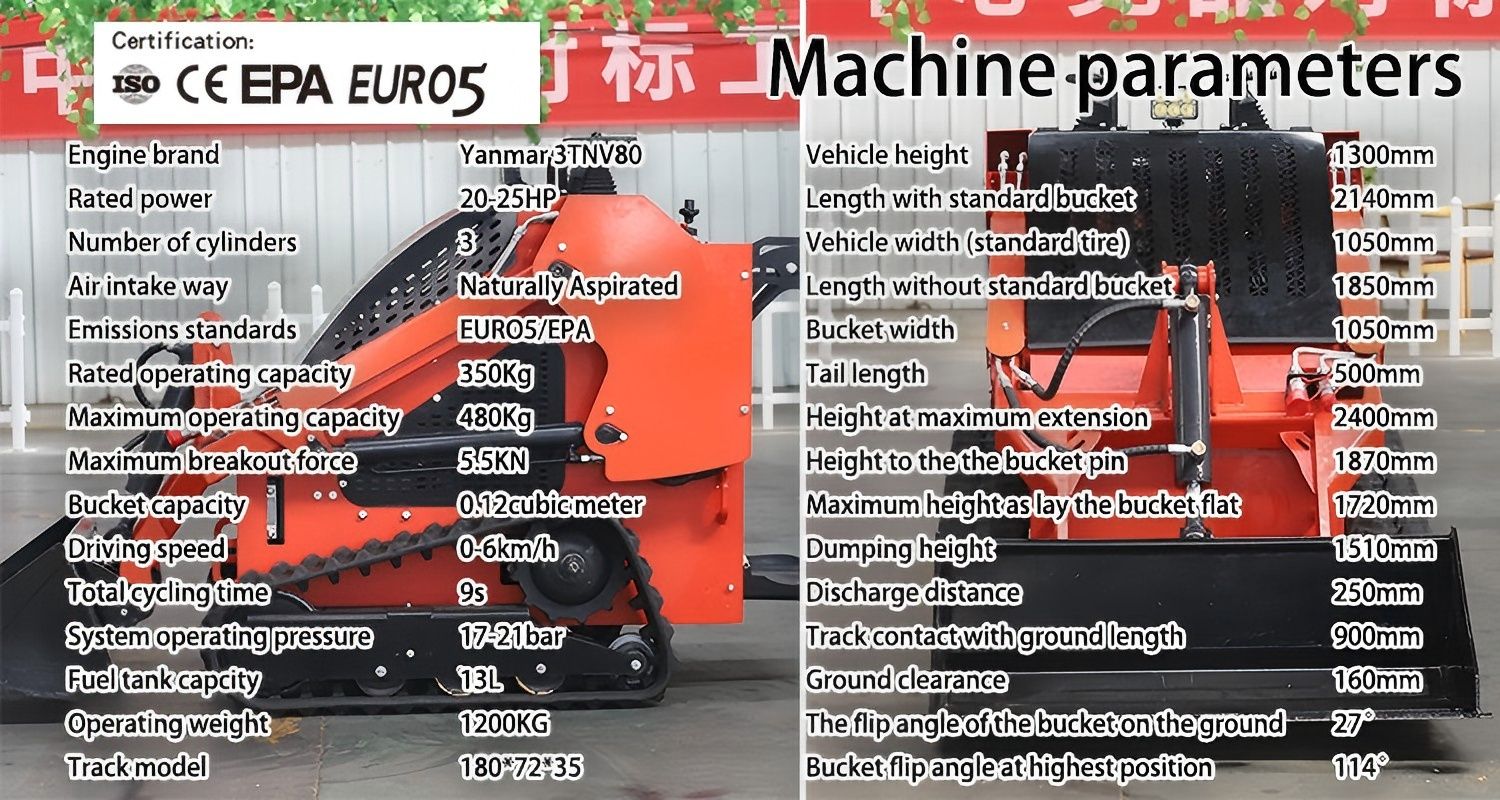

Item name Parameters
Engine brand： Yanmar 3TNV80
Rated power： 20-25HP
Number of cylinders： 3
Air intake way： Naturally Aspirated
Emissions standards： EURO5/EPA
Rated operating capacity： 350Kg
Maximum operating capacity： 480Kg
Maximum breakout force： 5.5KN
Bucket capacity： 0.12m³
Driving speed： 0-6km/h
Total cycling time： 9s
System operating pressure： 17-21bar
Fuel tank capcity： 13L
Operating weight： 1200KG
Track model： 180*72*35
Vehicle height： 1300mm
Length with standard bucket： 2140mm
Vehicle width (standard tire)： 1050mm
Length without standard bucket： 1850mm
Bucket width： 1050mm
Tail length： 500mm
Height at maximum extension： 2400mm
Height to the the bucket pin： 1870mm
Maximum height as lay the bucket flat： 1720mm
Dumping height： 1510mm
Discharge distance： 250mm
Track contact with ground length： 900mm
Ground clearance： 160mm
The flip angle of the bucket on the ground： 27°
Bucket flip angle at highest position： 114°

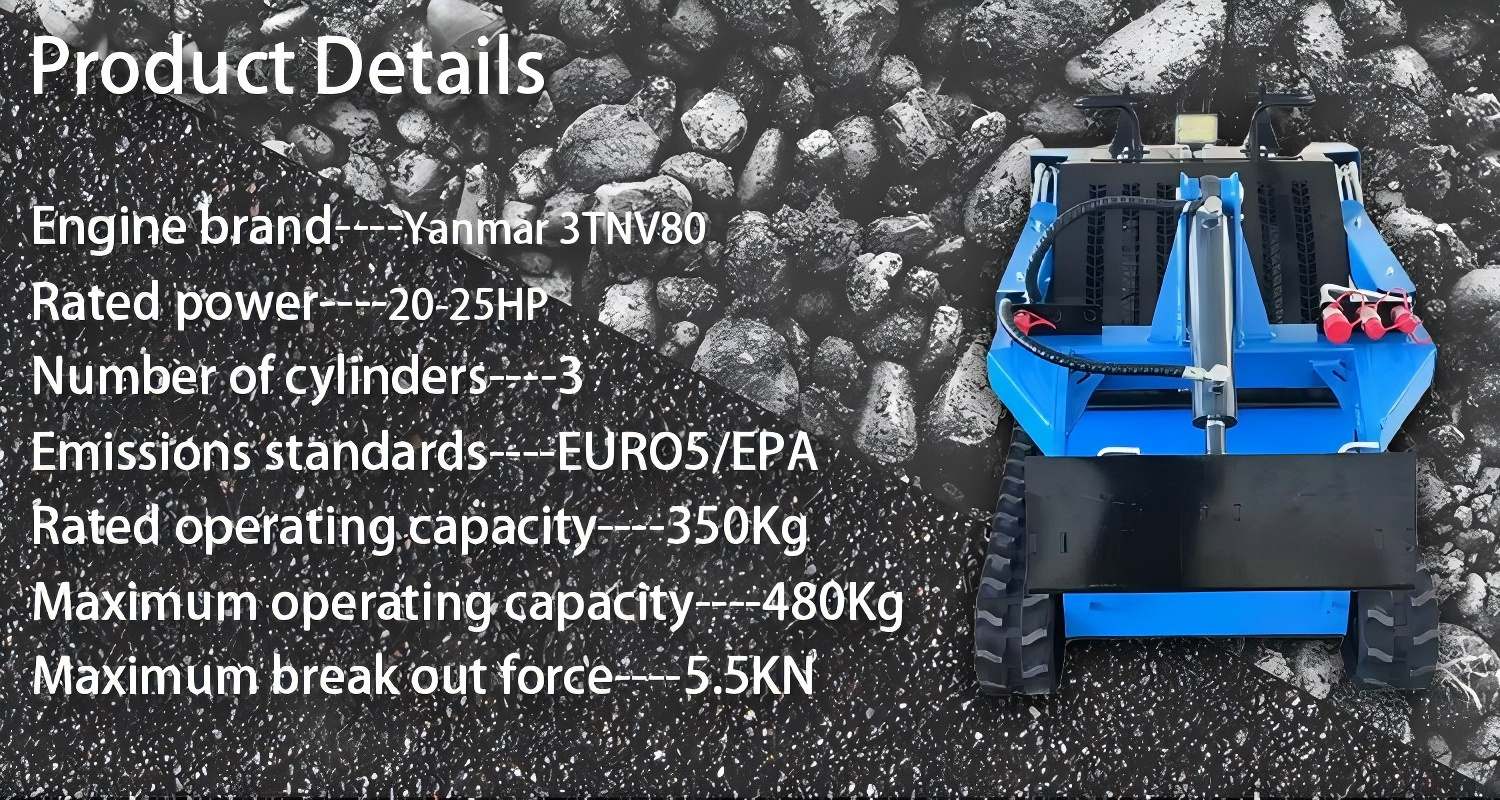

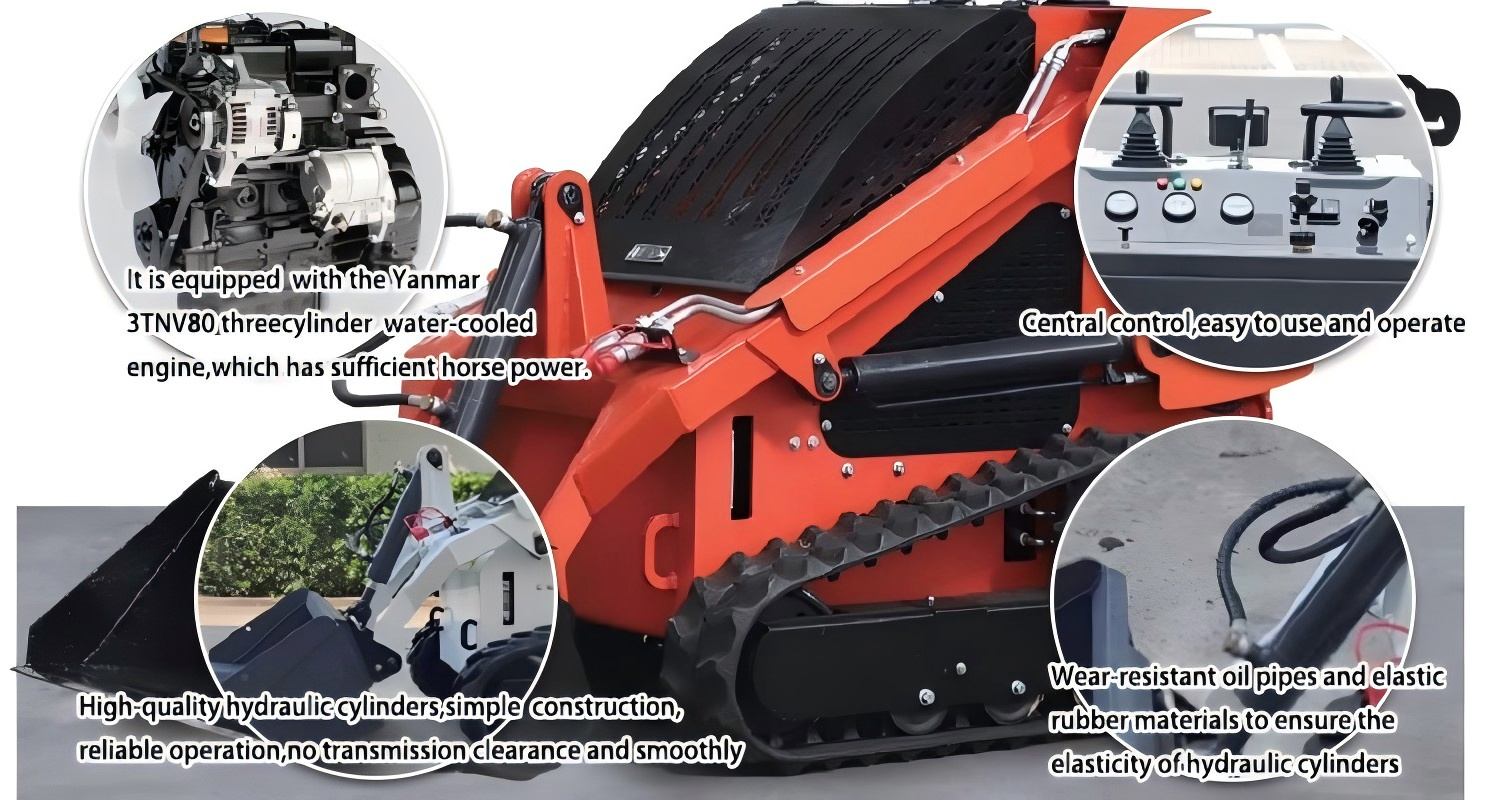

In situations where working in tight spaces requires efficient and multi-functional equipment, the mini skid steer loader becomes the ideal choice with its compact size, powerful and excellent adaptability. This model is equipped with Yanmar 3TNV80 three-cylinder naturally aspirated diesel engine, which complies with EURO5/EPA emission standards and has a rated power of 20-25HP, which combines environmental protection with high efficiency power output, and is suitable for a variety of scenarios such as municipal engineering, agriculture, gardening and construction.
Core Performance Parameters
Operating capacity: rated load 350Kg, maximum load up to 480Kg, meet the needs of small and medium-sized material handling.

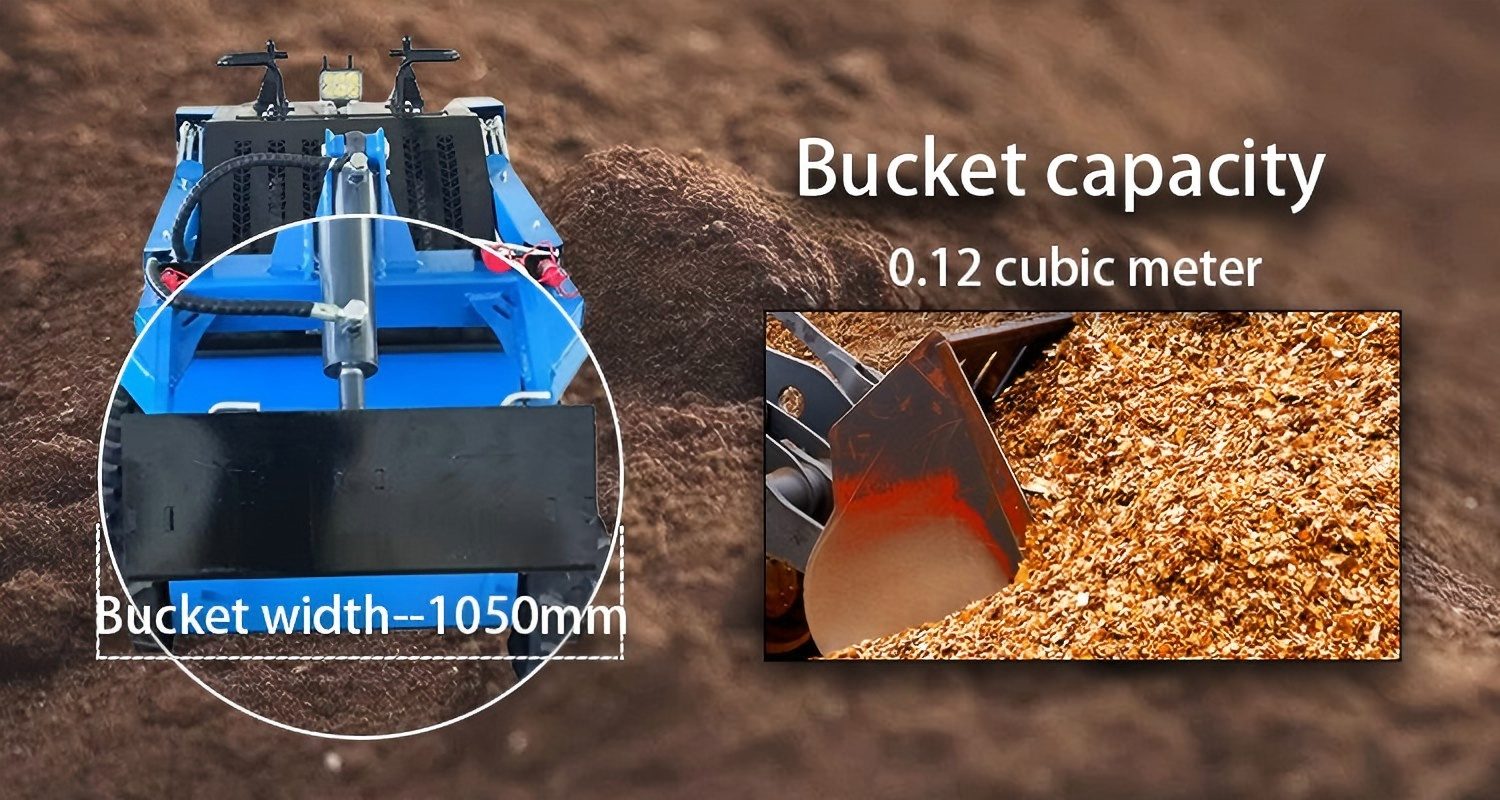

Excavation capacity: Maximum breakout force 5.5KN, with 0.12m³ standard bucket, it can easily cope with loose material excavation and loading tasks.
Maneuverability: Adopting skid steering, 0-6km/h traveling speed, 9 seconds full cycle time, efficient and flexible operation.
Hydraulic system: the working pressure is 17-21bar, ensuring the smooth switching of the attachments, and adapting to a variety of attachments (e.g. forklift frame, sweeper, etc.).
Humanized Design
Fuel Economy: 13L fuel tank capacity guarantees long time operation.

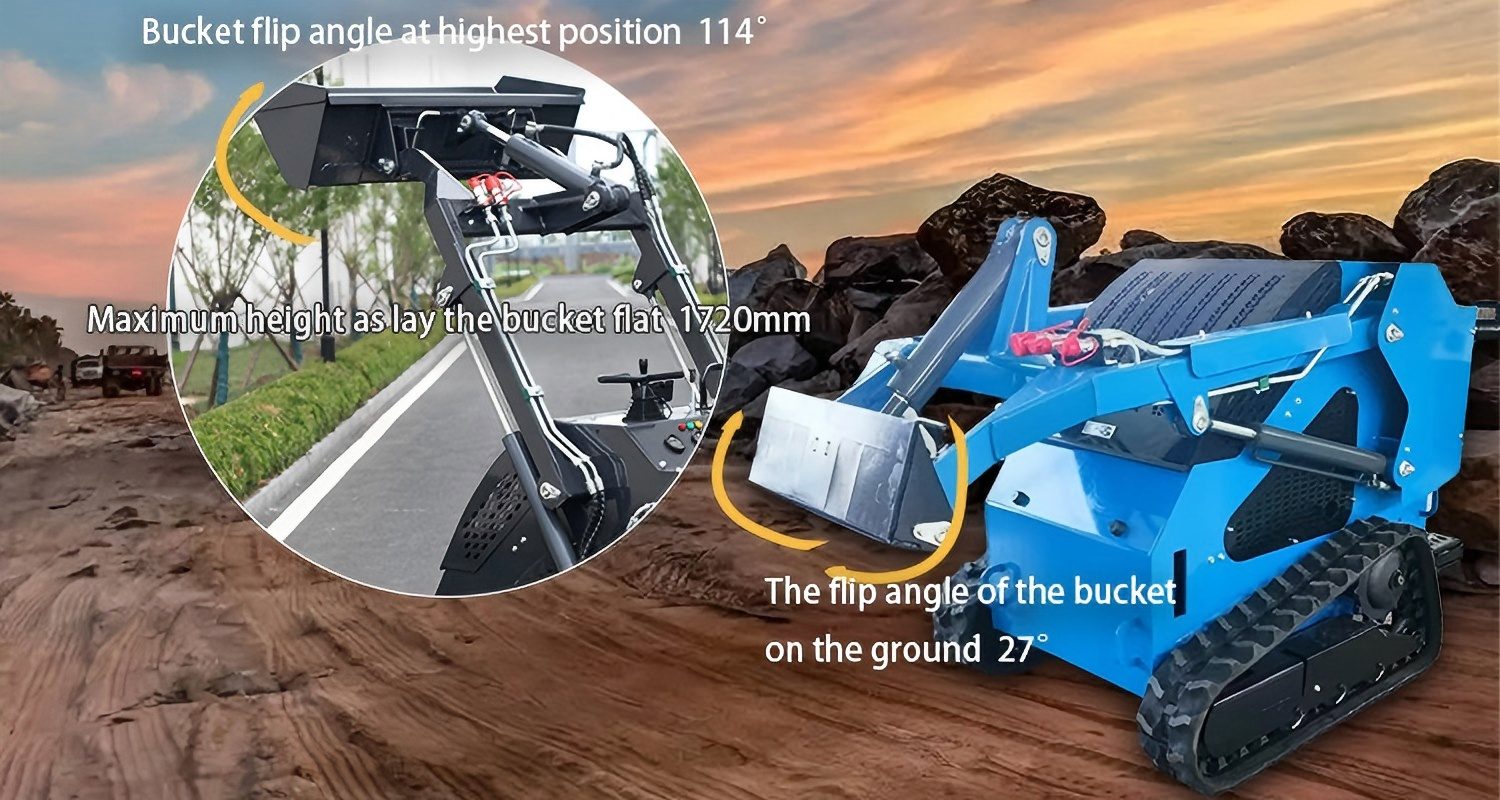

Convenient operation: Bucket turning angle (27° on the ground, 114° at the highest position) optimizes material dumping efficiency.
Compact design, adapts to narrow spaces

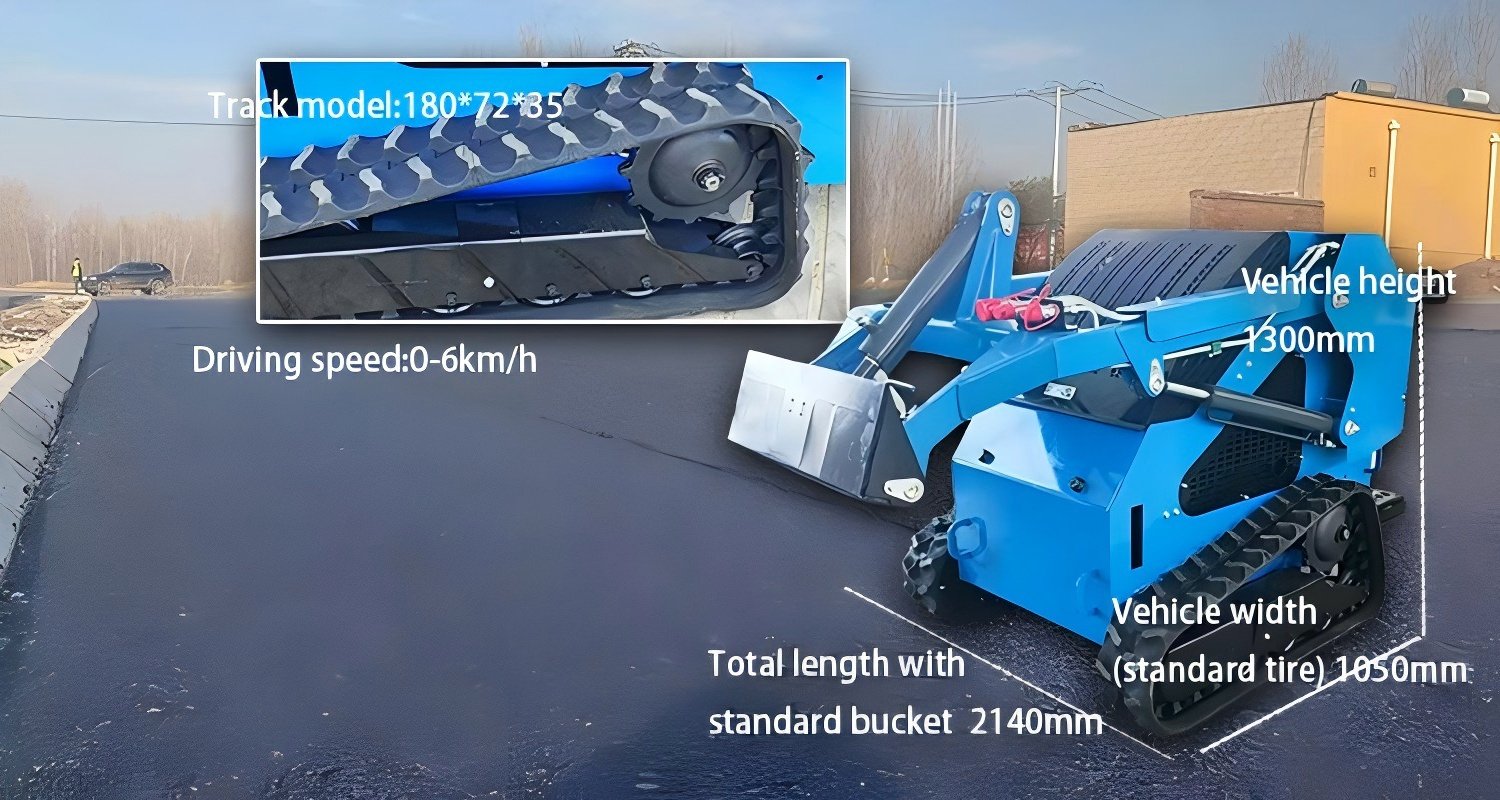

Dimensionally optimized: with a height of only 1,300mm and a standard width of 1,050mm, the vehicle can work freely in low or narrow areas.
Ground clearance: 160mm, balancing stability and passability.
Flexible steering: zero-radius turning capability, suitable for restricted spaces such as warehouses and greenhouses.
Working range and stability
Maximum lifting height: 2400mm (bucket fully extended) for stacking needs.
Unloading height: 1510mm, suitable for loading and unloading small trucks or hoppers.
Ground length of tracks: 900mm, with 180×72×35 size tracks, providing excellent traction and low ground pressure.
