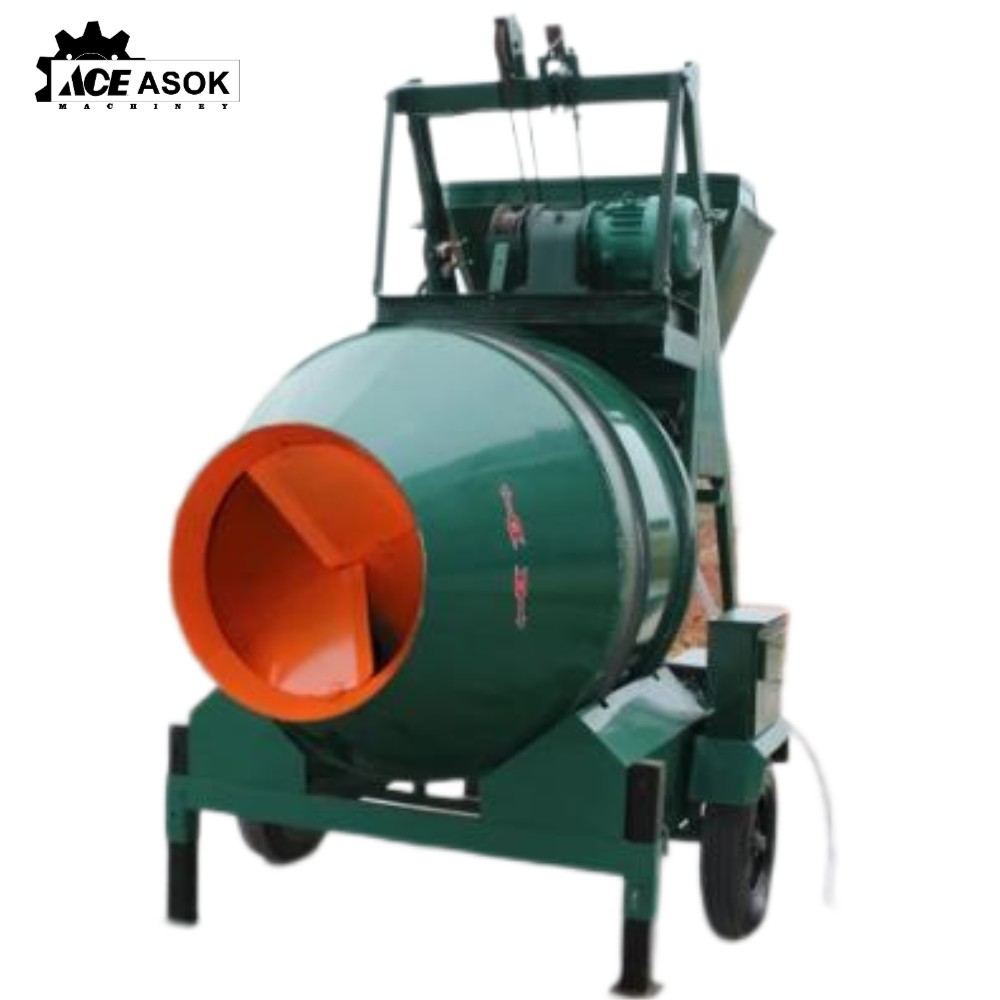

The JZM series concrete mixers are the core construction equipment of the ACE brand, encompassing three models: JZM350, JZM500, and JZM750. All are manufactured in Zhejiang, China, and boast nearly 30 years of experience in machinery export and mature manufacturing processes, making them suitable for various construction scenarios.
This series of products is known for its high efficiency, durability, and flexibility, and is widely used in general construction sites, road construction, bridge engineering, and small precast component factories.
| model | JZM350 | JZM500 | JZM750 |
| Structure | Rotor Type | Rotor Type | Cylinder Type |
| Origin | Zhejiang,China | ||
| Feeding Height | 1370mm | ||
| Vibrating Amplitude | 0.8mm | ||
| Drum Rotation Speed | 14RPM | 13RPM | |
| Max. Size of Aggregate | 60 mm | 80 mm | |
| Color | Green | Green | Yellow |
| Specification | 3000(L)*2100(W)*2500(D)mm | 3900 (L)*2200(W)*2500(D)mm | 4900(L)*2000(W)*4600(D)mm |
| Productivity | 10-14m³/H | 18-20 m³/H | 20-23 m³/H |
| Discharging Capacity | 350 L | 500 L | 750 L |
| Loading Capacity | 560 L | 800 L | 1200 L |
| Mixing Motor Power | 5.5KW | 2×5.5KW | 7.5 kW*2 |
| Hoisting Motor Power | 4.5kw | 5.5kw | 7.5 kW |
| Water Pump Power | 0.55kw | 0.55kw | 1.1 kw |
| Total Weight | 1700 kg | 2500 kg | 3800 kg |
| Machining Process | Welded Molding Machine | Welded Molding Machine | Vacuum |
Packaging Details | The normal package is by big PLASTIC BAG . | 2 Sets Per 40 HQ | |
| 2 Sets Per 20GP, | 1 Sets Per 20GP, | ||
| 4 Sets Per 40HQ | 3 Sets Per 40HQ | ||

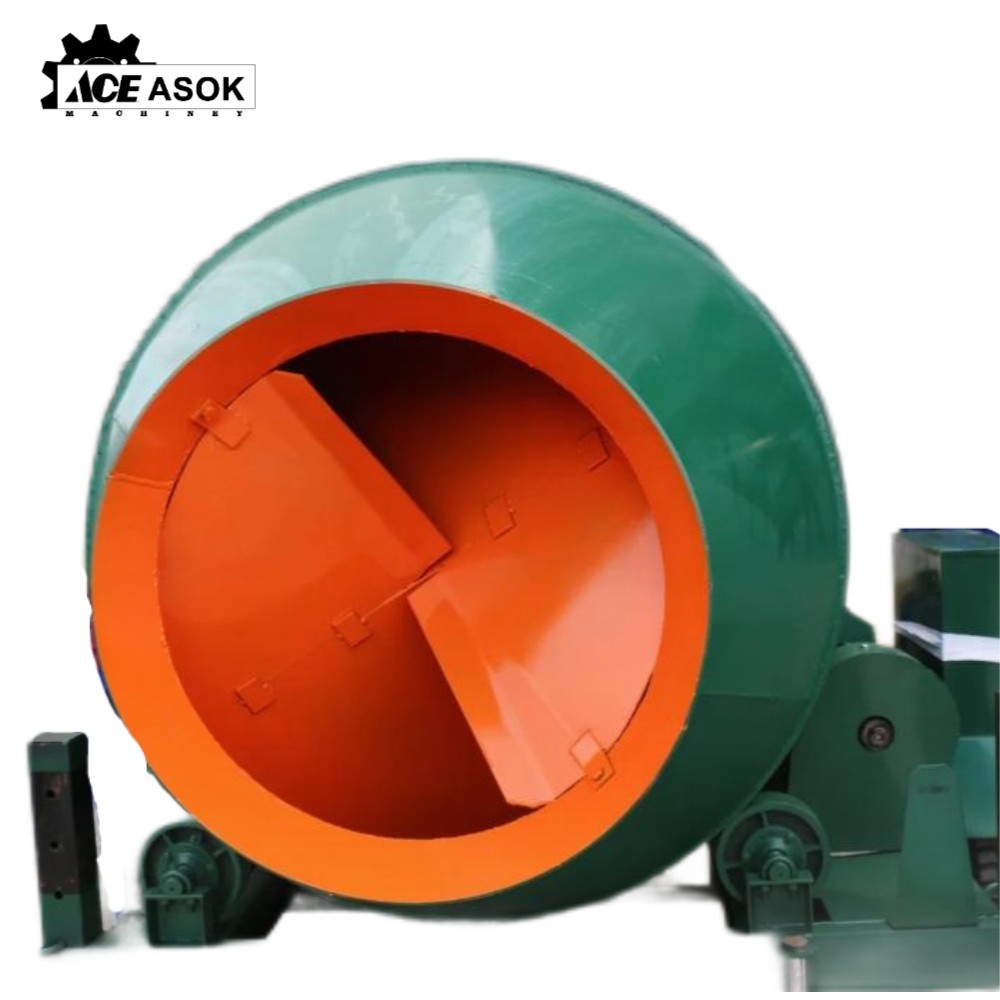

Double Conical Drum Design: Forward rotation for mixing, reverse rotation for discharging, easy operation.
Multi-functional Applicability: Can mix plastic and semi-dry concrete, with a maximum aggregate size of 60–80mm.
Power Options: Supports electric, diesel, or gasoline engines to meet the needs of different operating environments.
Rugged Structure:
Large-capacity water tank mounted on chassis
Steel flexible guide wheels
Strong traction bar
Large-capacity hydraulic oil tank
Large gear ring design with central bolt connection
Complete Certifications: Certified by ISO9001:2000/2015 and other quality standards.
Flexible Packaging: Suitable for container shipping, offering multiple loading options.
You can make your final decision based on the following four dimensions:
| Selection Dimensions | JZM350 is preferred | JZM500 is preferred | JZM750 is preferred |
| Project Scale and Budget | Small projects, limited budget | Medium-sized conventional projects, prioritizing cost-effectiveness | Large projects, sufficient budget |
| Production Efficiency | Demand ≤ 14 m³/h | Demand 18-20 m³/h | Demand ≥ 20 m³/h |
| Power Requirements | No stable power supply, prefers diesel | Stable power supply, prefers electric | Most flexible power requirements, diesel if no electricity, electric if available |
| Site and Mobility | Confined space, requires frequent relocation | Moderate space, fixed or semi-fixed operation | Open space, fixed operation |
JZM350: An entry-level and cost-effective choice. Its compact size and light weight make it ideal for rural self-built houses, small construction sites, DIY projects, and other scenarios with limited working space and low concrete volume requirements.
JZM500: The most balanced and common model. It achieves a good balance between production efficiency and equipment size, with powerful performance (dual mixing motors), making it ideal for routine projects such as ordinary construction sites and road construction.
JZM750: The flagship model of the series. It boasts the largest capacity, highest production efficiency, and most flexible power configuration. Its powerful dual motors and heavy-duty design make it perfectly suited for large-scale construction projects, bridge engineering, ready-mixed concrete plants, and other applications with extremely high requirements for output volume and continuous operation.
