Construction Equipment
VR

Having invested a great deal of funds to technology research and product development,Ningbo Ace Machinery Co.,Ltd. has successfully worked out 500mm Gasoline engine Double Blades Concrete Floor Cutter. After years of special research and development, the products developed successfully break through the bottleneck of the pain points. Ningbo Ace Machinery Co.,Ltd. always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.

Applicable Industries:Hotels, Machinery Repair Shops, Manufacturing PlantShowroom Location:Canada, Turkey, France, Peru, Mexico
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Marketing Type:New Product 2020Warranty of core components:1 Year
Core Components:EngineCondition:New
Place of Origin:Zhejiang, ChinaBrand Name:ACE
Cutting Depth:180mmRotary Speed:3200rpm
Voltage:gasolinePower:9500
Weight:142kgDimension(L*W*H):980*610*1080mm
Running Speed:1-2m/minWarranty:1 Year, 12 Month
UNIQUE SELLING POINT:High operating efficiencyAfter-sales Service Provided:No overseas service provided, Video technical support, Online support
Product name:500mm Gasoline engine Double Blades Concrete Floor CutterApplication:road cutting machine
Power source:gasoline engineWater Tank capacity:25L
Packing way:hob with cartonDepth Adjustment:Hand Rotation
Relating Model for Option:QF-300/350/400After Warranty Service:Video technical support, Online support
Local Service Location:Canada, Turkey, France, Peru, MexicoCertification:CE

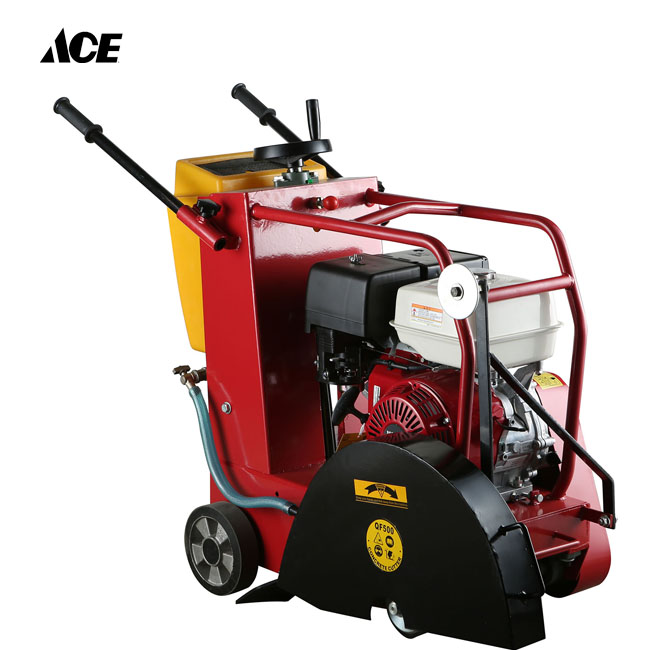

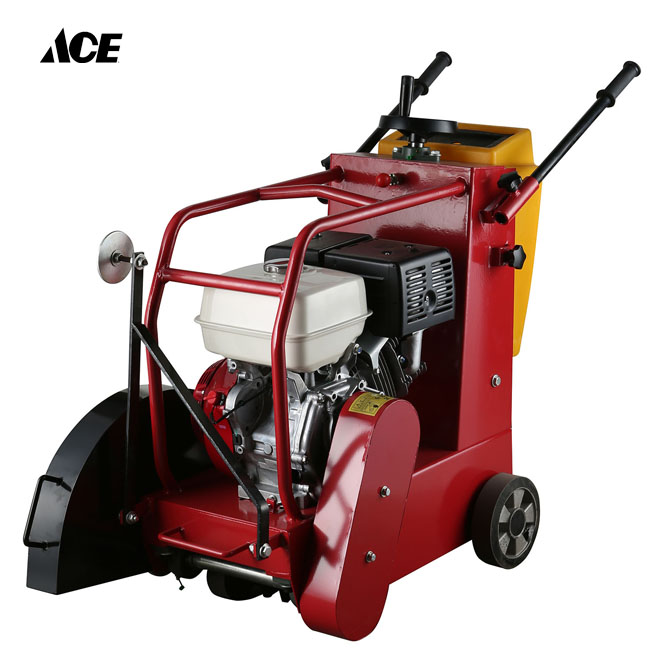

500mm Gasoline engine Double Blades Concrete Floor Cutter



Feature:
1)Super-rigid box frame ensures straight cuts while resisting warping and vibration prolongs saw life;extends blade life.
2)Japanese shaft bearings for long service life.
3)Comfortable grip handles.
4)Easy crank for raising/lowering cutting depth.
5)Hinged front,life-up blade guard is designed to provide easy blade replacement.
6)Easy-remove,rustless poly water tank provides an optimum flow and volume of water to the blade



MODEL:

QF-500

ENGINE type

Single-cylinder,4-stroke,air-cooled,OHV,Gasoline enigne

ENGINE

PetroL engine, GX390

PetroL engine,   188F

Diesel engine , 186F

POWER(HP)

13.0HP

13.0HP

9.0HP

Cutting Deepth

150 mm ~ 170mm

Dia of blade

450mm ~600mm

Running speed

3200 rpm

Depth Adjustment

Handle Rotating

Driving

Manual Push

Water Tank Capacity

25L

G.W./N.W.

142kgs/120kgs

packing size

98*61*108cm
