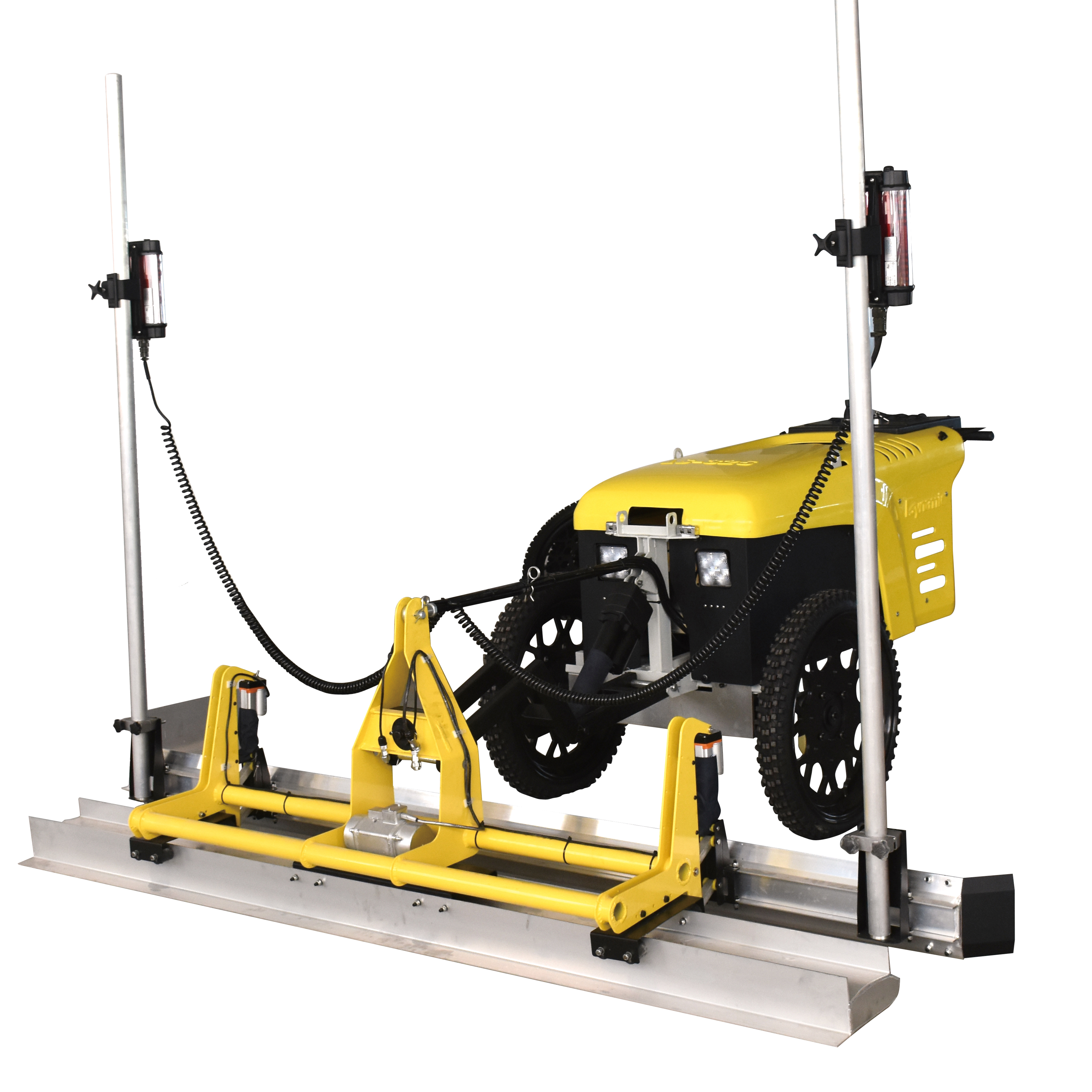

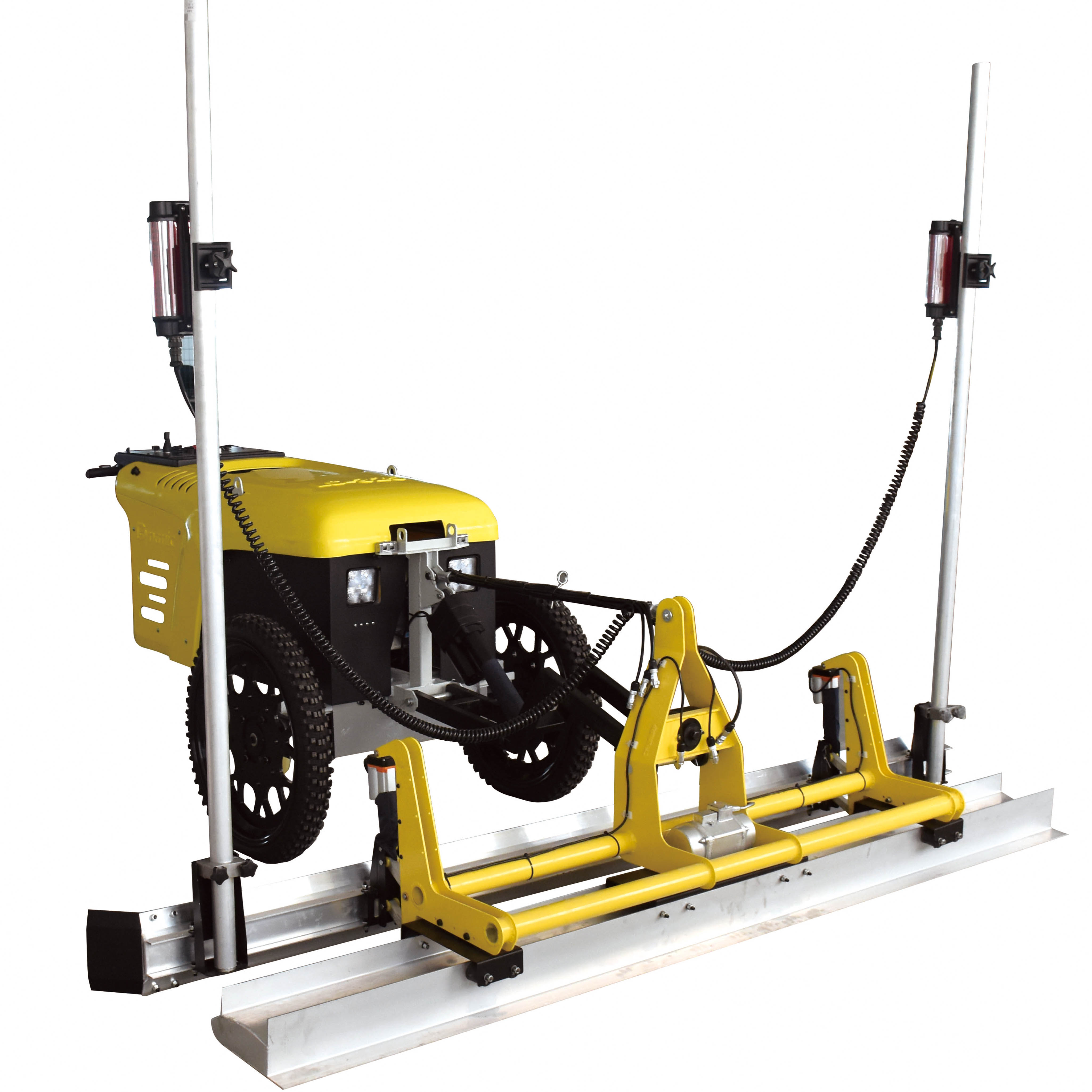

The LS-325 Laser Leveler is equipped with a 2.6kW Honda EC2500CX engine, which is a single-cylinder four-stroke generator set.
The laser leveler uses a Switzerland laser receiver with an effective receiving distance of 300 meters. The accuracy of the blind zone is ≤±2.5mm, ensuring precise leveling.
It features an Italian PHASE transmission system, offering stepless adjustment and a rotation speed greater than 1:2.5, allowing for precise control during the leveling process.
The LS-325 Laser Leveler is equipped with a liquid level sensor automatic adjustment system, ensuring consistent and accurate leveling even on uneven surfaces.
The machine provides a centrifugal force of 100kg, which aids in effective compaction during the leveling process.
The working length of the LS-325 Laser Leveler is 2.6 meters, allowing for efficient and consistent leveling over a considerable area.
The laser leveler is equipped with computer control, enabling automatic adjustment of the scraper for precise and efficient leveling operations.
| ITEM | LS-325 Laser Screed | ||||||
| Engine type | Generator Honda EC2500CX (2.6kw, Single cylinder four stroke generator set) | ||||||
| Laser Generator | LEICA(Switherland) (635nm visible laser,self-leveling, level error≤±1.5mm/30m, effective launch distance 300m) | ||||||
| Laser Receiver | LEICA(Switherland) (effictive receiving distance 300m, accuracy of dead zone≤±2.5mm) | ||||||
| Control System | AC SERVO system | ||||||
| Drving System PHASE(Italia) | stepless adjustment, turning faster than 1:2.5 | ||||||
| Airframe Adjustment system | Level sensor automatic adjusting system | ||||||
| Wheel tyre | 733nm ATV(1.8-2.2BAR) or 3.0-21 narrow tyre(1.6-2.1 BAR) | ||||||
| Vibrating System | Eccentric vibration motor. 3000HZ | ||||||
| Centrifugal force | 100kgs | ||||||
| Vibrating plate | Aluminum alloy | ||||||
| Scraper blade | Aluminum alloy | ||||||
| Scraper adjustment | Computer control, automatic adjustment | ||||||
| Working length | 2.6M | ||||||
| Reverse Speed | 2.5km/h | ||||||
| Min. Ground Clearance | 355mm | ||||||
| Ground Flatness | ≦±2mm | ||||||
| The Ground elevation error | ≦±7mm/100m | ||||||
| Max. working Radius | ≦200m | ||||||
| Working Efficiency/hour | 200m²/h--350m²/h | ||||||
| Weight | 220kgs | ||||||
| Shipping weight | G..W.: 504KGS | N.W.: 352KGS | |||||
| Packing | box 1: 2650×1110×1200MM box 2: 2650×580×820MM | ||||||
