Electric Tamping rammer with 10.0Kn Vibrating force, is suitable especially for compacting the roadbed with low water content that heavy compactor could not work.Electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot through spring cylinder. It has strong impact force though it is small and light.

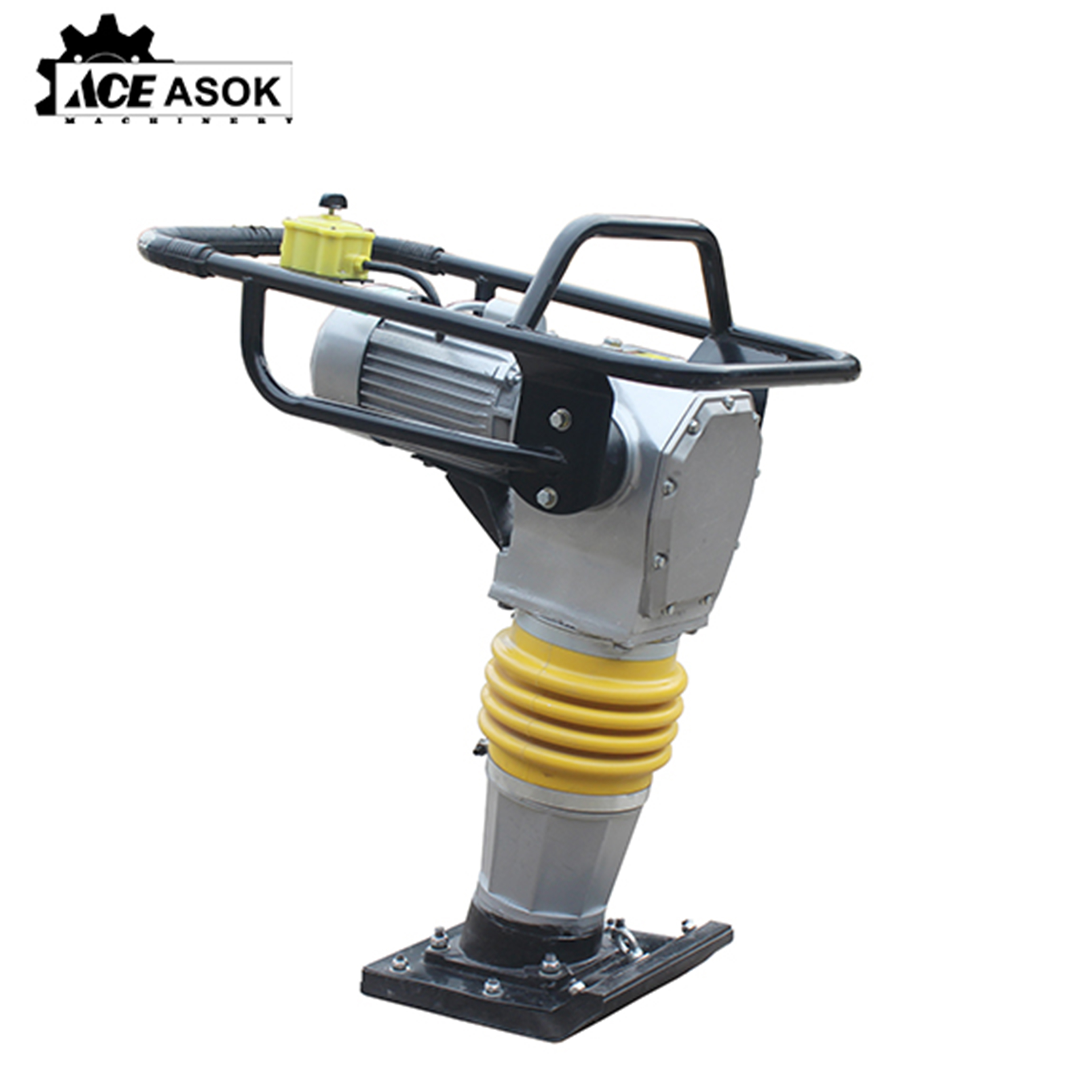

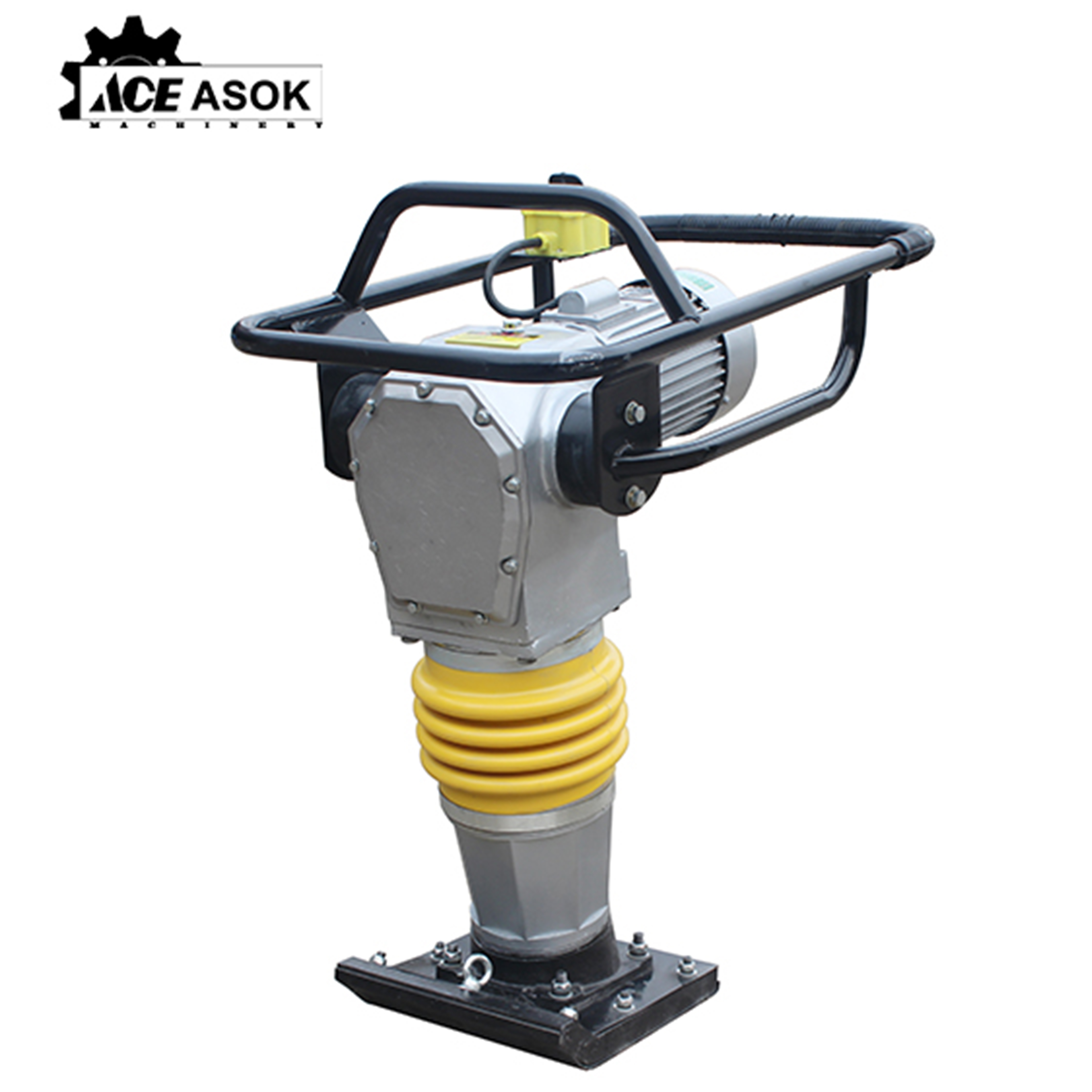

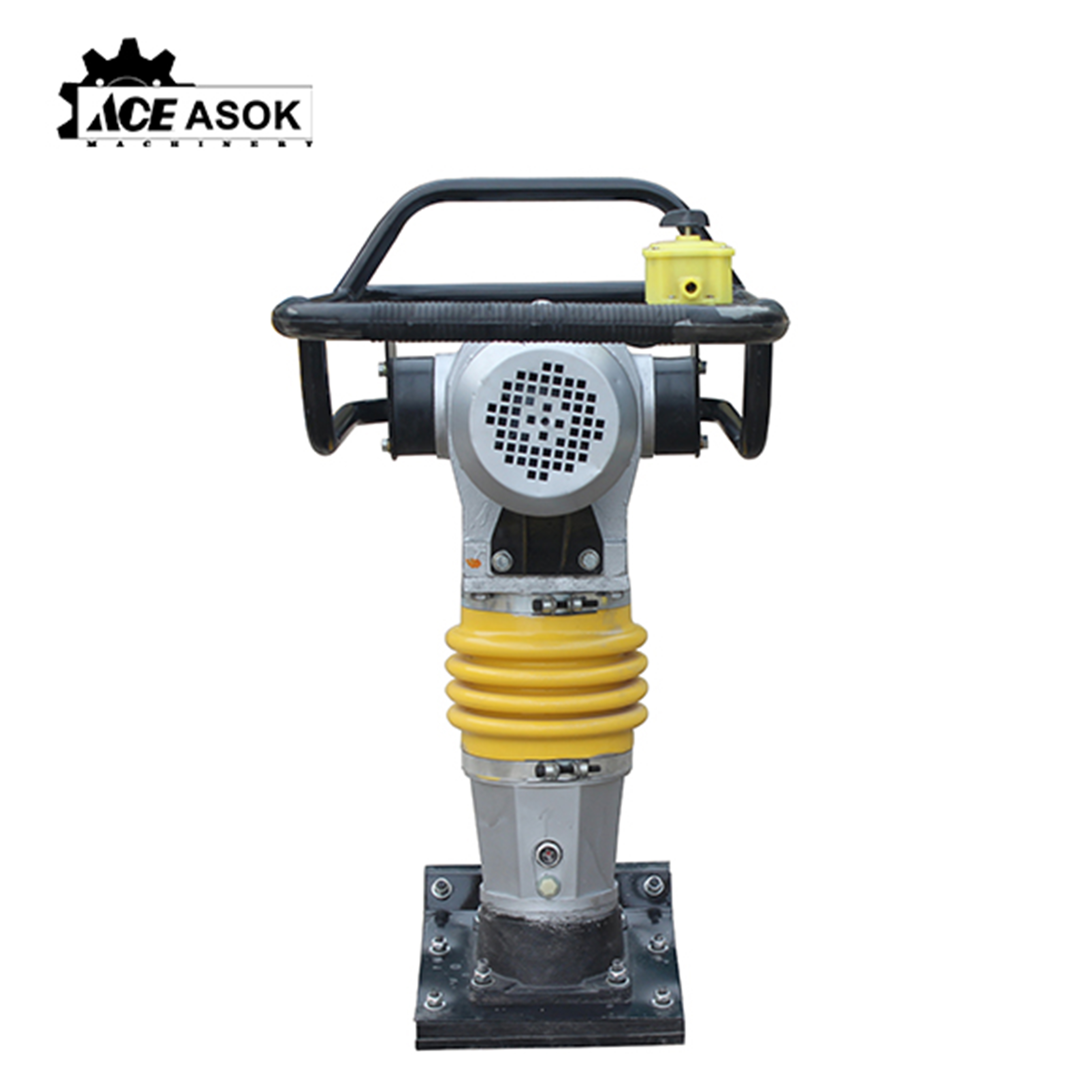

68KGS Tamping rammer with 10.0kn centrifugal force

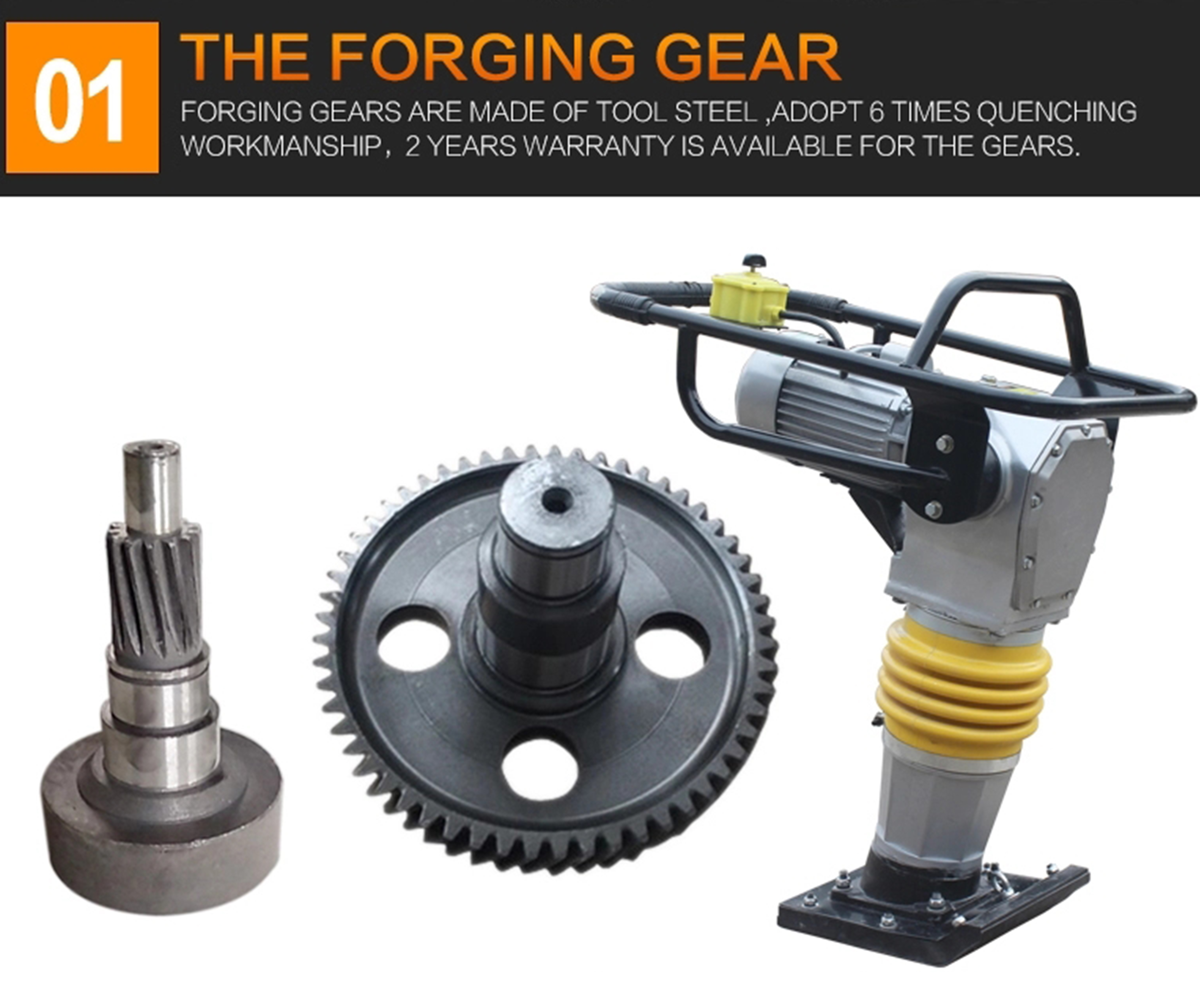

Forging gears are made of tools steel,adopt 6 times quenching workmanship,2years warranty is availabel for the gears

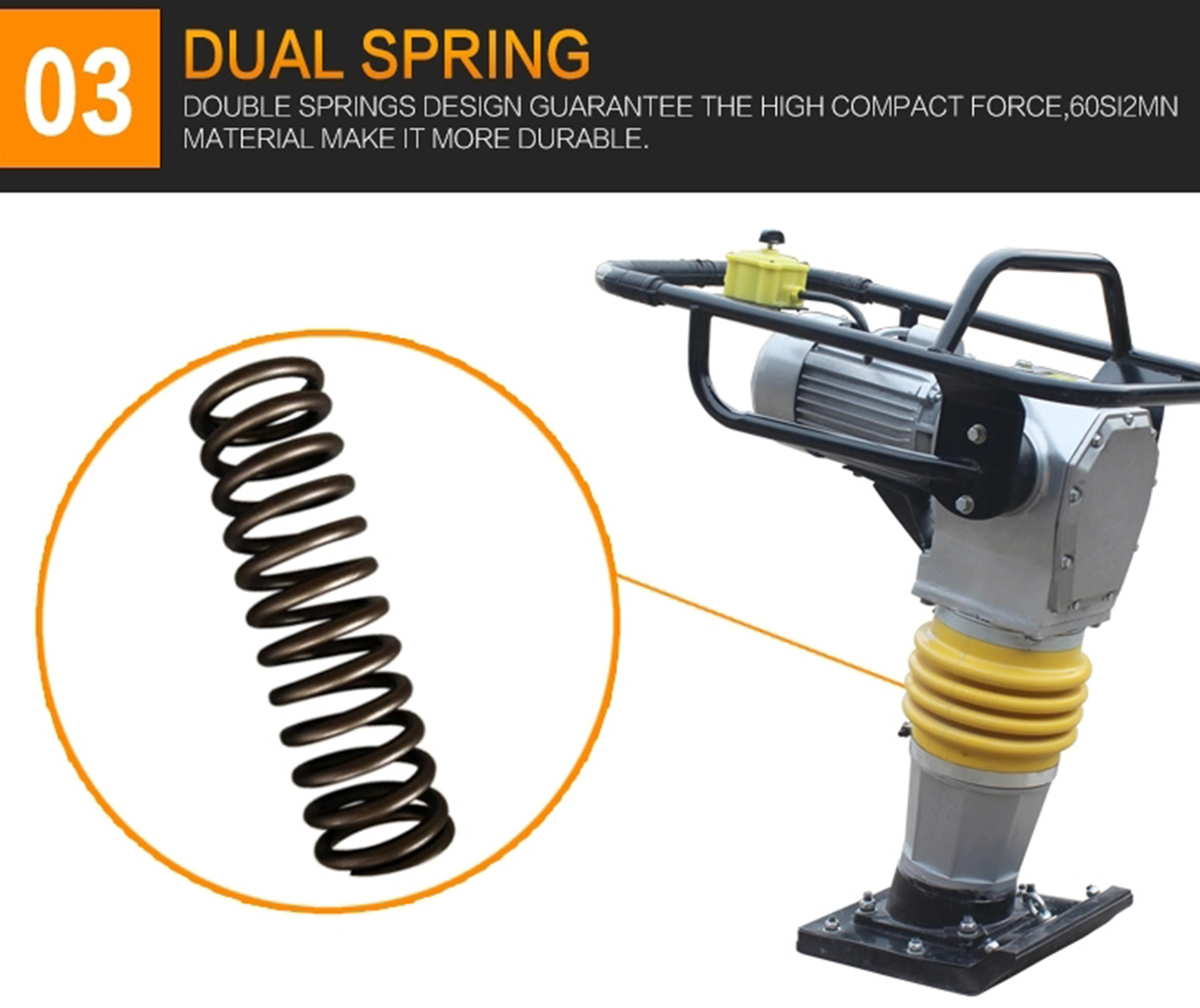

Double springs design guarantee the high compact force,60SI2MN material make it more durable

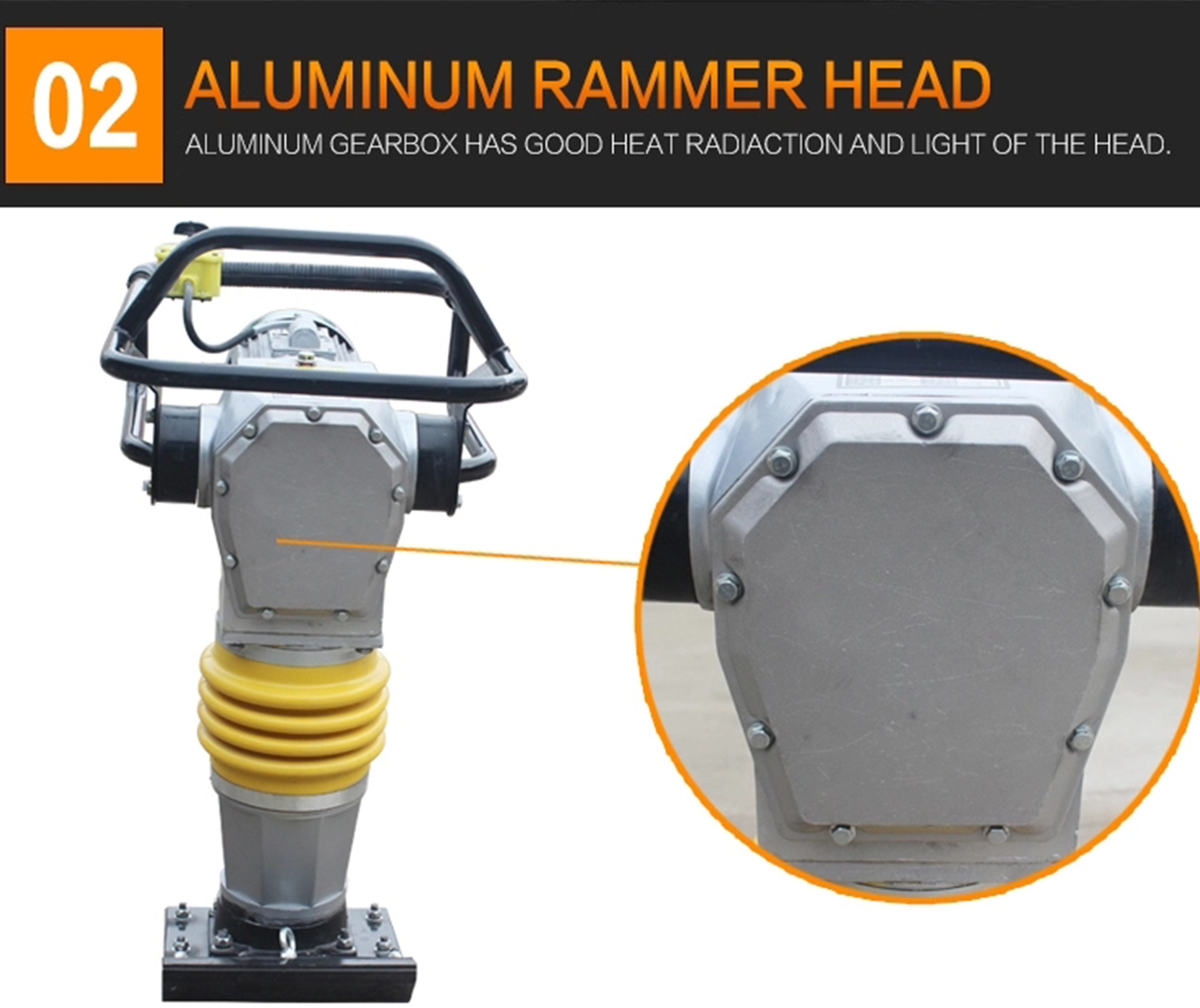

Aluminum gearbox has good heat radiaction and light of the head
Tamping rammer is suitable for compact the Cohesive soils--clay is cohesive; its particles stick together. Therefore, a machine with a high impact force is required to ram the soil and force the air out, arranging the particles. A rammer is the best choice.
Motor power | Electric Tamping Rammer | |||
Model | HCD80 | HCD90 | HCD80N | HCD80G |
Motor power | 2.2KW | 3.0KW | 2.2KW | 2.2KW |
Voltage | 380v~50HZ or 220v~50HZ | |||
Leap Height | 40 ~ 65 mm | 40 ~ 65 mm | 40 ~ 65 mm | 40 ~ 65 mm |
Tampring Force | 10KN | |||
Tampring Frequency | 612+/-50 times/min | |||
Plate size | 280*320mm | |||
Net Weight | 68kgs | 70kgs | 68kgs | 62kgs |
packing size | 610*520*970mm | |||
