concrete cutter
A construction equipment supplier of construction machinery solutions for 25 years.
Language
A construction equipment supplier of construction machinery solutions for 25 years.
1.Famous brand engine , excellent performance, easy to start-up;
2. Famous Italy variable pump, fixed displacement motor, steppless speed, easy to change direction;
3. Hydraulic diversion, efficient and convenient;
4. The whole machine could be controlled by instrument panel;
5. Comfortable driving seat;
6. Streamline surface, more beautiful;
7. Baking treated , anti-rust , anti-corrosion and beautiful;
8. Competitive price with good quality product.
As one of the professional road cutting machine manufacturers in China, ASOK has been continuously launching better products

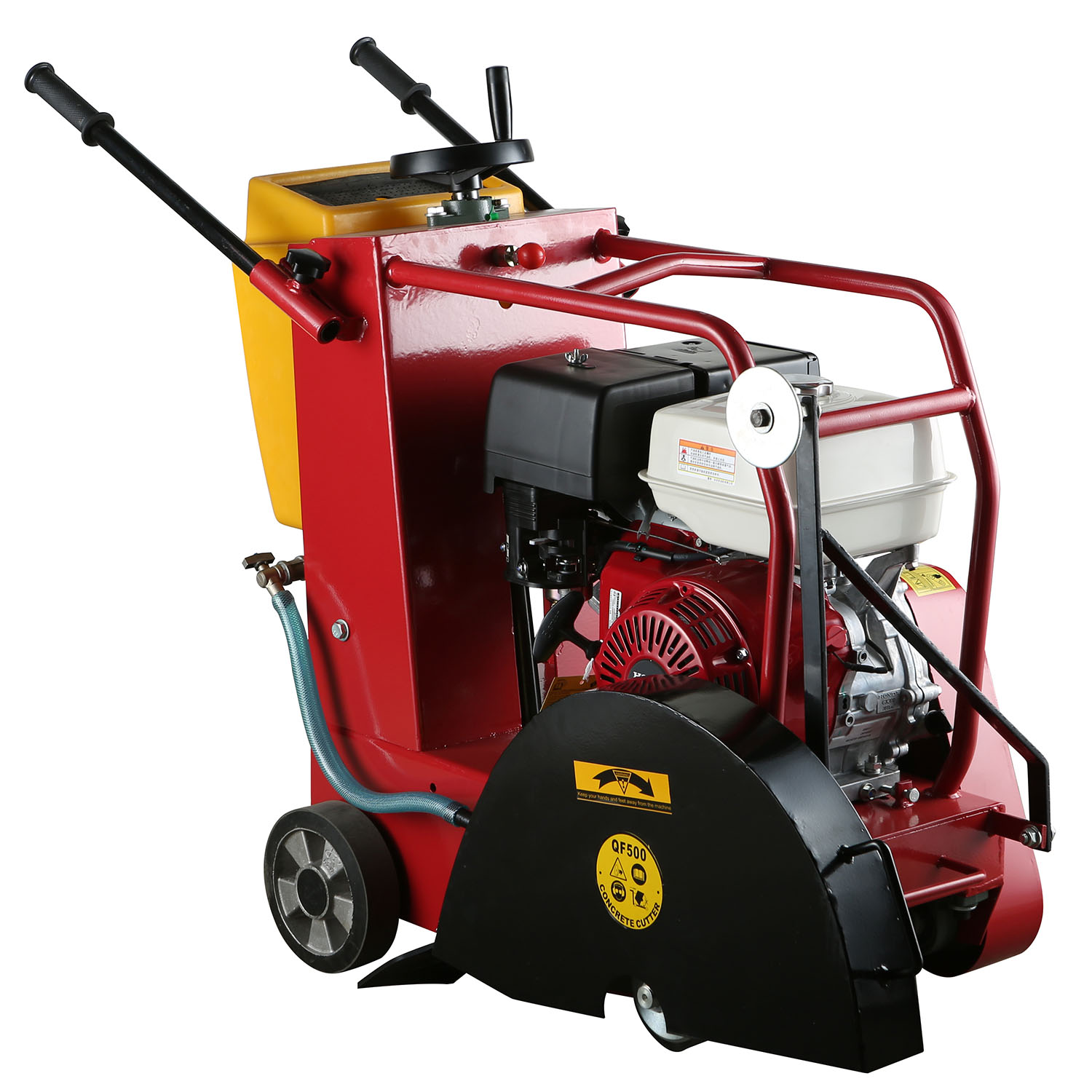

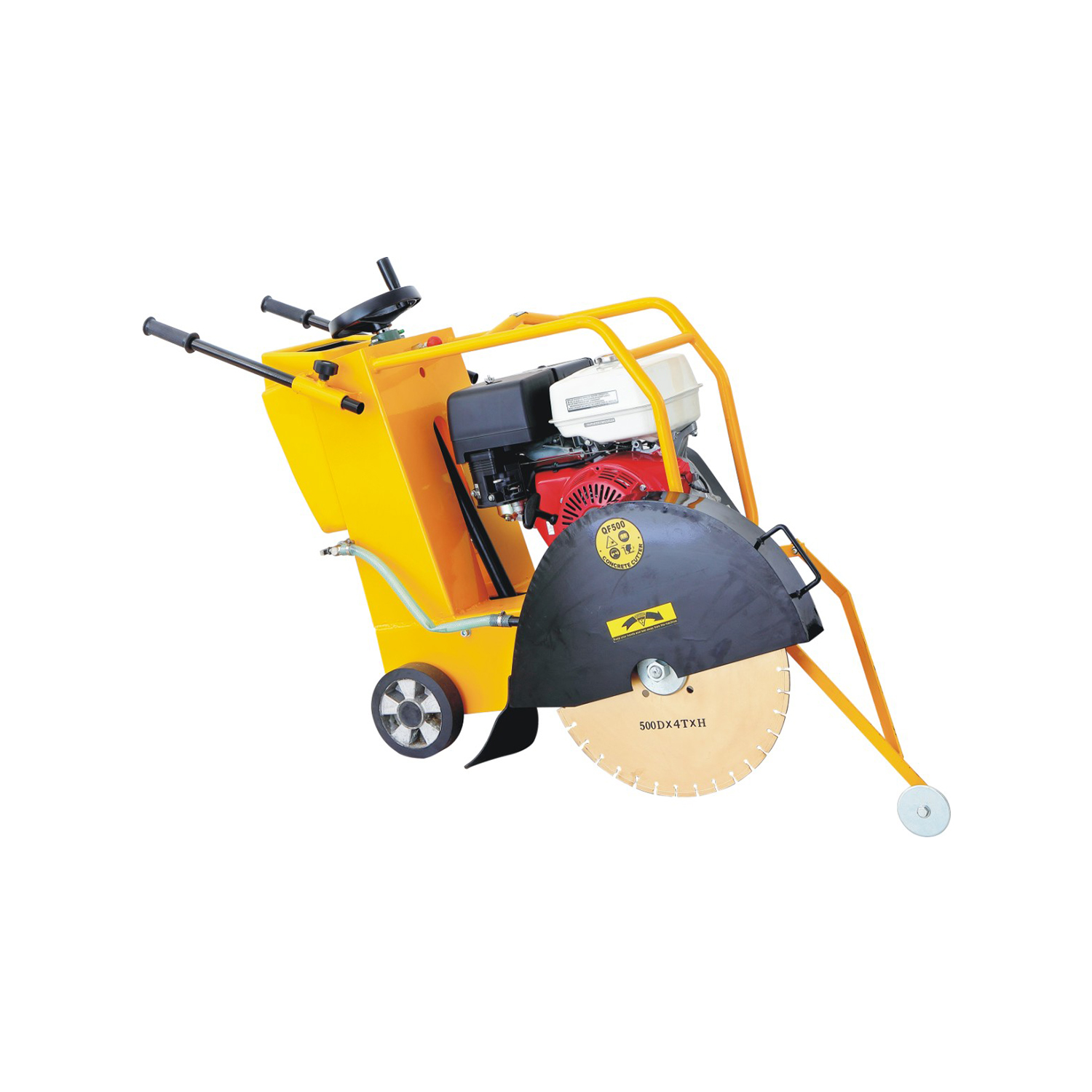

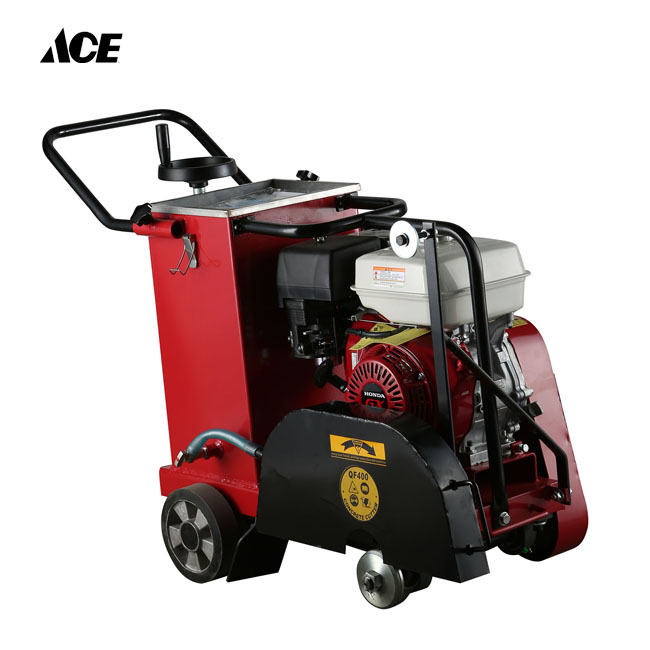

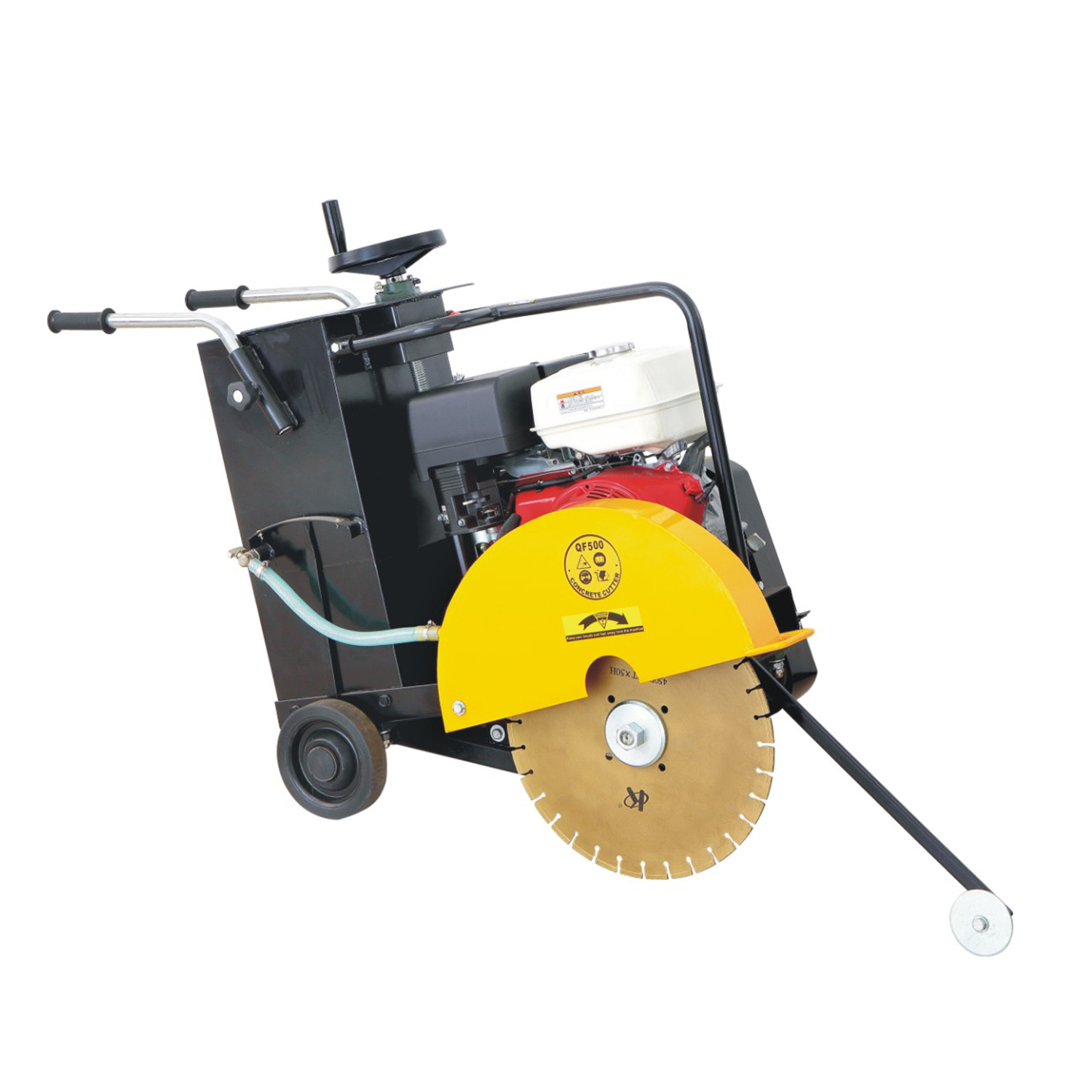

The ASOK 20in (500mm) Concrete Saw/Floor Saw is a powerful cutting machine designed for various applications. It offers a cutting depth of 180mm, making it suitable for tasks involving both asphalt and concrete pavement repair, cutting, and grooving in plazas.
The company takes quality and safety seriously and has obtained essential certifications like CE, UL, and GS. These certifications ensure that the product meets the necessary safety standards and regulatory requirements for use in various countries worldwide.
The concrete saw comes with options for the water tank. Customers can choose between a 35L polyurethane plastic water tank or a larger 45L steel water tank. Both options are designed to provide water for cooling and dust suppression during the cutting process, with the steel tank offering a larger capacity for longer operation without frequent refills.
In terms of power sources, customers have the flexibility to select from three optional engines:
186F Diesel engine 9hp
B&S XR1200 14HP
HONDA GX390 13HP
These engines offer varying power outputs, allowing users to choose the one that best suits their cutting requirements and preferences.
As a manufacturer of road cutting machines, ASOK continuously strives to provide improved products, ensuring that their offerings remain up-to-date with the latest technology and customer demands.
MODEL: | QF-500 | ||
ENGINE type | Single-cylinder,4-stroke,air-cooled,OHV,Gasoline enigne | ||
ENGINE Model | Petro engine, HONDA GX390 | Petro engine, LOCIN GF390 | Diesel engine , KAMA 186F |
POWER(HP) | 13.0HP | 13.0HP | 9.0HP |
Cutting Deepth | 150 mm ~ 170mm | ||
Dia of blade | 450mm ~500mm | ||
Running speed | 3200 rpm | ||
Depth Adjustment | Handle Rotating | ||
Driving | Manual Push | ||
Water Tank Capacity | 30L | ||
G.W./N.W. | 142kgs/120kgs | ||
packing size | 98*61.5*108 cm | ||
max cutting depth of 150mm
Survive on Quality”.We always attach great importance to quality controlling from the very beginning to the very end. We also obtain worldwide authentication ,such as UL, CE, GS and China Gold supplier and so on.
It comes with a polyurethane plastic water tank that is able to withstand wear and easy to be replaced.
Applications for: A variety of conrete,asphalt pavement,repairs,cutting ,grooving plaza stretching cutting
