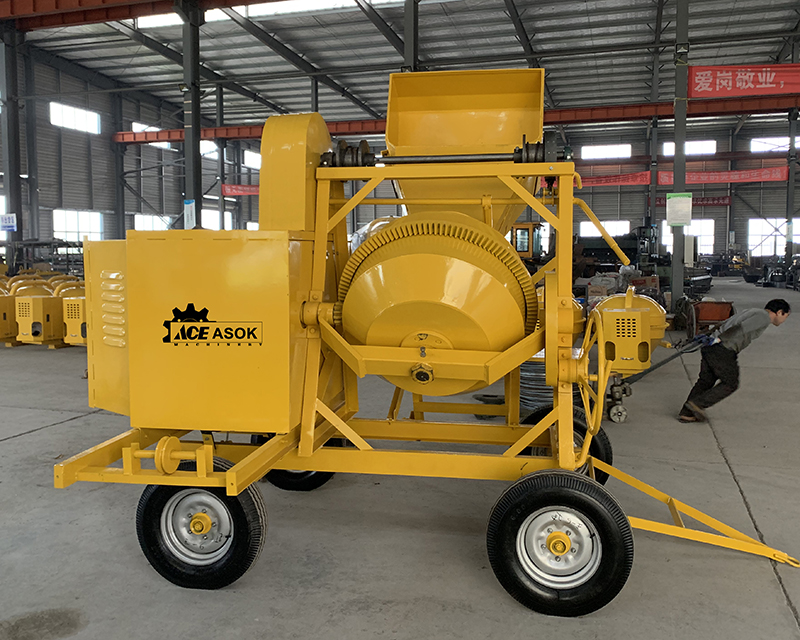

Concrete Mixer
VR
Mailn performance parametersDrum VolumeL510
Mixing CapacityL350
Concrete Outputm³/h20
Winch/Elevator
With winch
Lifting Heightm25
Wheel Size
6.50-16
Dimensions(L*W*H)cm230*135*275
WeightKg1700
EngineModel
CF1100
Type
Horizontal, Single Cylinder, Four-stroked and Water Cooled
Rated Rotating SpeedRPM2200
PowerHp16
Wire Rope SystemDiameter of Wire-ropemm12
Host MachineTotal Weightkg1700
Overall Size (L×W×H)mm2300 x 1350 x 2750

What are the advantages and characteristics of the mini truck concrete mixer?

Made by Q235 Wear resistant Steel Plate,The Drum Bottom thickness is 8 mm,Upper thickness is 3 mm.

Made by Q235 Wear resistant Steel Plate,The Drum Bottom thickness is 8 mm,Upper thickness is 3 mm.

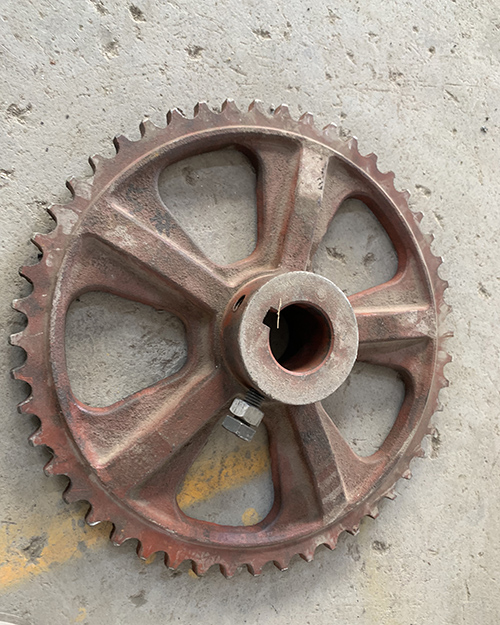

Rational Design,Power transmission by CHAIN. More Powerfully,Less Maintance, guarenteed the power transmission.



The Length of Wire Rope is 50m,thickness is 12mm。Canmake sure to lift the material.

up to 25 meters high.

Made by Q235 Steel Plate, which thickness is 1.8 mm, make sure it can protect the Transmission System from damaged . What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily, so the engine could have a longer service life.

Brand New Car wheels Model:6.50-16.

Make sure the movement of the machine is stable,safe and fast.

Brand New Car wheels Model:6.50-16.

Make sure the movement of the machine is stable,safe and fast.
