Customized CE certified HTD-750Y tracked mini concrete mixer manufacturers From China | ACE ASOK Machinery

This mini dumper is designed for high operating efficiency, featuring a Briggs&Stratton engine with 203CC-420CC displacement and air cooling. It supports multiple applications including construction, agriculture, and building. The CE certification ensures compliance with EU safety standards, providing market access assurance for buyers.

CE certified HTD-750Y tracked mini concrete mixer compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.ACE ASOK Machinery summarizes the defects of past products, and continuously improves them. The specifications of CE certified HTD-750Y tracked mini concrete mixer can be customized according to your needs.

SEND INQUIRY NOW

Product Introduction

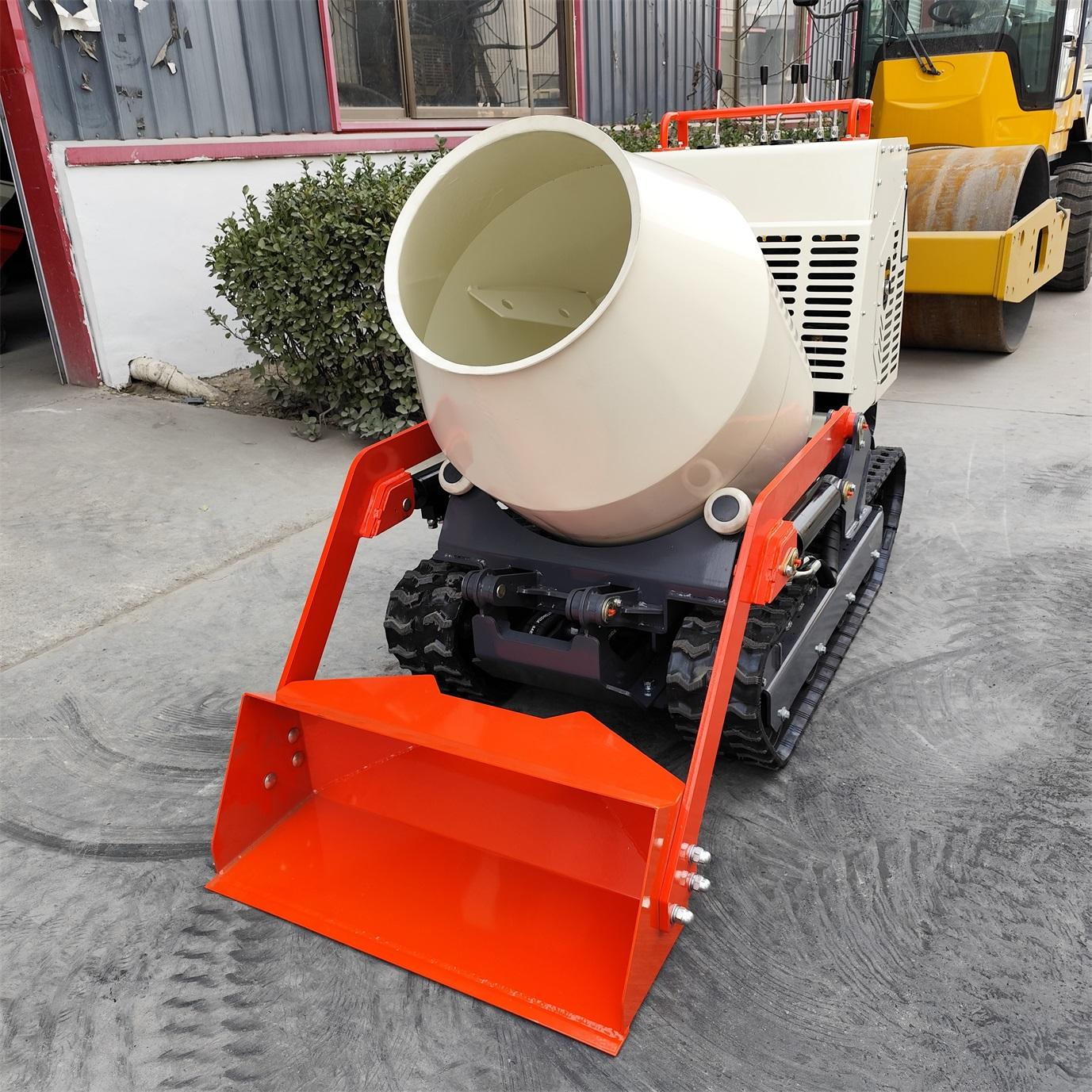

The HTD-750Y is a high-efficiency concrete mixing equipment focused on short-to-medium distance engineering operations. It integrates lightweight design, intelligent control and customized adaptability to accurately match the batch mixing and complex site operation needs of small and medium-sized projects. At the same time, it takes into account environmental compliance and cost-effectiveness, making it one of the core equipment with high cost performance in the current infrastructure field.

Product Parameters

Key attributes
Brand Name	ACE	Power(W)	13.5
Engine Capacity	420CC	Core Components	Engine
Place of Origin	Ningbo,China	Weight	750 kg
Warranty	1 Year	UNIQUE SELLING POINT	High operating efficiency
Color	Blue,Black,Green,Yellow White	Video outgoing-inspection	Provided
Machinery Test Report	Not Available	Dimension(LWH)	25009001500mm
Mixing tank diameter	720mm	Dumping method	Hydraulic Tipper
Rated Power	13.5HP/3600rpm	Transmission	Hydrostatic Track Drive System
Mixing tank length	880mm	Tank capacity	300
Packaging and delivery
Selling Units	Single item	Single package size	2600X1000X1400 mm
Single gross weight	600.000 kg
Specification
Product Name	Mini Concrete Mixer	Model	HT750
Engine Model:	Briggs&Stratton	Engine Type:	Single cylinder,OHV,4-stroke,air cooling
Displacement:	420CC	Rated Power:	13.5HP/3600rpm
Fuel Type:	92#Gasoline	Fuel Tank capacity	6.5L
Dimensional data
Machin size(Without pedal,without bucket)	18009001500mm	Chassis width:	850mm
Mixing tank data
Diameter of irrigation port:	460mm	Mixing tank length:	800mm
Mixing tank diameter:	720mm	Tank capacity:	300dm³
Dumping method:	Hydraulic Tipper	Mixing tank dumping angle:	100°
Track data&Bucket data
track width:	180mm	Track grounding length:	1000mm
Chassis ground clearance:	110mm	Bucket data
Chassis ground clearance:	110mm	Bucket length:	820mm
Leakage port length:	500mm	Leakage port width:	80mm
Walk
Walking Speed:	3km/h	Minimum Turning radius:	1300mm
Track gauge:	670mm	Climbing abillty:	25°

Product Features

Precise power and efficient mixing

Equipped with a customized National VI diesel engine, the hydraulic transmission efficiency exceeds 90%, and the mixing tank speed is stable at 5-12 r/min; the double helical blades are optimized by fluid mechanics, and the feeding and discharging speed reaches 1.2 m³/min, with a concrete residue rate of less than 0.5%.

Intelligent Control, Easy to Use and Manage

Equipped with an LCD control panel integrating speed adjustment, fault diagnosis, and other functions, it is easy for beginners to master. The CAN bus system achieves power-temperature control linkage, automatically recording operating data for easy cost accounting and management.

Lightweight and Compliant, Environmentally Friendly and Energy-Saving

The mixing tank is made of Q345B high-strength wear-resistant steel, and key chassis components are made of aluminum alloy, keeping the curb weight within compliance limits. Meeting China VI emission standards and featuring efficient exhaust treatment, it can operate freely in urban core areas, reducing fuel consumption by 12% per 100 kilometers.

Product Advantages

Efficiency Advantages	The integrated self-loading design reduces intermediate transfer steps; hydraulic unloading is fast and thorough; a travel speed of 3km/h allows for rapid relocation within the construction site.
Quality Advantages	CE certification ensures product compliance with EU safety standards and guarantees market access; the engine-driven pump offers high stability, low transmission loss, and low operating noise.
Usage Advantages	The tracked chassis minimizes ground damage and provides excellent mobility; operation is simple; multiple colors are available to meet individual customer needs.
