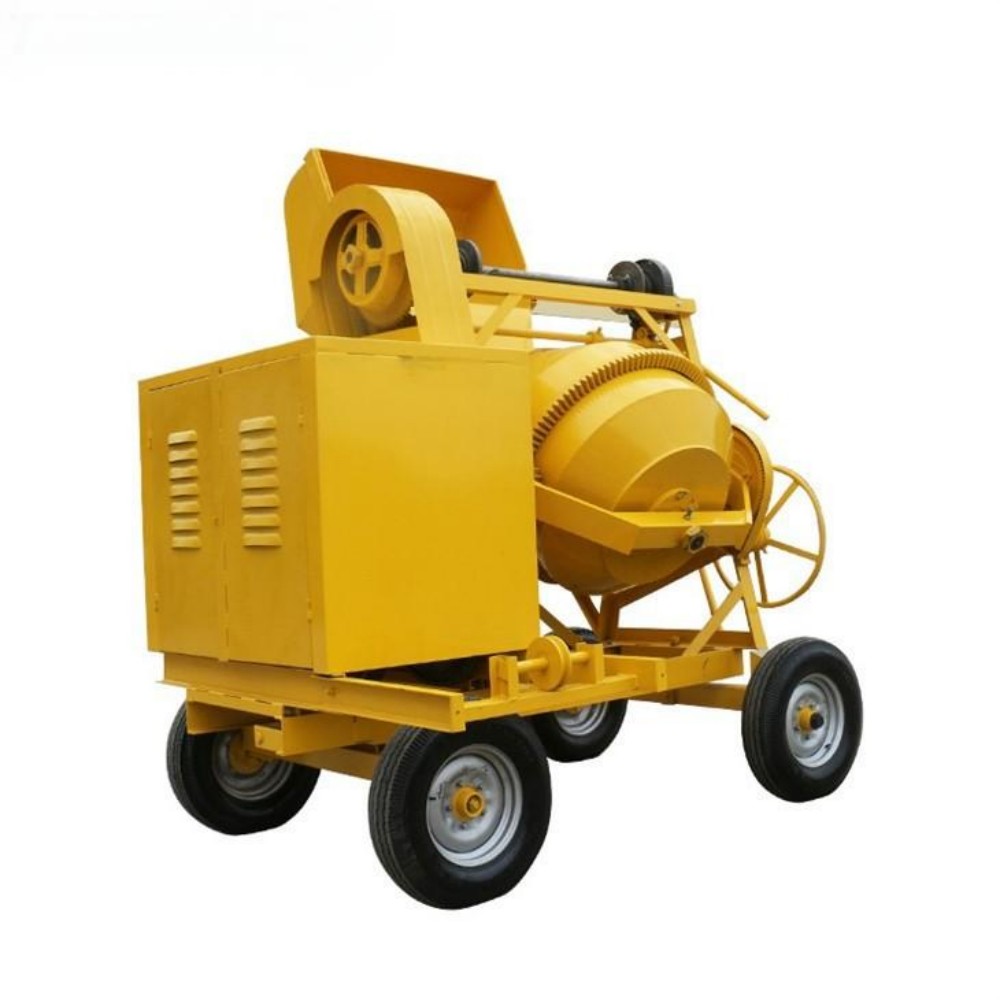

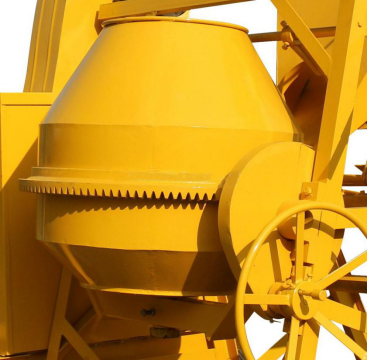

The A2-510LT Concrete Mixer with With Tilting Drum and Diesel Engine is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The A2-510LT Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
The A2-510LT is a self-loading concrete mixer equipped with an inclined mixing drum and a diesel engine, suitable for various construction environments. The equipment features a double-cone mixing drum design, supports forward and reverse mixing and unloading, and is suitable for mixing plastic and semi-dry concrete, with a maximum aggregate size of 60mm.

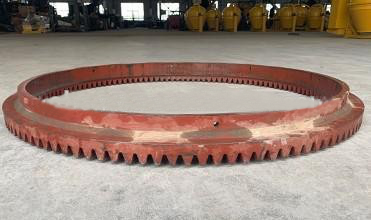

Heavily Duty of Drum Gear Ring,Weight to 68KGS, Not easy to wear out, make sure the machine to have a longer Service Life.
Rational Design,Power transmission by CHAIN. More Powerfully,Less Maintance, guarenteed the power transmission.

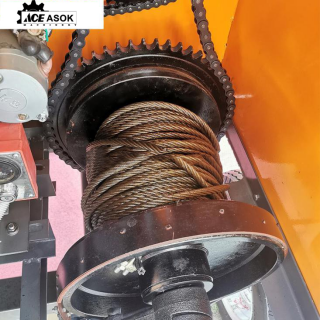

The Length of Wire Rope is 50m，thickness is 12mm。Can make sure to lift the material up to 25 meters high.

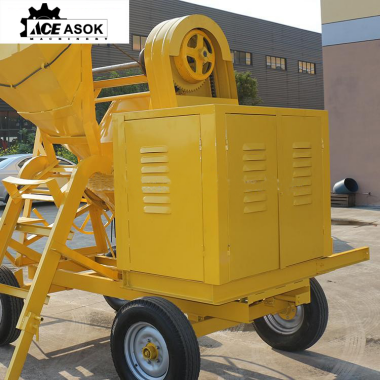

Made by Q235 Steel Plate, which thickness is 1.8 mm, make sure it can protect the Transmission System from damaged . What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily, so the engine could have a longer service life.
Our machine could fit with INDIA Brand engine or CHINESE Brand engine,To a greater extent to meet the needs of different customers.
| Model NO. | A2-510LT | Shotcrete Type | Semi-Dry |
| Structure | Rotor Type | Feeding Height | 1370mm |
| Certification | SO9001:2000,CE,ISO9001:2015 | Color | Yellow |
| Mixing Capacity | 350 L | Bags of Cement Per Batch | 1.5 Bag Cement |
| Drum Thickness | 3mm/4mm(Upper/Bottom) | Tyre Size and Number | 4*(4.00-12) |
| Packing Size | 1860*1860*2100mm | Specification | 2300(L)*1350(W)*2750(D)mm |
| Origin | Zhejiang,China | Production Capacity | 50PCS/Month |
| Type | Concrete Mixer | Machining Process | Welded Molding Machine |
| Productivity | 6-8m³/H | Vibrating Amplitude | 0.8mm |
| Condition | New | Drum Capacity | 510 L |
| Drum Rotation Speed | 25-30rpm | Drum Size | 950*900mm |
| Overall Size | 1960*1800*2100mm | Transport Package | Packed with Bubble Wrap Outside |
Mailn performance parameters | Mixing Capacity | L | 350 |
| Concrete Output | m³/h | 20 | |
| Winch/Elevator | With winch | ||
| Lifting Height | m | 25 | |
| Wheel Size | 6.50-16 | ||
| Dimensions(L*W*H) | cm | 230*135*275 | |
| Weight | Kg | 1700 | |
Engine | Model | CF1100 | |
| Type | Horizontal, Single Cylinder, Four-stroked and Water Cooled | ||
| Rated Rotating Speed | RPM | 2200 | |
| Power | Hp | 16 | |
| Wire Rope System | Diameter of Wire-rope | mm | 12 |
Host Machine | Total Weight | kg | 1700 |
| Overall Size (L×W×H) | mm | 2300 x 1350 x 2750 |
General construction sites: Suitable for concrete mixing operations such as foundation pouring and wall masonry for residential, office, and other civil buildings.
Road and bridge engineering: Meets the needs of highway and rural road paving, as well as foundation construction and pier pouring for small bridges.
Small precast component plants: Used for concrete mixing in the production of small components such as cement bricks, precast slabs, and manhole covers, ensuring stable component quality.
Other scenarios: Includes projects with moderate concrete requirements and flexible construction sites, such as farmland irrigation construction, small factory building construction, and emergency repair projects.
