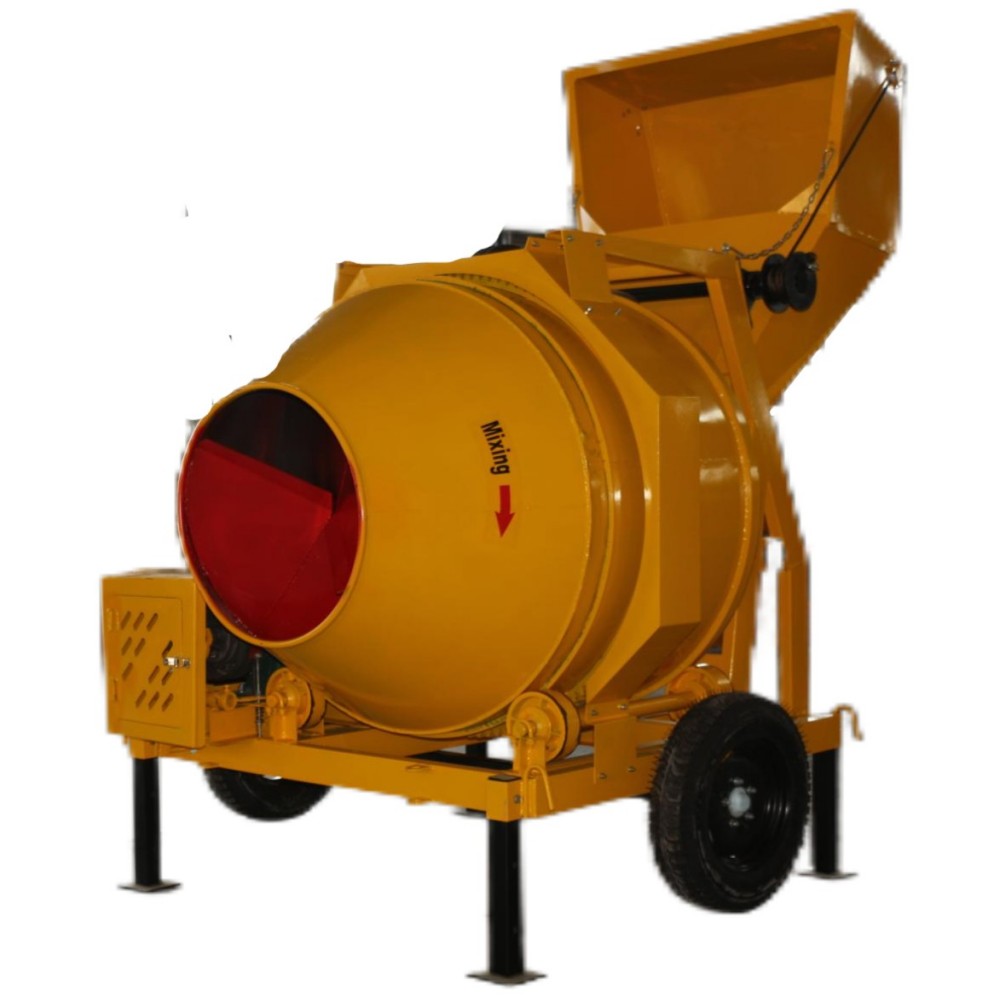

ACE Brand JZC350DEW Reversing Drum Diesel Hydraulic Concrete Mixer with High Quality

The JZC350-DEW is a self-falling concrete mixer powered by a diesel engine and equipped with a wire rope lifting hopper. Its double-cone drum design uses forward rotation for mixing and reverse rotation for discharging, making it suitable for mixing plastic and semi-dry concrete, with a maximum aggregate size of 60mm.

Each batch has a discharge capacity of 0.35 cubic meters, achieving a production efficiency of 10-14 m³/h, making it an ideal piece of equipment for ordinary construction sites, road and bridge projects, and small precast component plants.

SEND INQUIRY NOW

Product Introduction

The core of this equipment adopts a double conical drum design. Through forward rotation for mixing and reverse rotation for discharging, it ensures that the concrete is mixed evenly and discharged cleanly and efficiently. Each batch can discharge up to 350 liters, and the theoretical production efficiency can reach 10-14 cubic meters per hour.

Product Parameters

Model	JZC350DEW
Discharging Capacity	350 L
Loading Capacity	560 L
Productivity	10-14 m³/h
Bags of Cement per Batch	2 Bags Cement
Drum Thickness	6 mm
Drum Size	Φ1460*1820mm
Engine Option	Water-cooled Diesel Engine(Customer Can choose the following brand engine on this mixer)
	Brand 1:CHANGCHAI Brand ZS1100(16HP)
	Brand 2:CHANGFA Brand CF1100 (16HP)
	Brand 3:JIANGDONG Brand S1100(16HP)
Electric Motor Power	5.5 kw
Drum Rotation Speed	14RPM
Max. Size of Aggregate	60mm
Tyre Size	6.50-16
Total Weight	2000 kg
Overall Size (L×W×H)	3300×2300×3100 mm
Packing Size (L×W×H)	2200×2000×2500mm
Container Loading Plan	2 Sets Per 20GP, 6 Sets Per 40 HQ
Machining Process	Welded Molding Machine
Vibrating Amplitude	0.8mm
Displacement of Hydraulic Pump	25ml/R
Transport Package	Packed with Bubble Wrap Outside

Product Advantages

01
Highly adaptable
Powered by its own diesel engine, it can operate normally on sites with limited or remote power supply, without being restricted by location.
02
High mixing efficiency and uniform quality
The double conical drum and reverse discharge design ensure vigorous and uniform mixing, rapid discharge, and high productivity.
03
Durable and durable, low total cost of ownership
Key components are made of thickened steel and brand-name parts, making the machine robust and durable, reducing maintenance frequency and long-term operating costs.

04
Stable operation and easy mobility
Large guide wheels and brand-name tires ensure the stability and ease of movement during operation.
05
Simple maintenance, saving time and effort
Protective design reduces contamination and wear of core components; a high-flow water pump facilitates cleaning and water addition; daily maintenance is simple.
06
Quality assurance and worry-free procurement
The manufacturer has nearly 30 years of export experience, providing ISO9001 certification and PVOC certificate, ensuring reliable product quality.

Applicable Scenarios

General construction sites

Road and bridge engineering

Rural construction and water conservancy projects

Small precast concrete component factories
